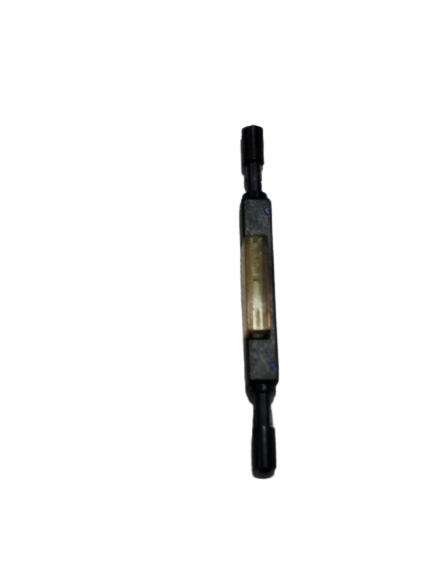

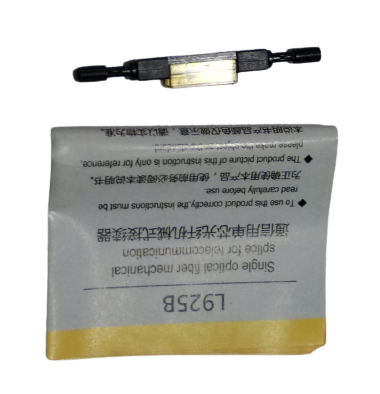

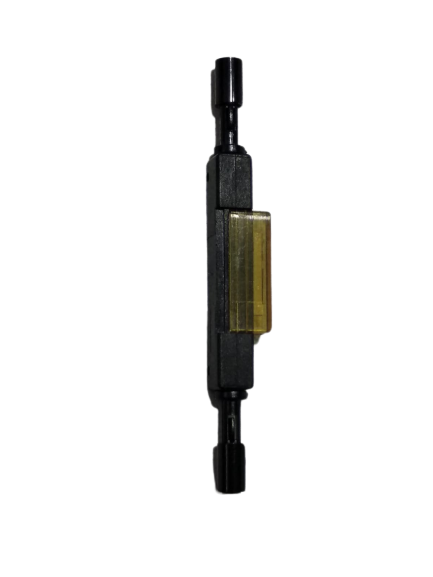

L925B Fiber Optical Mechanical Splicer can easily connect 250μm and 900μm diameter fiber. It is suitable for indoor cable connection. No need any adhesive and curing process.
– Fiber axial solid fit, reducing the performance degradation caused by the loss of matching fluid;
– Intermittent fit connection technology to ensure signal transmission;
– Bare fiber, tight-clad can be both used in the connector;
– Can be long-term used outside without loss value increased;
– High rate of success for installation and easy installation, the average connecting time is 150 seconds;
– It is applicable for optical fiber splicing and restoration for damaged lines.
Specifications:
| Fiber Diameter | 125um |
| Cost Diameter | 250 or 900um |
| Shelf Life | 30 years |
| Insertion Loss | < 0.3dB (1310nm&1550nm) |
| Reflectance | < -35dB form -40°C to 80°C(-40 to 176 OF)
< -55dB typical form -40°C to 80°C when used with 2650-ACK2 Cleaver Adapter < -60dB typical at room temperature |
| Tensile Strength | 4.4N (1.0Ib) minimum, 13.2N(>3.0Ibs) typical |
| Material | Engineering thermoplastic with aluminum alloy element, UL 94, V-O rating |
