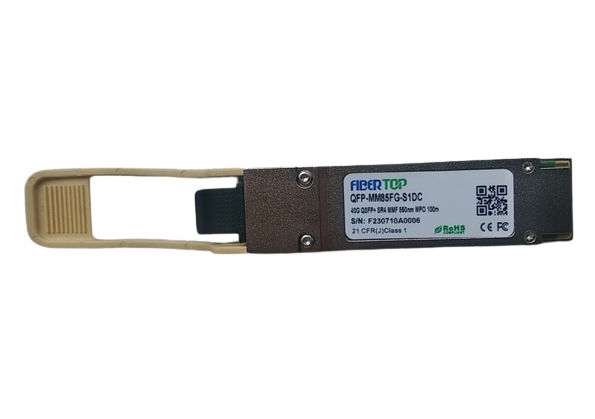

SFP MODULES (QFP-MM85FG-S1DC)

₹2,500.00

QSFP-4000-SR 40G SFP+ MMF module specifications

Form factor QSFP
Speed 4 x 10Gb/s
Optical connector MPO
Operating distance max. 100m
Power single 3.3V
Compliance MSA SFF-8431, RoHS
Operating mode multi-mode
Fiber type Multi-mode 50/125um OM3, MPO cable
Wavelength 850nm
Digital Diagnostic Yes (SFF-8472 compliant)

Features
 4 independent full-duplex channels
 Up to 11.2Gb/s data rate per channel
 MTP/MPO optical connector
 QSFP+ MSA compliant
 Digital diagnostic capabilities
 Up to 100m transmission on OM3
multi-mode ribbon fiber
 CML compatible electrical I/O
 Single +3.3V power supply
 Operating case temperature: 0~70oC
 XLPPI electric interface
 Maximum power consumption 1.5W
 RoHS-6 compliant
Applications
 Rack to Rack
 Data Center
 Infiniband QDR, DDR and SDR
 40G Ethernet



Categories: , ,
Add to wishlist

40G QSFP+SR4 MMF 850nm MPO 100m

The QSFP-4000-SR4 is a parallel 40Gb/s Quad Small Form-factor Pluggable (QSFP+) optical module. It provides increased port density and total system cost savings. The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gb/s operation for an aggregate data rate of 40Gb/s on 100 meters of OM3 multi-mode fiber. Tested compatible on various 40G Ethernet switches from Cisco, Juniper and Edge-Core and other manufacturers.
