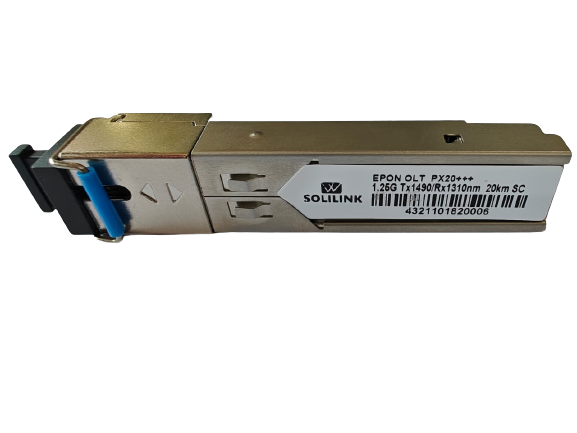

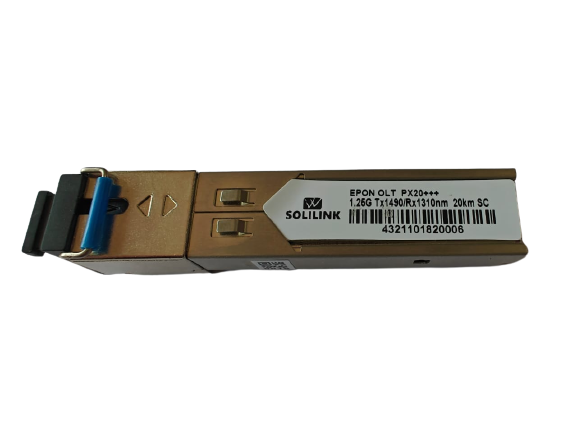

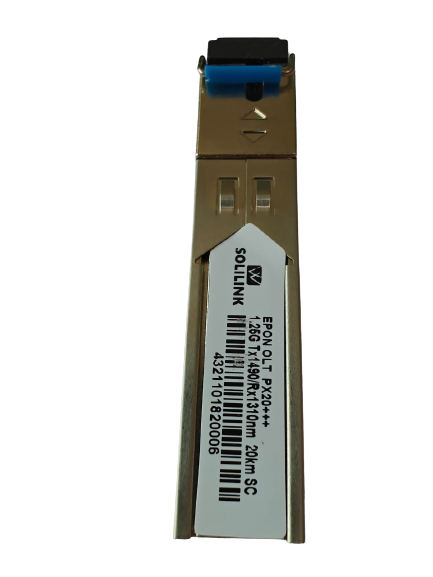

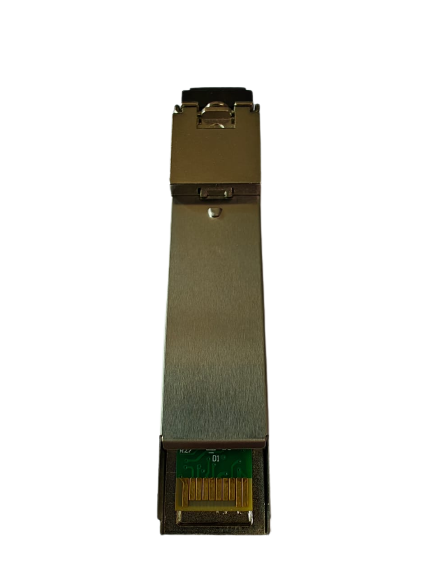

SFP MODULES (EPON OLT20*+++) (1.25G SFP BIDI TX 1490nm/RX 1310nm SC DDM 20km)

₹600.00

Specifications
Part Number
ESFP-43-20
Vendor Name
FS.COM
Data Rate
1.25G
Fiber Mode
Single Mode Fiber (SMF)
Types of Interface
SC
Types of Laser
DFB-LD
Operating Temperature
Standard 0~70°C
Operating Humidity
0%~90% RH (no condensing)
Transmission distance
20km
Modes of Communications
Simplex
Wavelength
1490nm/1310nm
Receiver Sensitivity
<-28dBm
Extinction Ratio
>9dB
Saturated Optical Power
6dBm
Form Factor
GEPON SFP ONU/OLT
Power Consumption
<1.5W
Hot Pluggable Times
200
Average Output Power
2~7dBm

Features

Low Cost-effectivenes EPON Network Solution
EPON network is a high-performance, reliable, and secure transmission solution. EPON network provides high-bandwidth transmission to meet the high flow requirements of end customers.
Categories: , ,

EPON OLT SFP 1490nm-TX/1310nm-RX 1.25G-TX/1.25G-RX 20km DDM SC SMF Transceiver Modules

Product Highlights

Low-cost DFB Laser for Reliable Network
Data rate up to 1.25Gbps, Low Power Consumption＜1.5W
Combination of EPON and 10G EPON optical transceiver in an SFP package
Compliant with ITU-TG.9807.1 and SFP MSA
EMI Shielding FCC ClassB Compliant
