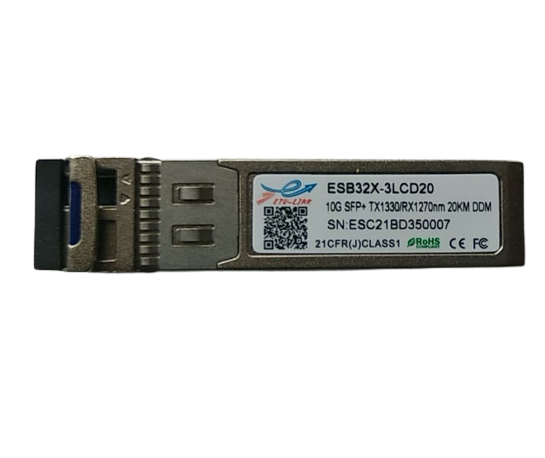

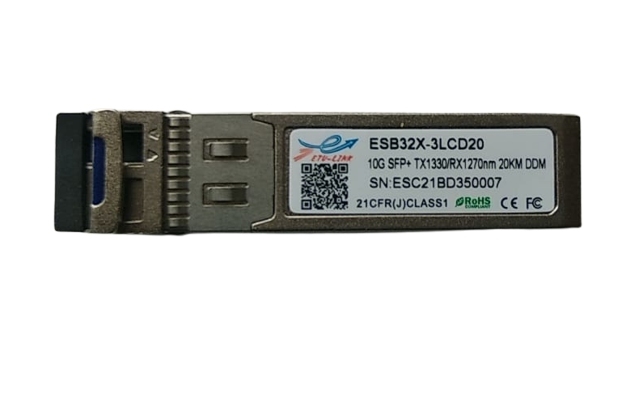

SFP MODULES (10G SFP+TX1330/RX1270nm 20KM DDM)

is hot pluggable Small-Form-Factor SFP+ Bi-directional transceiver module, which is designed for 10Gb/s duplex optical data communications application. The SFP+ BiDi module features a highly reliable 1330nm DFB transmitter and 1270nm PIN photo-detector into LC Simplex optical connector, which provides 20km link distance over single-strand single mode fiber.

This SFP+ BiDi transceiver module also provides a unique enhanced digital diagnostic monitoring interface(DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. The transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel. The transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
