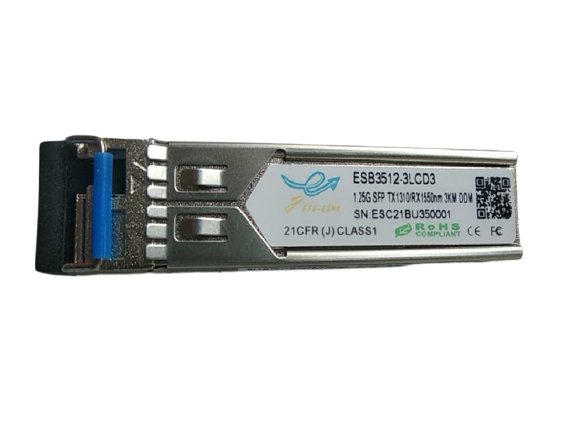

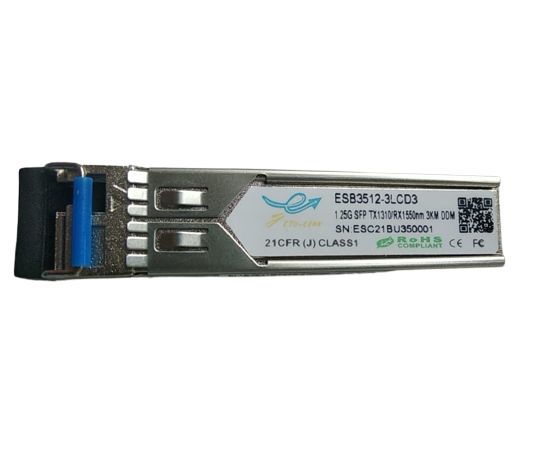

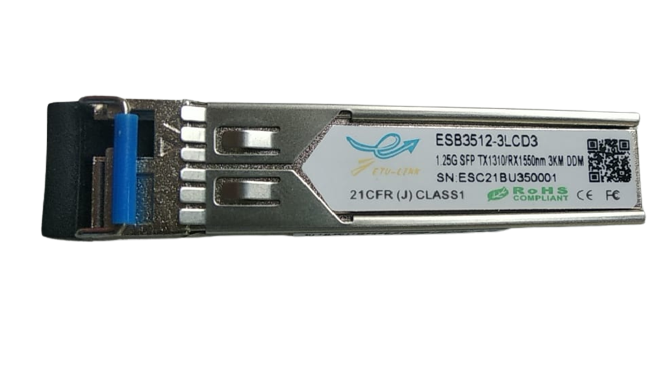

SFP MODULES (1.25G SFP TX1310/RX1550nm 3KM DDM)

400.00

Features
 Dual data-rate of 1.25Gbps/1.063Gbps operation
 1310nm FP laser and PIN photodetector for 3km transmission
 Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
 Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
 Compatible with SONET OC-24-LR-1
 Compatible with RoHS
 +3.3V single power supply
 Operating case temperature range:
0 °C to +70 °C (Commercial)
-40 °C to +85 °C (Industrial)

Applications
 Gigabit Ethernet
 Fiber Channel
 Switch to Switch interface
 Switched backplane applications
 Router/Server interface
 Other optical transmission systems

1.25Gbps SFP Bi-Directional Transceiver, 3km Reach
Tx1310nm/Rx1550nm

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 3km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements
