Features:
Lighting function.
Auto calculate angle of AZ, EL.
7.4V/800mAh Li-ion battery included.
Supports DISEQC 1.0/1.1, 0/22khz tone.
Sound and light alarm for locking signal.
Software upgrade by PC.
Digital meter for signal strength and quality.
Beep integrated.
LNB short protect.
Support mechanical compass.
Easy to operate.
CATV

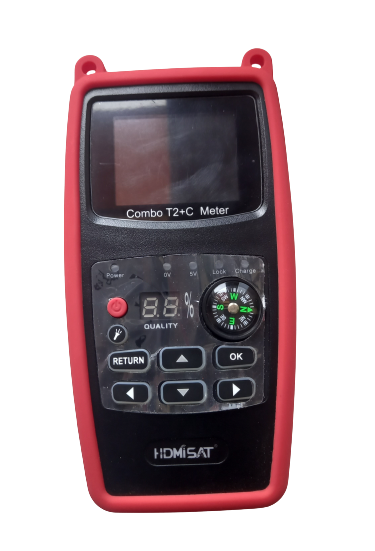

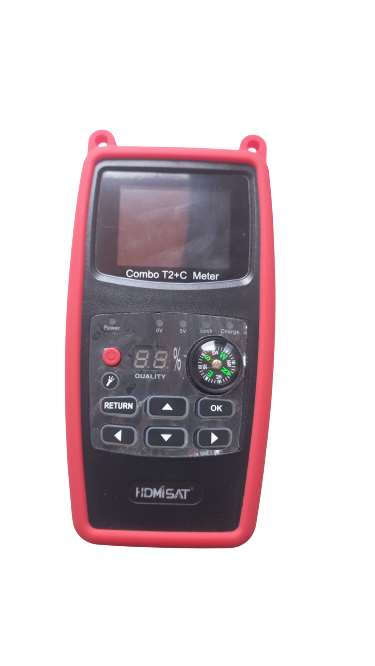

Satellite Signal Finder Digital Satellite Finder Meter
₹4,500.00
Specifications:
Plug Type: AU / EU / UK / US (Optional)
Material: ABS
SATELLITE INPUT/DEMODULATION:
Connector Type: F type
Input Frequency: 950-2150MHz
Signal Input Level: -65~-25dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, IMax 300mA
Demodulation Type: QPSK / 8PSK / 16APSK / 32APSK
Symbol Rate: 2<rs<45mband(scpc br=””>
LCD FEATURES:
LCD Type: TFT positive transflective
Number of Dots: 240(RGB)*320
Active Area: 36.72 * 48.96mm (W*H)
DATA SERVICE PORT:
Connector: USB
Data Protocol: USB to RS-232
POWER SUPPLY:
Li-ion Battery: 1 * 7.4V, 800mAh
Adapter: DC12V, 1A(Output), AC100-240V, 50/60Hz(Input)
Power Consumption: Max. 5W
Item Size: 17.3 * 9.3 * 4cm / 6.81 * 3.66 * 1.57in
Item Weight: 488g / 17.21oz
Package Weight: 656g/ 23.14oz
Package Size: 24 * 20.5 * 6cm / 9.45 * 8.07 * 2.36in</rs<45mband(scpc>
