ROUTER BOARD

4,000.00

Specifications

Details
Product code RBM11G
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Dimensions 105 x 110 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $49.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1

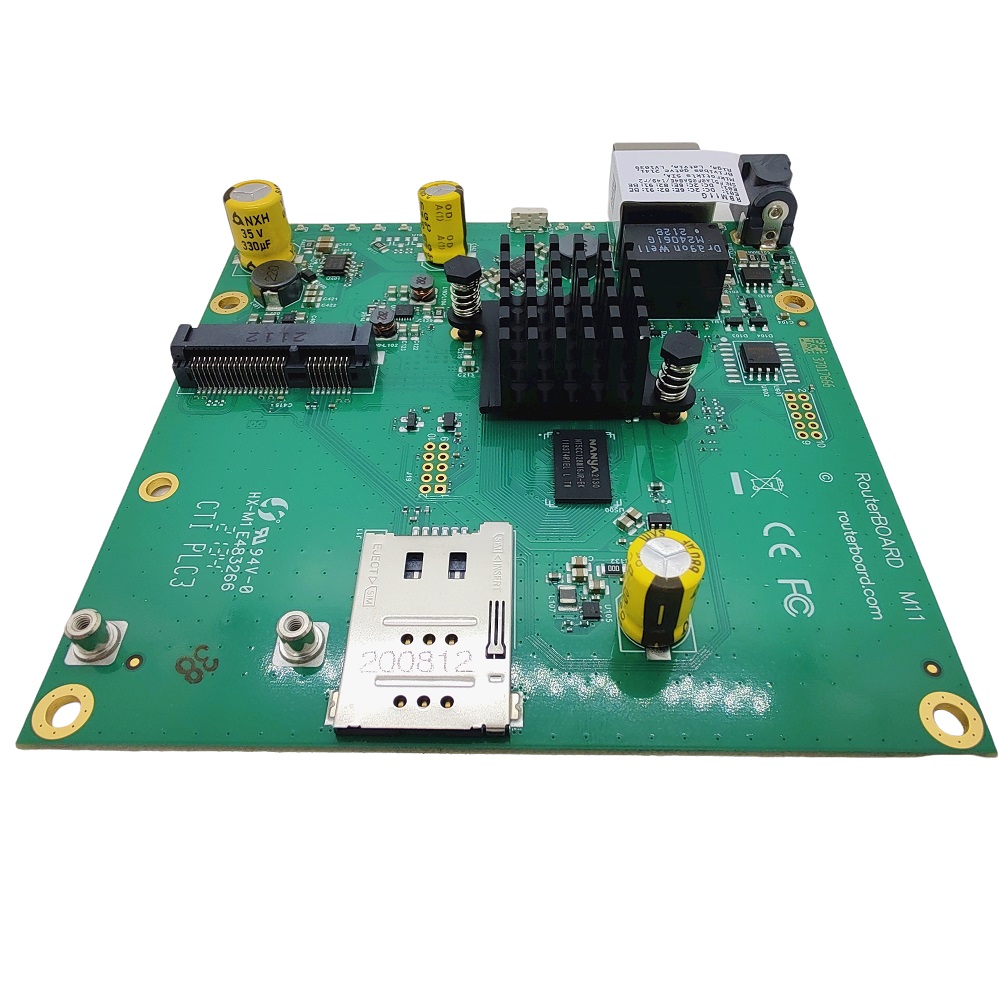

The RBM11G is a fully featured RouterBOARD device perfect for using with your own enclosure or building a custom solution. It uses the same square PCB and mounting holes as it’s predecessors, you can simply swap out the older models with the brand new RBM11G.

The M11 features a new MediaTek dual core CPU running at 880MHz, a miniPCIe slot for using with a WiFi module of your choice, or with a 3G/ LTE modem (SIM slot provided). The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
