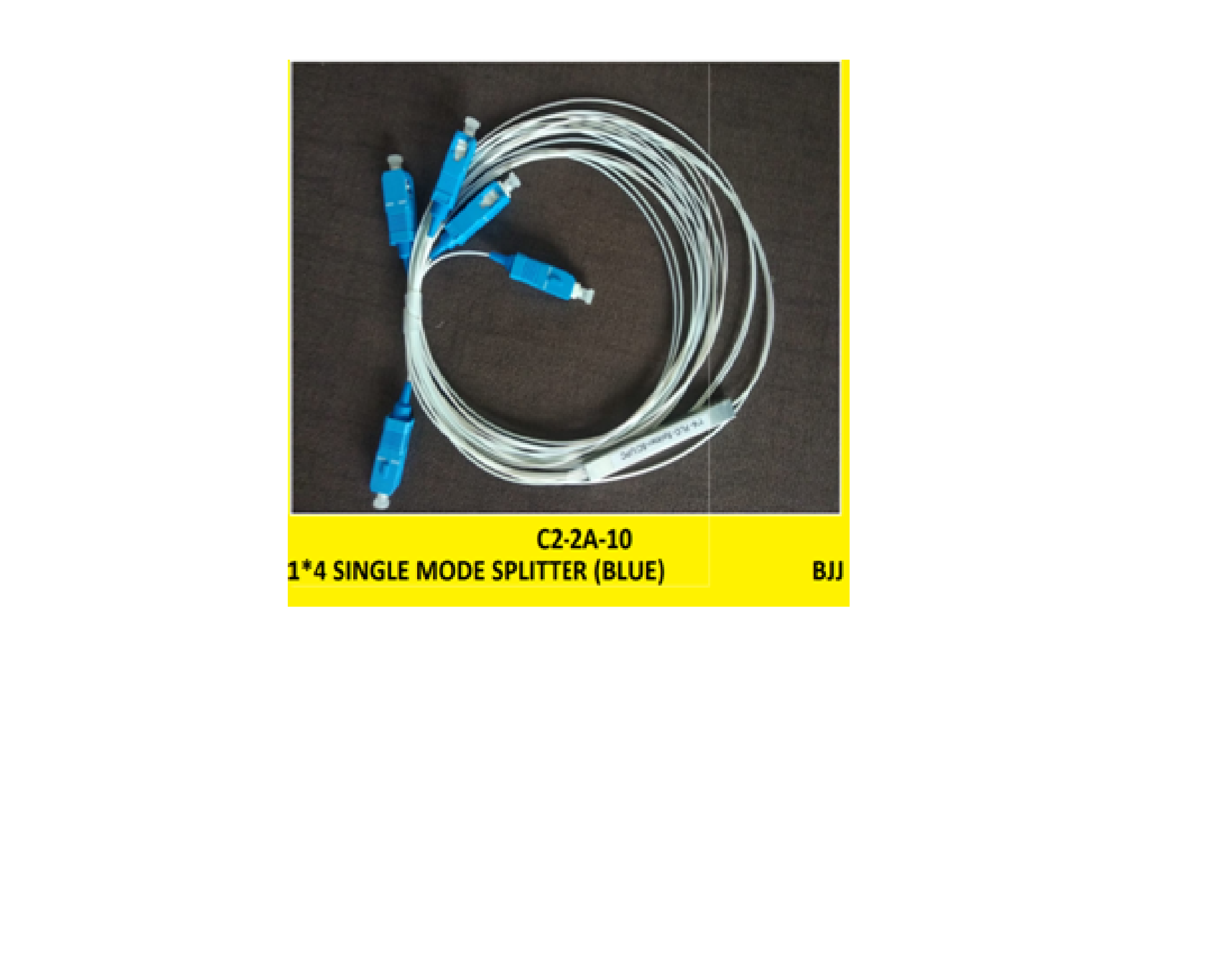

PLC SPLITTERS WITH CONNECTOR 1X4 SINGLE MODE SPLITTERS -UPC

200.00

Specifications :
Package Style
Mini Module
Configuration Type
1x 4
Fiber Grade
G.657A1
Fiber Mode
Singlemode
Connector Type
SC/APC
Split Ratio
50/50
Input/Output Fiber Diameter
900μm
Input/Output Fiber Length
1.5m
Insertion Loss
≤ 7.3dB
Return Loss
≥ 55dB
Loss Uniformity
≤ 0.6dB
Directivity
≥ 55dB
Polarization Dependent Loss
≤ 0.2dB
Temperature Dependent Loss
≤ 0.5dB
Wavelength Dependent Loss
≤ 0.3dB
Operating Bandwidth
1260~1650nm
Steel Tube Dimensions (HxWxD)
0.16″x1.97″x0.28″ (4x50x7mm)
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)
1x 4 Blockless Fiber PLC Splitter, Singlemode, 900μm Fiber, SC/APC Connector
Split Input Signal Evenly into 4 Output Ports
≤7.3dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss
Fully Passive Optical Branching Device
Compact Housing Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.
1260~1650nm Broad Operating Wavelengths
G.657A1 Bend Insensitive Fibers for Low Bending Loss
Commonly Found in POL, Datacom, LAN, CATV, LCP, FTTx and More Applications

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It’s mainly used for various connection and distribution boxes or network cabinets.
