Description

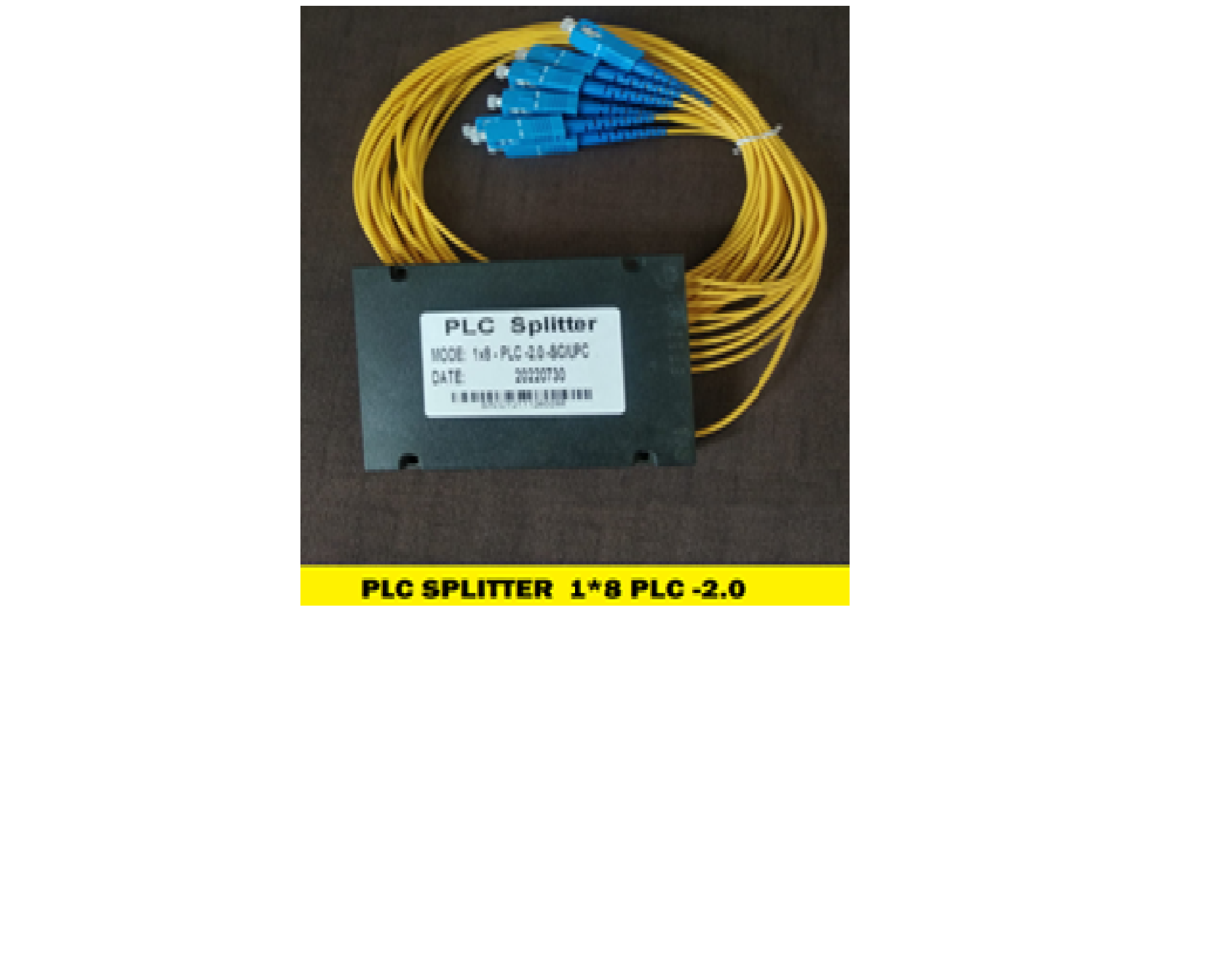

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
It‘s mainly used for various connection and distribution boxes or network cabinets.
Fiber Optic splitter is also called optical splitter,is one of the most important passive devices in optical fiber link,is with multiple inputs and multiple output end of the optical fiber connected devices.The fiber optic splitter by the light spligtting principle can be divided into the fused biconical taper(FBT) and planar wavegulde type(PLC).
The high performance 1×N or 2×N, single mode, passive power splitter based on PLC technology. The device uniformly splits the optical signals present at the input ports to multiple output ports. Power splitters can also be used in the reverse direction in order to combine multiple optical signals present at the output ports into the input ports.
| Product Name: | Abs Splitter | Fiber Type: | Single Mode,2.0mm |
|---|---|---|---|
| Connector Type: | SC/UPC | Directivity: | ≥55dB |
| Insertion Loss: | ≤10.5 | Fiber Length: | Customized |
| Operator Temperature: | -40~+85℃ | Wavelength: | 1260-1650nm |
| Application: | FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution | ||
| High Light: |
steel tube plc splitter, passive fiber optic splitter |
||
