PLC SPLITTERS

800.00

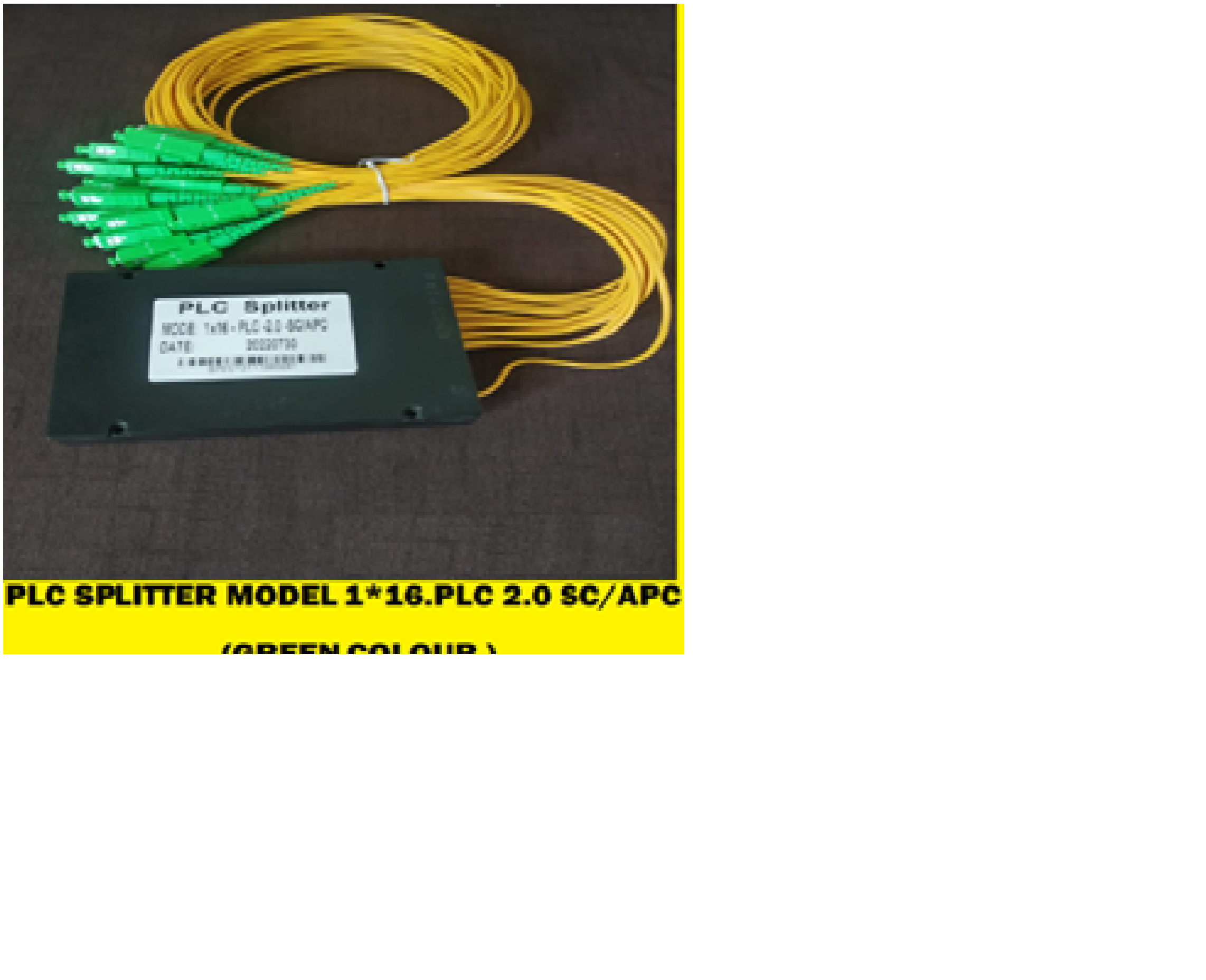

1×16 PLC Splitter Features & Specifications

  • High Quality PLC design features a protective metal casing around the fibers
  • PLC splitting mechanism divides input signal into equal parts across all output fibers
  • 900µm loose tube fiber for easy stripping, splicing, or terminating
  • Operating & Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Wavelength: 1260nm / 1650nm



1×16 PLC Splitter Applications

  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Categories: ,

PLC Splitters are Singlemode splitters with an even split ratio from one input fiber to multiple output fibers. This PLC Splitter is a 1×16, with 1 input and 16 output fibers with an even split ratio across all fibers regardless of input wavelength. PLC Splitters are available with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization.

A PLC splitter is based on PLC (Planar Lightwave Circuit) technology and is suitable for high density applications. PLC splitters make it possible for the transmission power at each splitter output port to be the identical, simplifying network architecture and lowering expenses. By allowing a single PON Interface to be shared by multiple subscribers, optical splitters have played an essential role in passive optical networks. The optical fiber splitter divides the fiber optic light into numerous sections at a specific ratio. The PLC splitter takes minimal distortion during usage due to its small form and bending insensitive cables, ensuring stable optical transmission.

Product Specification

Material PVC
Cable Diameter 1 Meter
Connector Type 1X16 Fiber Optic
Packaging Type Box
Operating Bandwidth 1260-1650 nm
Storage Temperature -40 to 85 Degree
