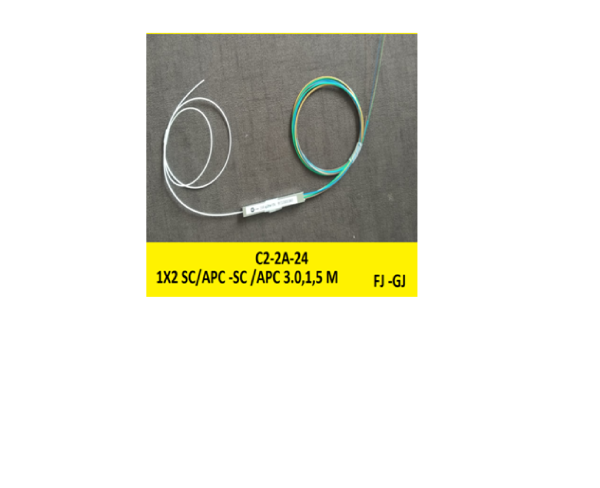

SINGLE MODE PLC SPLITTER COLOUR 1X2 SC/APC -SC/APC 3.0,1,5M

PLC (Planar Light wave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. This PLC Splitter is a 1×2, with 1 input and 2 output fibers with an even split ratio across all fibers regardless of input wavelength. PLC Splitters are availble with 900µm loose tube single mode fiber. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Planar Lightwave Circuit is a more recent technology. PLC splitters offer a better solution for applications where larger split configurations are required. To achieve this, waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer very accurate and even splits with minimal loss in an efficient package. Product Features High quality PLC design features a protective metal casing around the fibers PLC splitting mechanism divides input signal into equal parts across all output fibers 900µm loose tube fiber for easy stripping, splicing, or terminating Specifications Operating Wavelength (nm) : 1260-1650 Fiber Type : G657A1 Connector Type : Without Connector Fiber Length : 1M Wavelength (nm) : IL(dB) @1310 | @1550, PDL(dB) @1310 | @1550, RL(dB) @1310 | @1550 Applications – EPON/GPON – FTTX – Passive Optical Networks – CATV, LAN, WAN – Test Instrument

About this item

• PLC splitting mechanism divides input signal into equal parts across all output fibers
• High quality PLC design features a protective metal casing around the fibers
• 900µm loose tube fiber for easy stripping, splicing, or terminating
