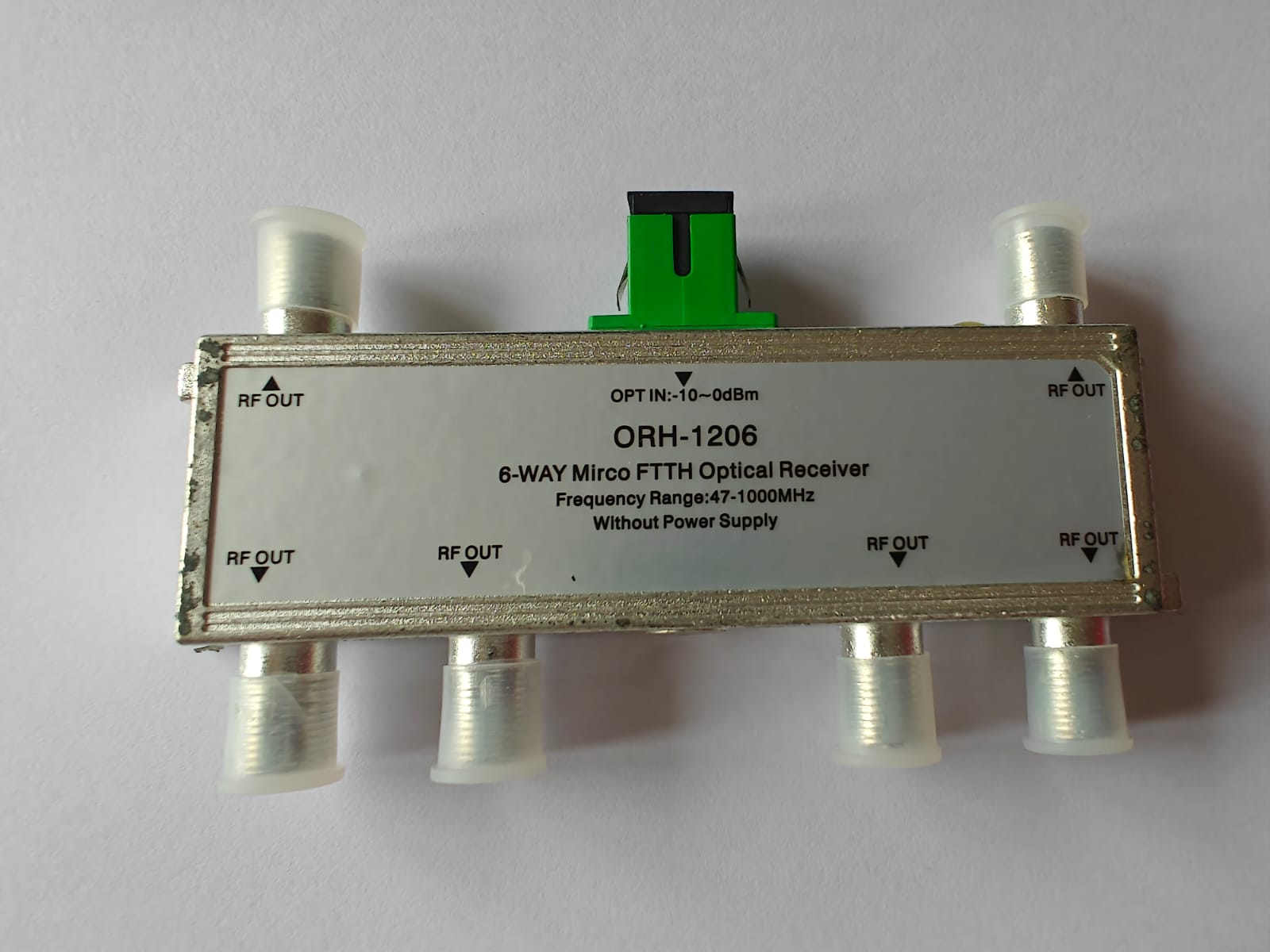

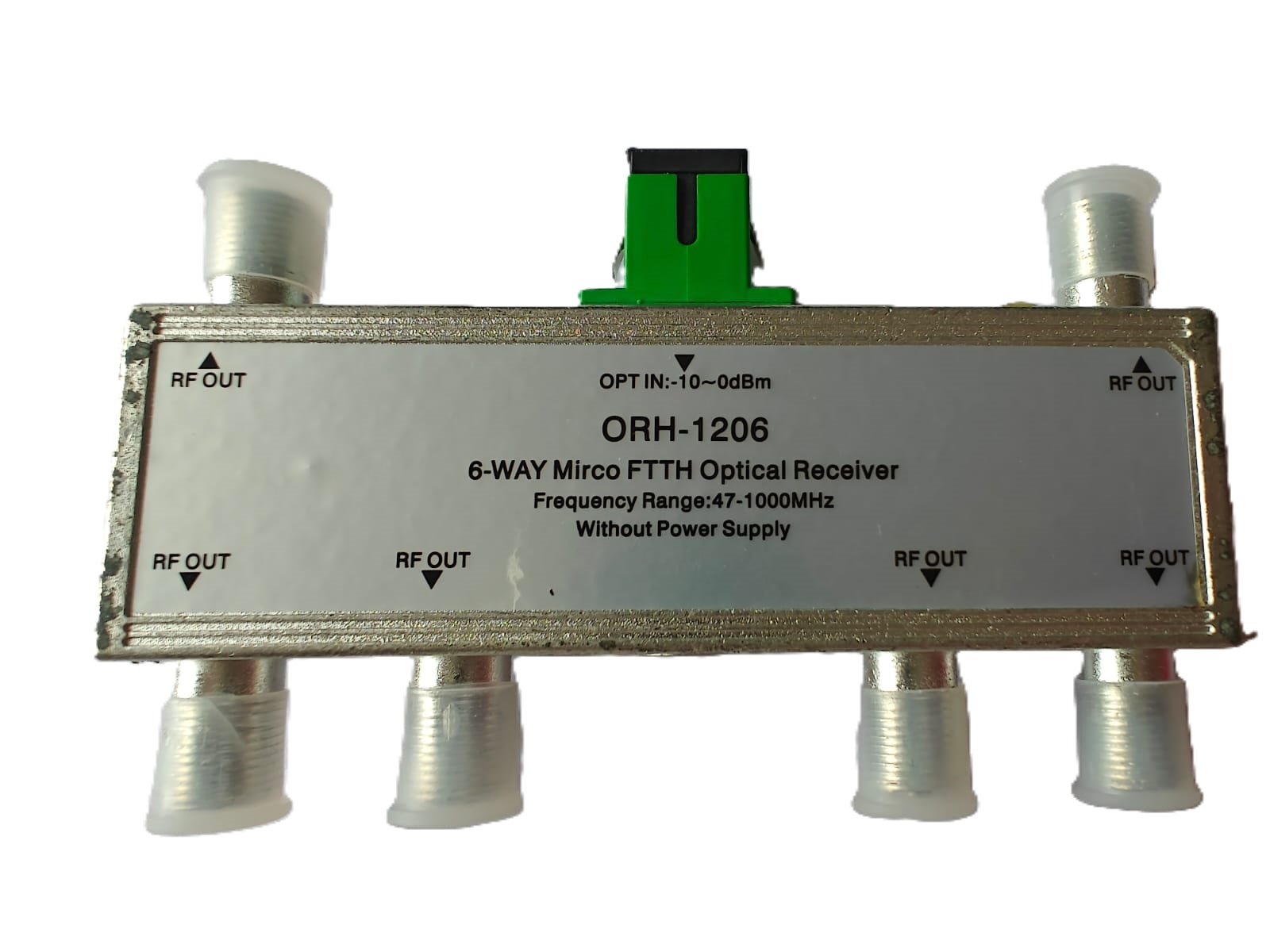

OPTICAL PASSIVE NODE 6-WAYS ORH-1206 (FTTH OPTICAL RECEVIER)

450.00

Categories: ,

Features:

  • Designed for FTTH networks
  • No power required
  • Zinc die-cast housing, rickel-plated
  • Small size and easy installation
Specification:

Optical Parameter:
Optical Connector SC/APC
Responsivity ≥0.9A/W
Input Optical Power -10~0dBm
Optical Return Loss ≥45dB
Input Wavelength Without filter 1260~1600nm
With filter 1550±20nm
Optical Fiber Type Single mode
RF Parameter:
RF Connector F-female
Frequency Range 47~1000MHz
Flatness ±1dB
Output Level ≥60dBuV @ -1dBm
Output Impedance 75Ω
