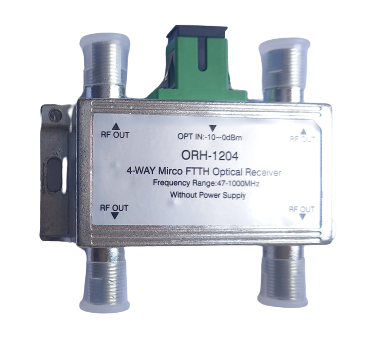

OPTICAL PASSIVE NODE 4-WAYS ORH- 1204 (FTTH OPTICAL RECEVIER)

₹350.00

Product Description

Product Description* Design for FTTH fiber to the home networks
*Without the power supply can work normally
* Zinc die cast housing, nickel plated
*Smaller size and easier installation

RF Connector F-female Optical Return Loss >=45dB
Optical Connector SC/APC Input Wavelength 1260-1600nm
Responsivity >=0.9A/W Optical Fiber Type Single Mode
Frequency Range 47-1000Mhz

Additional Information

Item Code R3-3B-02
Delivery Time ONTIME
Categories: ,

Mini CATV FTTH Optical Receiver ORH-1204 47-1000MHz,4 way passive FTTH negative optical receiver

Specifications:

  • RF Frequency Range: 47-1000MHz
  • Output level: Above 65dBuV
  • Optical connector: SC APC
  • Input Wavelength: 1100–1600nm
  • Input Optical Power: -15–0dbm
  • Connector Type: SC/APC
  • Brand Name: UVR
  • Application: FTTH Network
