This is -70~+10dBm / 10mW Visual Fault Locator. Output light power of red light source: > 10mW>30mW. Fiber optic adapter of red light source: SC/ST/FC. Standard wavelength (nm): 850/980/1300/1310/1490/1550/1625.
FTTH, POWER METER, Wireless Systems

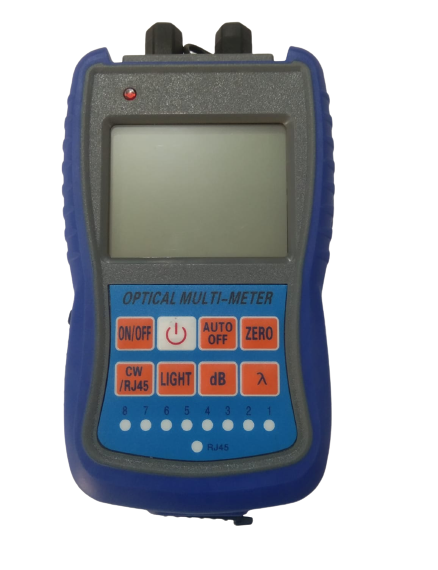

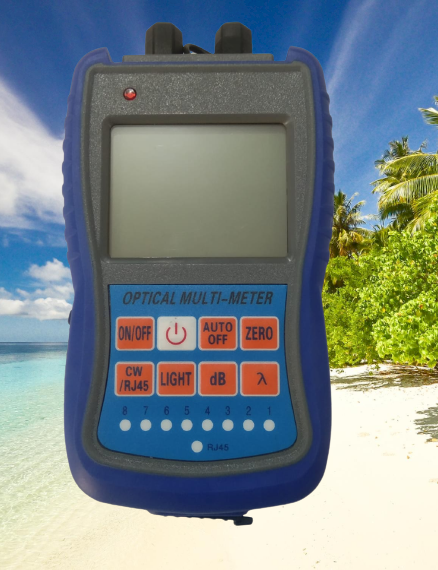

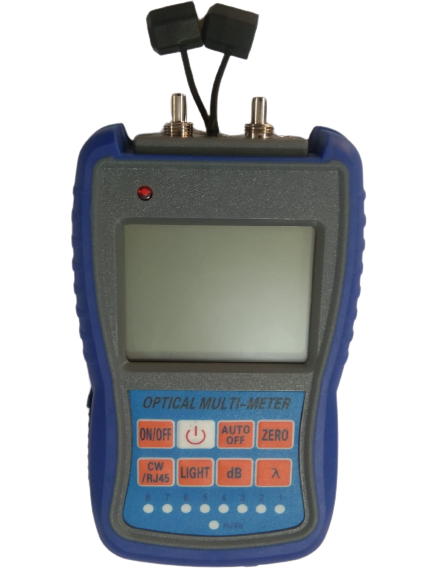

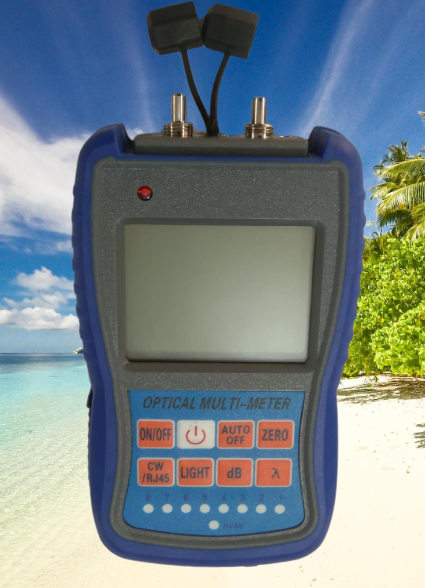

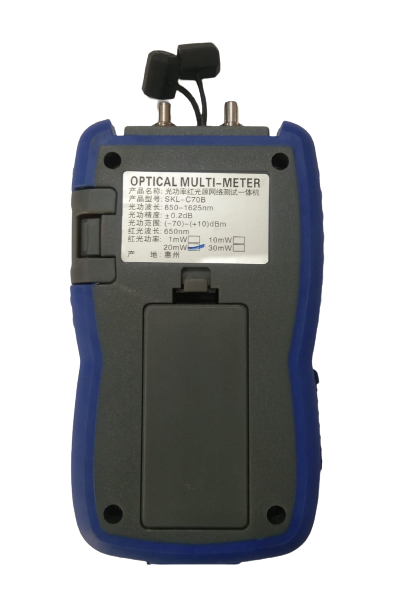

OPTICAL MULTI POWER METER SKL-C70B
₹1,600.00
Technica-l indicators
Measurement range: -70~+10dbm
Type of probe: InGaAs
Wavelength range: 800~1700nm
Standard wavelength (nm): 850/980/1300/1310/1490/1550/1625
Display resolution Linear display: 0.1%
Logarithmic display: 0.01dBm
Operating temperature (C):-10~+60
Automatic shutdown time (min):10 minutes
Continuous working time of battery: > 40 hours
Overall dimension (mm):130X75 X27
Power supply: 2 No.7 dry batteries or lithium batteries (optional)
Weight (g): 134G
Model suffix: 10MW/30MW
Output light power of red light source: > 10mW>30mW
Output wavelength of red light source: 650nm
Fiber optic adapter of red light source: SC/ST/FC
Battery life: > 13 hours > 10 hours
