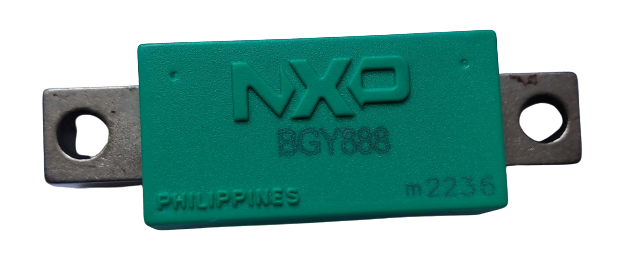

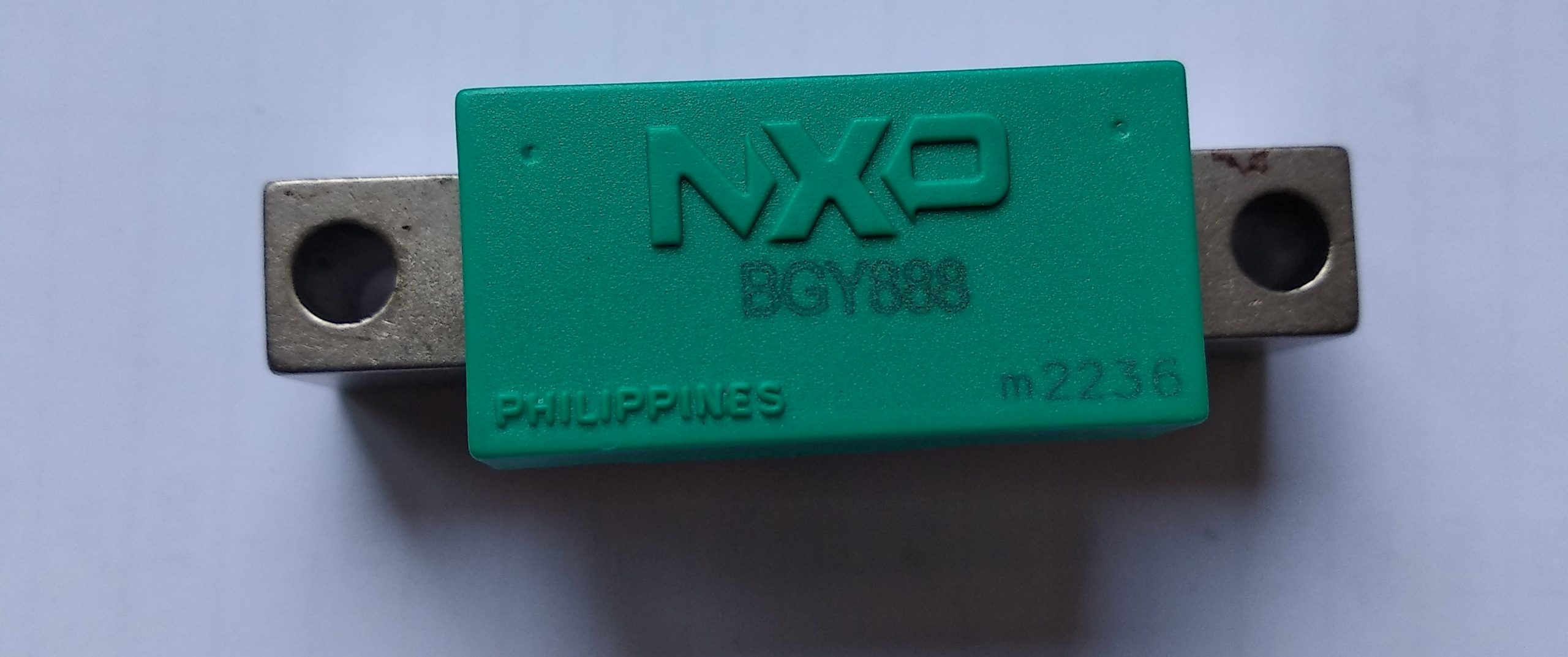

NODE IC NXP BGY 888

FEATURES
 Excellent linearity
 Extremely low noise
 High gain
 Excellent return loss properties.
APPLICATIONS
 Single module line extender in CATV systems operating
over a frequency range of 40 to 860 MHz.
DESCRIPTION
Hybrid high dynamic range amplifier module operating
with a voltage supply of 24 V in a SOT115J package. The
high gain module consists of two cascaded stages both in
cascode configuration.

PhysicalCase/PackageSOT-115TechnicalFrequency860 MHzGain34 dBNominal Supply Current340 mANumber of Channels1PDescriptions of NXP Semiconductors BGY888 provided by its distributors.40 MHz – 860 MHz RF/MICROWAVE WIDE BAND HIGH POWER AMPLIFIERComponent Stockers USACATV amplifier moduleWin SourceIC RECEIVER 0/4 16TSSOPUtmel ElectronicOEMs, CMs ONLY (NO BROKERS)Authorized Procurement Solutionsnew, original packagedACDSIC AMP CATV SOT115JVigorImagesackagingBulkDocuments
