FIBER ENTHERNET MEDIA CONVERTER 10/100M/DUAL FIBER/SINGLE MODE/SC
DUAL FIBER/SINGLE MODE /SC
10/100 MADEL NO-BT-950SM-25 40KM
CC CAMERAS, EXTENDERS, Media Converter, Wireless Systems

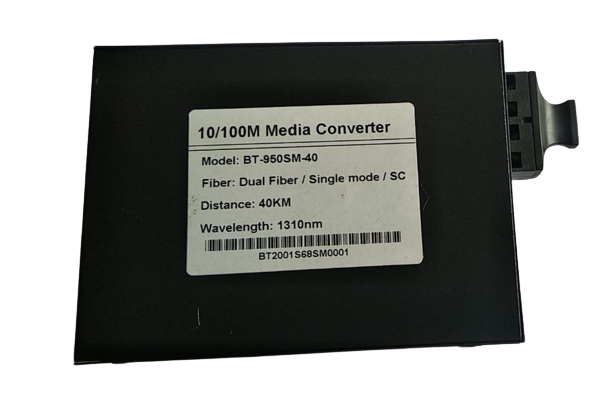

MEDIA CONVERTER (BT-950SM-40)
₹950.00
Specification
| Optical Interface | Connector | 1×9 Module SC/FC/ST |
| Data Rate | 100Mbps | |
| Duplex Mode | Full duplex | |
| Fiber | MM 50/125um,62.5/125um SM 9/125um |
|
| Distance | 100Mbps: MM 2km,SM 25/40/60/80/100/120km 1000Mbps: MM 550m/2km,SM 20/40/60/80/100km |
|
| Wavelength | MM 850nm,1310nm SM 1310nm,1550nm WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side) WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side) |
|
| UTP Interface | Connector | RJ45 |
| Data Rate | 10/100Mbps | |
| Duplex Mode | Half/full duplex | |
| Cable | Cat5,Cat6 | |
| Power Input | Adapter Type | DC5V |
| Power Built-in Type | AC100~240V | |
| Power Consumption | <3W | |
| Weight | Adapter Type | 0.39kg |
| Power Built-in Type | 0.67kg | |
| Dimensions | Adapter Type | 94*70.5*26.5mm |
| Power Built-in Type | 140.5*111*30mm | |
| Temperature | 0~50℃ Operating; -40~70℃ Storage | |
| Humidity | 5~95%(no condensing) | |
| MTBF | ≥10.0000h | |
| Certification | CE,FCC,RoHS | |
