The FAN4174 and FAN4274 are designed on a CMOS process and provide 3.7 MHz of bandwidth and 3 V / μs of slew rate at a supply voltage of 5 V. These amplifiers operate and are reliable over a wide temperature range of -40°C to +125°C. The combination of extended temperature operation, low power, rail-to-rail performance, low-voltage operation, and a tiny package optimize this amplifier family for use in many industrial, general-purpose, and battery-powered applications.
Features:
- 200 μA Supply Current per Amplifier
- 3.7 MHz Bandwidth
- Output Swing to Within 10 mV of Either Rail
- Input Voltage Range Exceeds the Rails
- 3 V / μs Slew Rate
- 25 nV / Hz Input Voltage Noise
- Replaces KM4170 and KM4270
- FAN4174 Competes with OPA340 and TLV2461

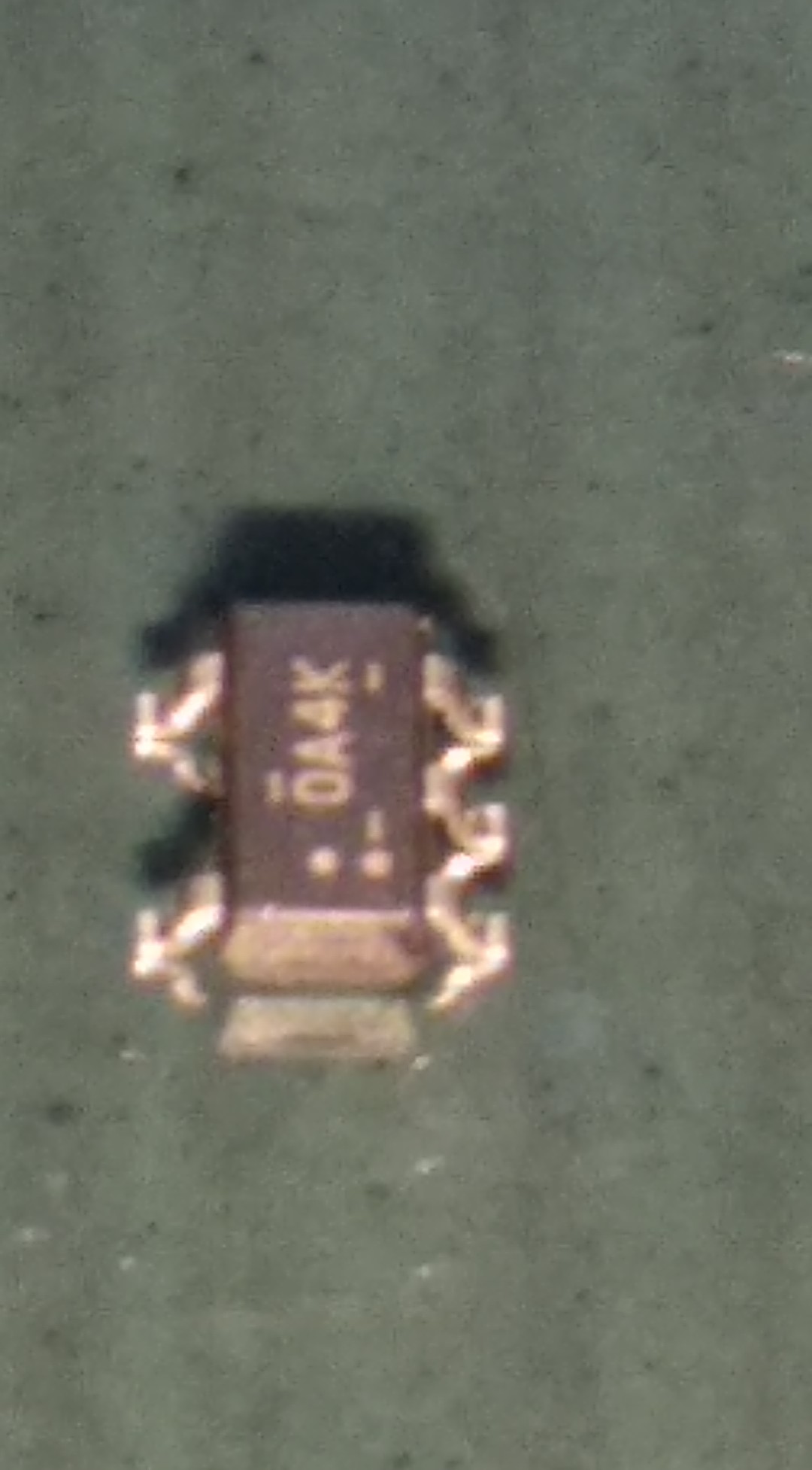

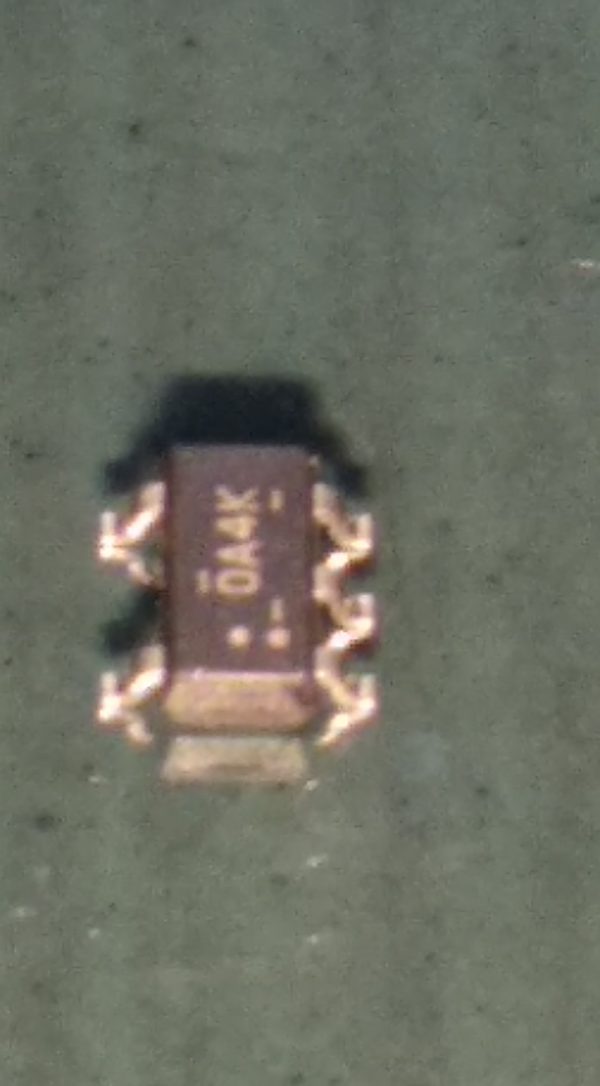

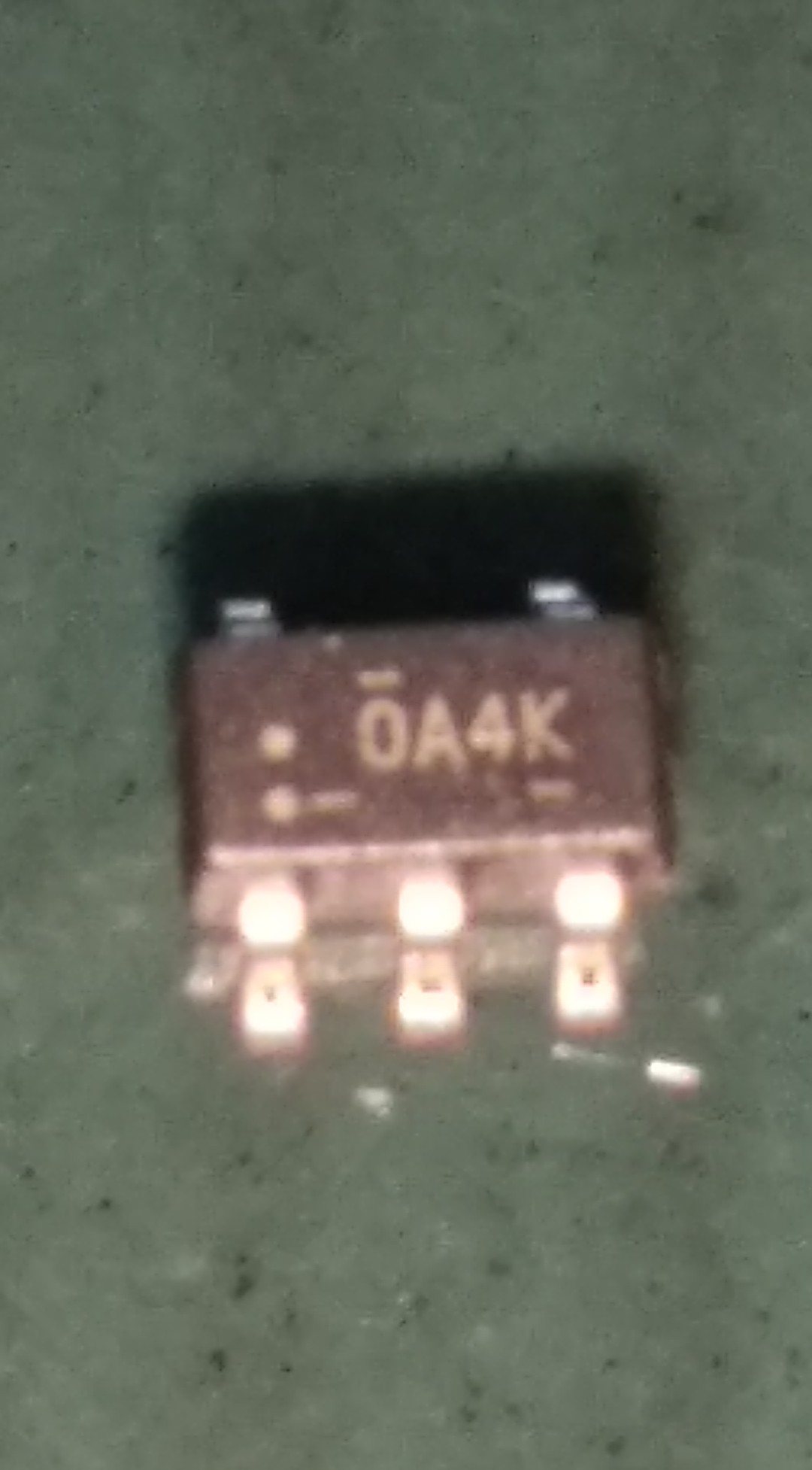

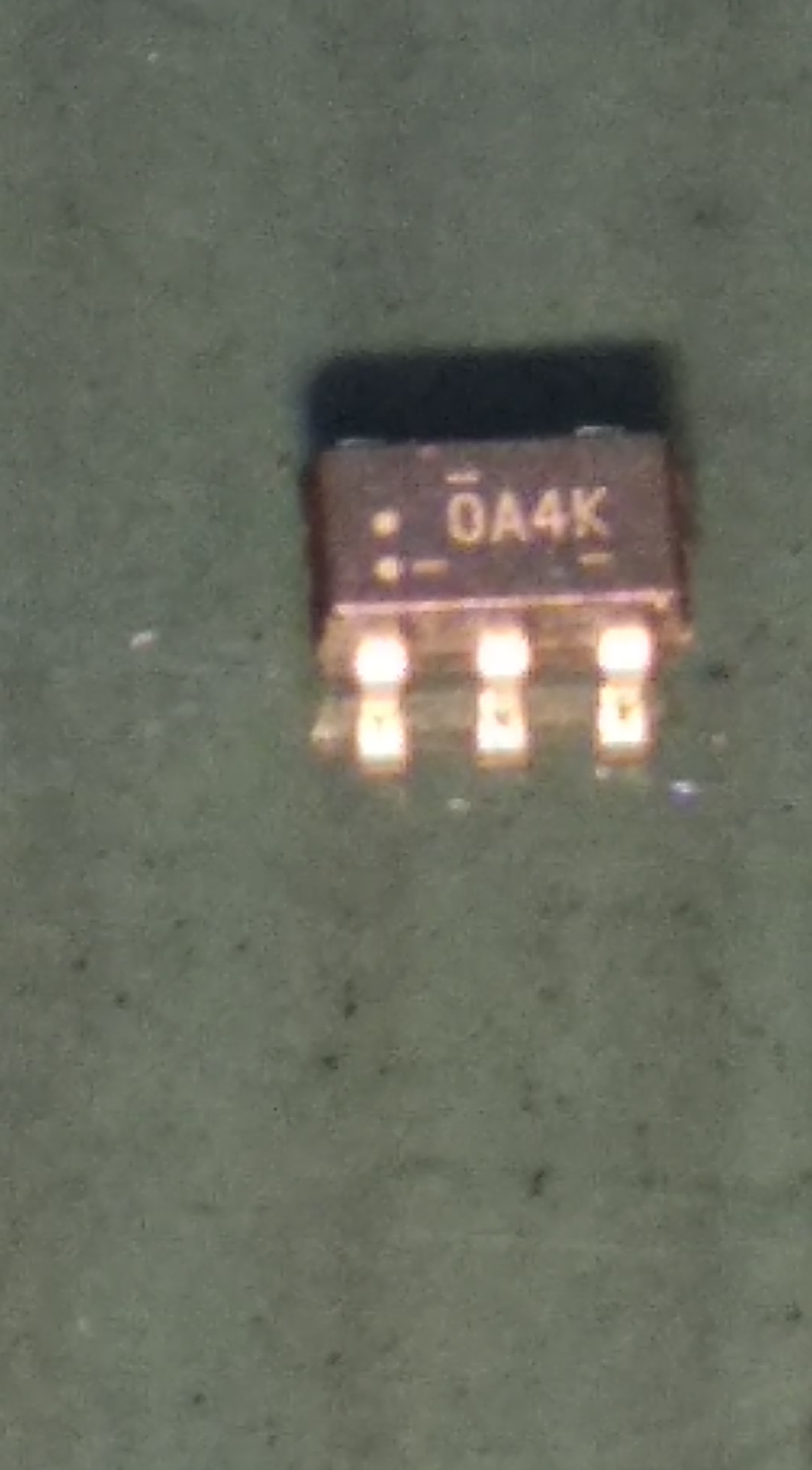

Available in a SOT23-5 Package - FAN4274 Competes with OPA2340 and TLV2462;
Available in MSOP-8 Package - Fully Specified at +5 V Supplies
- Temperature Range Package Packing Method
FAN4174IS5X
-40 to +125°C
5-Lead
SOT23 Package Tape and Reel (3000)
- FAN4274IMU8X
-40 to +125°C
8-Lead
Molded Small-Outline Package Tape and Reel (3000)
Applications
- Motor Control
- Portable / Battery-powered Applications
- PCMCIA, USB
- Mobile Communications, Cellular Phones, Pagers
- Notebooks and PDAs
- Sensor Interface
- A/D Buffer
- Active Filters
- Signal Conditioning
- Portable Test Instruments
