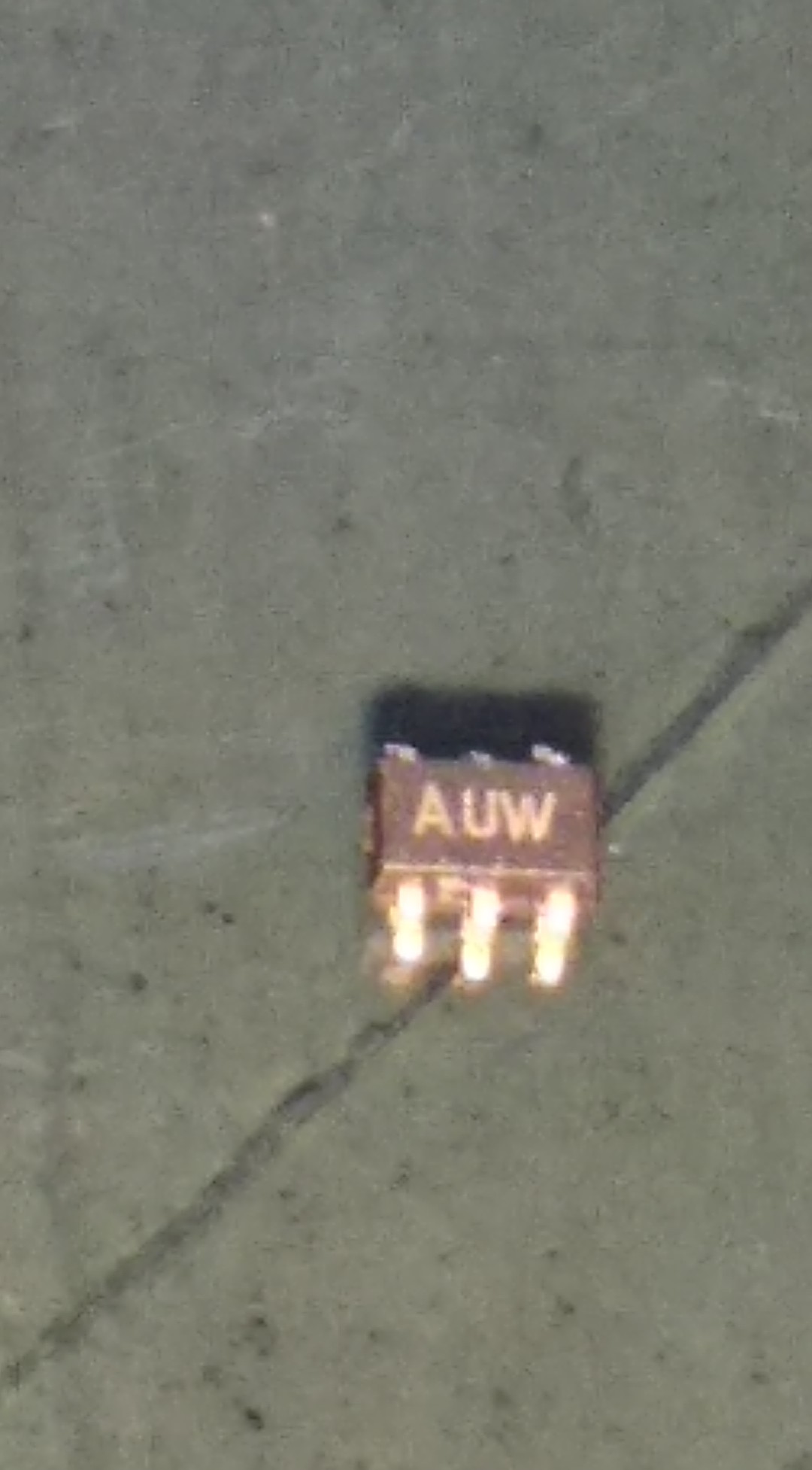

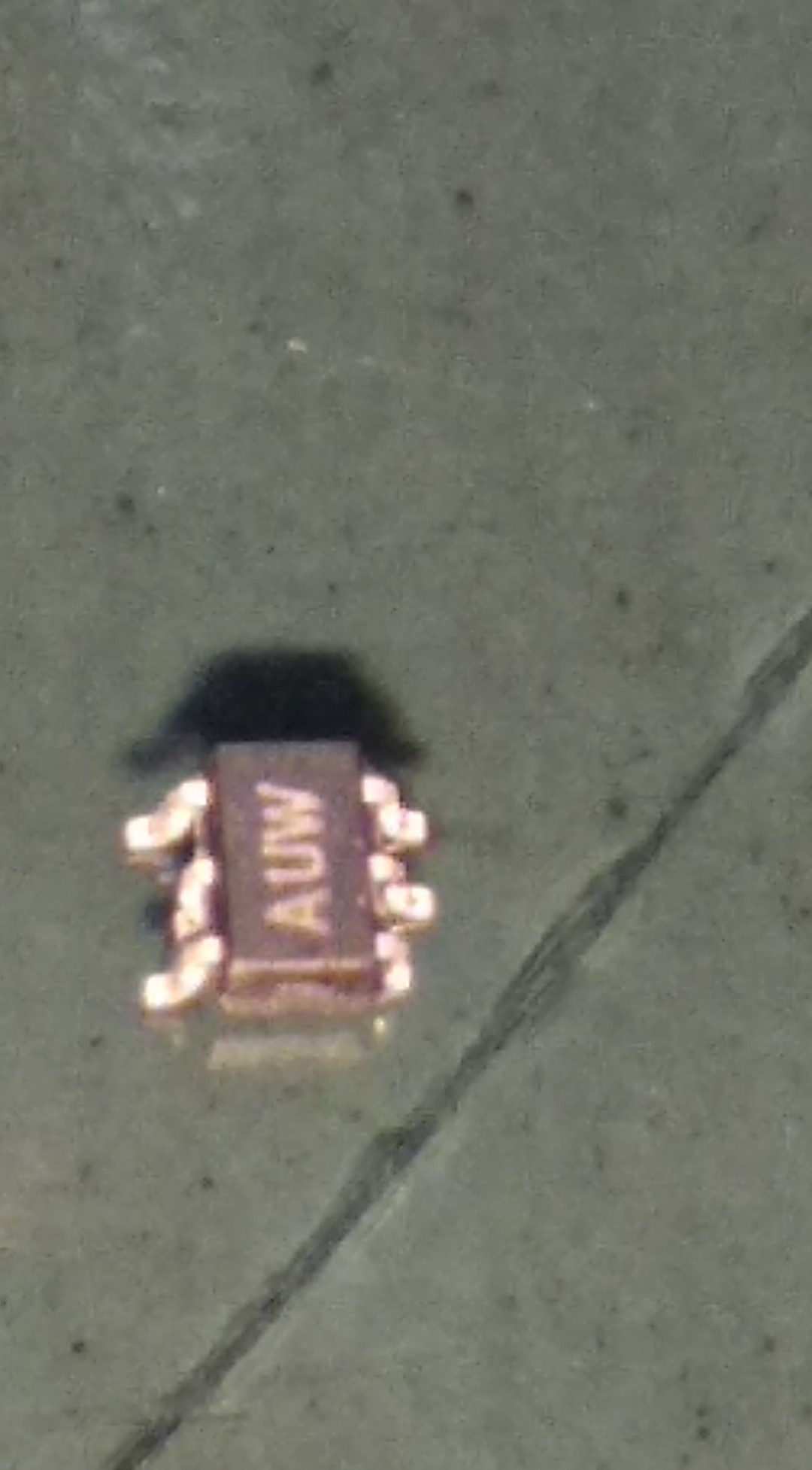

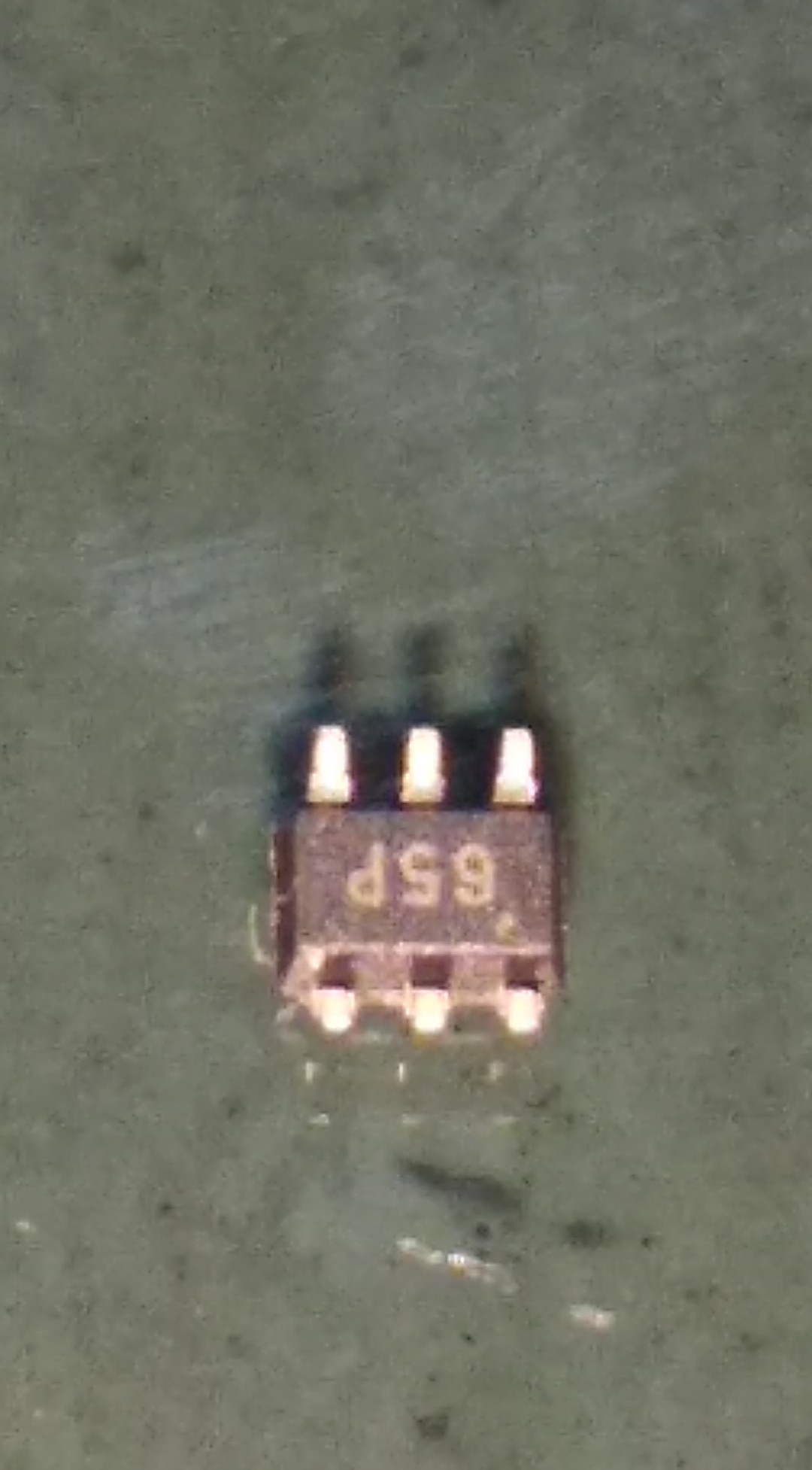

OPA 360 AIRCKR\AUW
The input common-mode range includes GND, which allows the Video-DAC to be DC-coupled to the OPA360. The output swings within 25mV of GND and 300mV to V+ with a standard back-terminated video load (150Ω). An internal level shift circuit prevents the output from saturating with 0V input, thus preventing sync-pulse clipping in common video circuits. Therefore, the OPA360 is ideally suited for DC-coupling to the video load. If
AC-coupling is preferred, the OPA360 offers a sag-correction feature that significantly reduces the size of the output coupling capacitor. The OPA360 has been optimized for space-sensitive applications by integrating sag-correction, internal gain setting resistors (G = 2), and a 2-pole video-DAC reconstruction filter.
In shutdown mode, the quiescent current is reduced to < 5µA, dramatically reducing power consumption and prolonging battery life. The OPA360 is available in the tiny 2mm x 2.1mm SC70-6 package.
Features:
- EXCELLENT VIDEO PERFORMANCE
INTERNAL GAIN: 6dB - 2-POLE RECONSTRUCTION FILTER SAG CORRECTION
− Reduces Coupling Capacitor Size - INPUT RANGE INCLUDES GROUND
− DC-Coupled Input - INTEGRATED LEVEL SHIFTER
− DC-Coupled Output(1)
− No Output Capacitors Needed - RAIL-TO-RAIL OUTPUT
- LOW QUIESCENT CURRENT: 6mA
- SHUTDOWN CURRENT: 5A (max)
- SINGLE-SUPPLY: 2.7V to 3.3V
- SC70-6 PACKAGE: 2.0mm x 2.1mm
(1) Internal circuitry prevents the output from saturating, even with 0V sync tip level at the input video signal.
Applications:
- DIGITAL CAMERAS
- CAMERA PHONES
- SET-TOP-BOX VIDEO FILTERS
