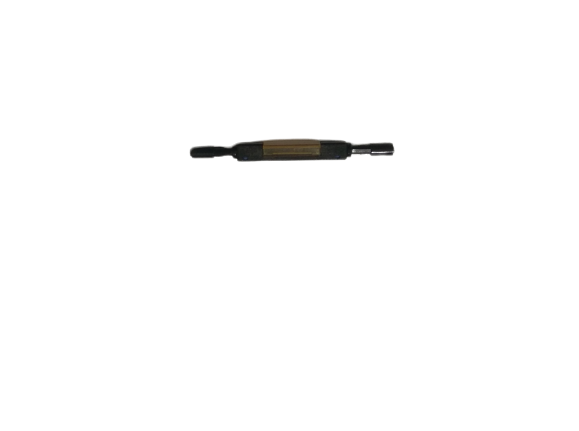

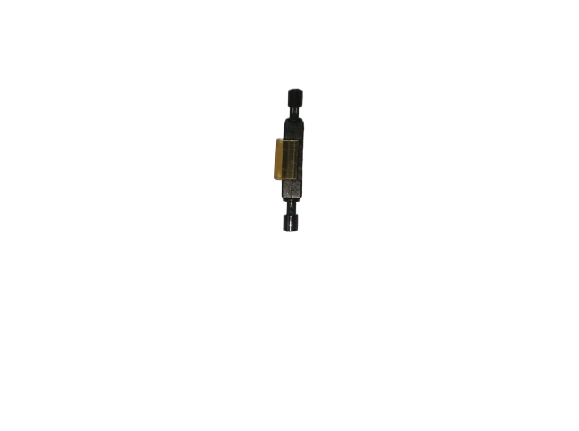

This product is L925BP Optical Fiber Mechanical Splice, it is also called L925BP drop cable fast connector, which can be used for the fiber optic indoor 2*3mm fig 8 butterfly shape drop cable field cold junction. With the fixed buckle, the protecting housing and the optical fiber connection module, L925BP can be an ideal tool for the drop cable connection and maintenance.
Specifications :
| Applicable for | 2*3mm indoor drop cable |
| Optical fiber diameter | 125um ( G652 & G657 ) |
| Tight buffer diameter | 250um or 900um |
| Fiber mode | Single & multimode |
| Operation time | About 60s |
| Average Insert loss | ≤ 0.20dB |
| Return loss | ≥ 40dB |
| Fastening strength of naked fiber | > 5 N |
| Fastening strength of naked fiber holder | > 10 N |
| Using temperature | -40~+75°C |
| Storage temperature | -40~+80°C |
| Size | 90x80x7mm |
