GROOVE

8,800.00

Specifications

CPU QCA9556 720 MHz
RAM 64 MB
ROM 16 MB Flash
Ethernet Ports 1x 10/100/1000 Ethernet
Effective range 2.4 GHz 5 GHz
Frequency Range 2412-2484 MHz 5150-5875 MHz
Wi-Fi standard 802.11b/g/n 802.11a/n/ac
Channel Width 5/10/20/40 MHz 5*/10*/20/40/80 MHz
Output power Up to 20 dBm for Russia (up to 26 dBm for other countries)
Radio Module Model QCA9889
MIMO support No
Additionally Voltage Sensor, Temperature Sensor
Led 5 pieces for WiFi signal strength, 1 for Ethernet activity (also configurable by software)
Nutrition Passive PoE 11-30V DC
Maximum power consumption 5 Watts
Dimension 177 x 44 x 44 mm
Weight
Ambient Operating Temperature -40.. +70 °C
Operating system RouterOS Level 3

* Only supported with 802.11a/n protocols.

Category:

Description Groove 52 ac

The model from the Groove line is a compact outdoor device with the full functionality of RouterBOARD and is controlled by the professional operating system RouterOS. The Groove 52 ac features support for 802.11ac (up to 80 MHz), a Gigabit Ethernet port, and the ability to programmatically enable the desired band (2.4 or 5 GHz). At the same time, the advent of a gigabit port allows you to realize the full potential of high-speed 802.11ac.

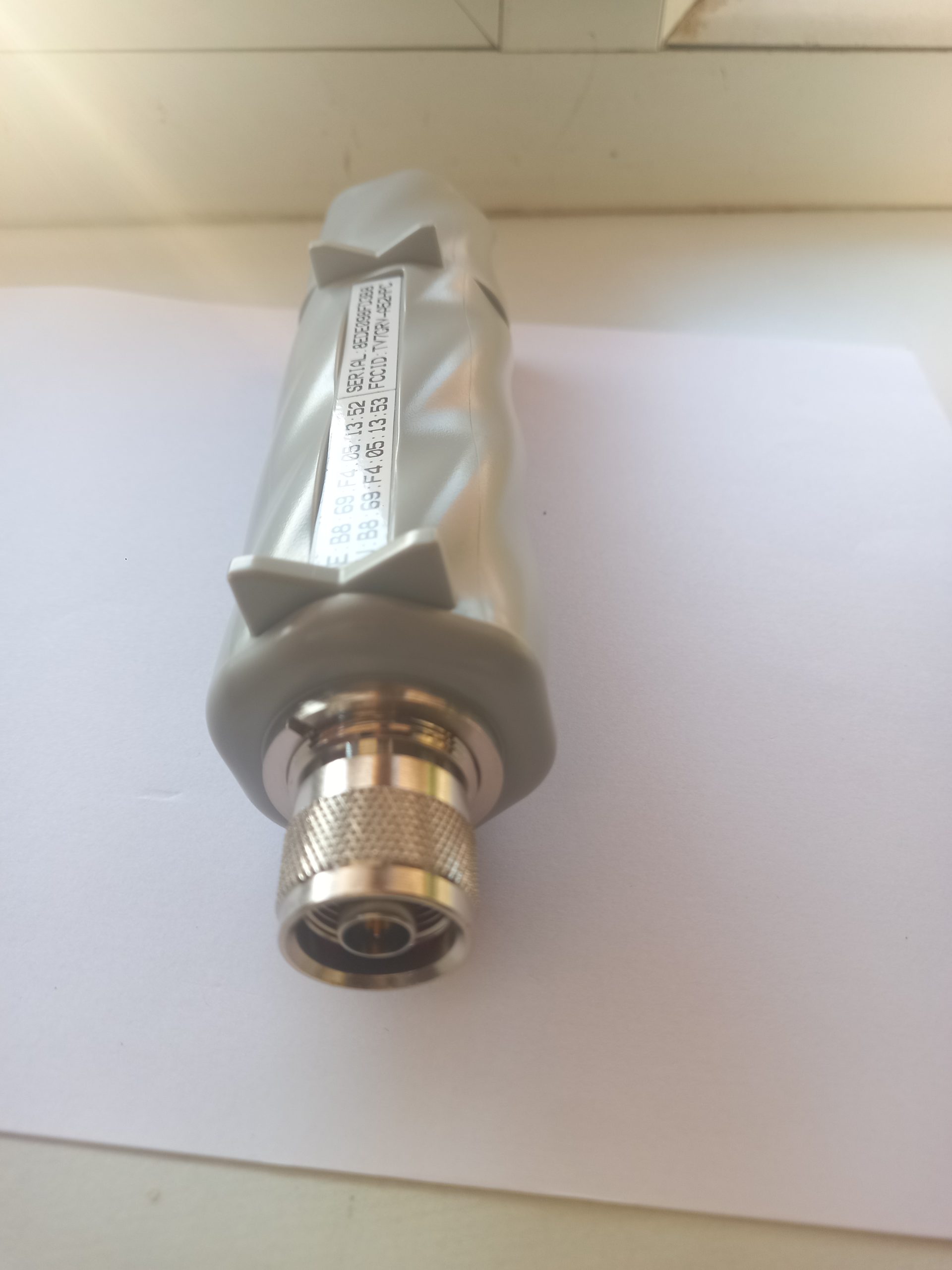

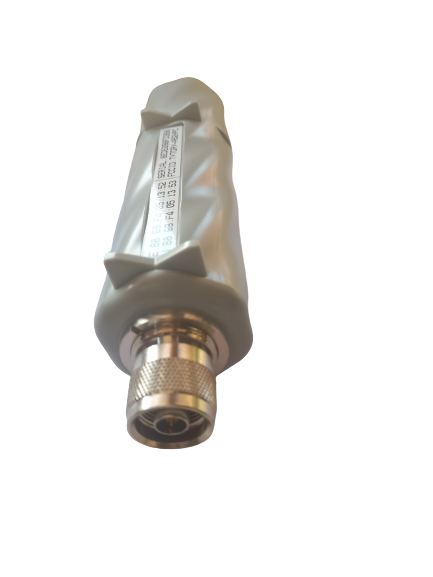

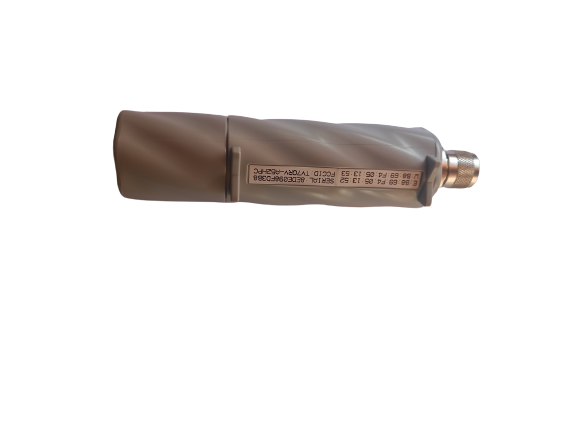

The device is equipped with an N-type connector for connecting an external antenna and tabs for secure mounting on the mast, so the antenna can be connected directly or using a cable assembly. The Ethernet connector is reliably protected from precipitation, and LED indicators for the strength of the wireless signal help to guide the antenna conveniently and accurately.

This version has the third level of the RouterOS license, which allows the device to be used as a client for a point-to-multipoint network or for either side of a point-to-point radio bridge. In addition, the adjacent version of the GrooveA 52 ac has a fourth license level, which allows it to be used as an access point, and also has an omnidirectional antenna (included).
