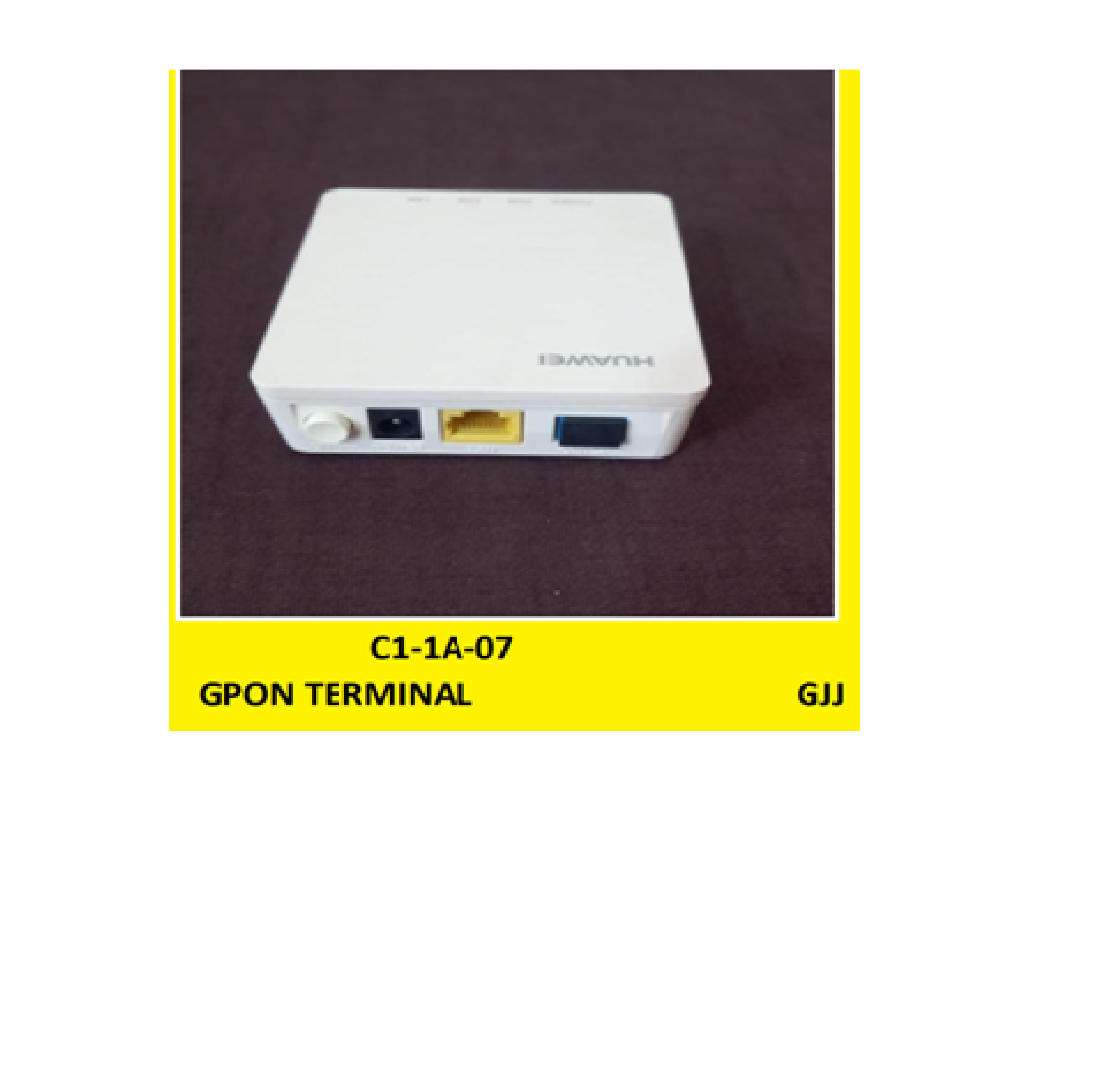

GPON terminal HG 8010H

680.00

Network interface GPON (SC/APC)
User interface Gigabit Ethernet port
LEDs POWER / PON / FATE / LAN
Power supply 11 – 14 V DC, 0.5 A
Power supply input 100 – 240 V AC, 50 – 60 Hz
Average power consumption 3 W
Maximum power consumption 3,5 W
Dimensions 82x90x27 mm
Weight 500 g
Permissible operating temperature 0 to 40 degrees C
Permissible air humidity 5%-95% RH non-condensing
GPON port Class B+

Sensitive reception: -27 dBm

Wavelength: 1310 nm upstream, 1490 nm downstream

Wavelength blocking filter (WBF)

Flexible mapping between GEM and TCONT ports

Authentication by SN or password, G.984.3

Two-way FEC

SR-DBA and NSR-DBA

Ethernet port Port based VLAN tags

Transparent 1:1 VLAN, N:1 VLAN and VLAN

QinQ VLAN

MAC address learning

Transparent transmission of IPv6 packets in Layer2 layer

QoS function Capacity limit per port

Priority 802.1p

SP / WRR / SP+WWW

Broadcast packet limit

Flow mapping based on VLAN ID, port ID or 802.1p

Multicast IGMP v2 / v3 snooping

MLD v1 / v2 snooping

Fast leave

VLAN tag translation, transparent transmission, removal of multicast packets in downstream

Limit of IGMP / MLD protocol packages

Management OMCI news

Active / passive ONT rogue detection function

PPPoE / DHCP imulation testing

OMCI / Web UI

Software backup and rollback

802.1ag Ethernet OAM

Measurement and diagnosis of the optical connection

Checking the loopback

Safeguards Filtering of MAC addresses
Saving energy Energy-saving diodes

Reduction of power consumption by unused components

COCV4

Categories: ,

 HG8010H ONT terminal working in GPON technology intended for use inside buildings, in optical fibre networks of FTTH type. It is equipped with a gigabit Ethernet port, thanks to which you can use the full potential of a fiber-optic network. It enables comfortable browsing and Internet use, good quality VoIP calls and watching HD movies. EchoLife HG8010H has a very good value for money, making it the ideal solution for FTTH networks as a client terminal.

Features of the HG8010H terminal

– port GPON class B+ – Gigabit port Ethernet – plug and play – remote management via OLT – energy savings – tiny

Features / filters
Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
PON standard GPON
Wireless network standards None
USB port None
VoIP ports None
