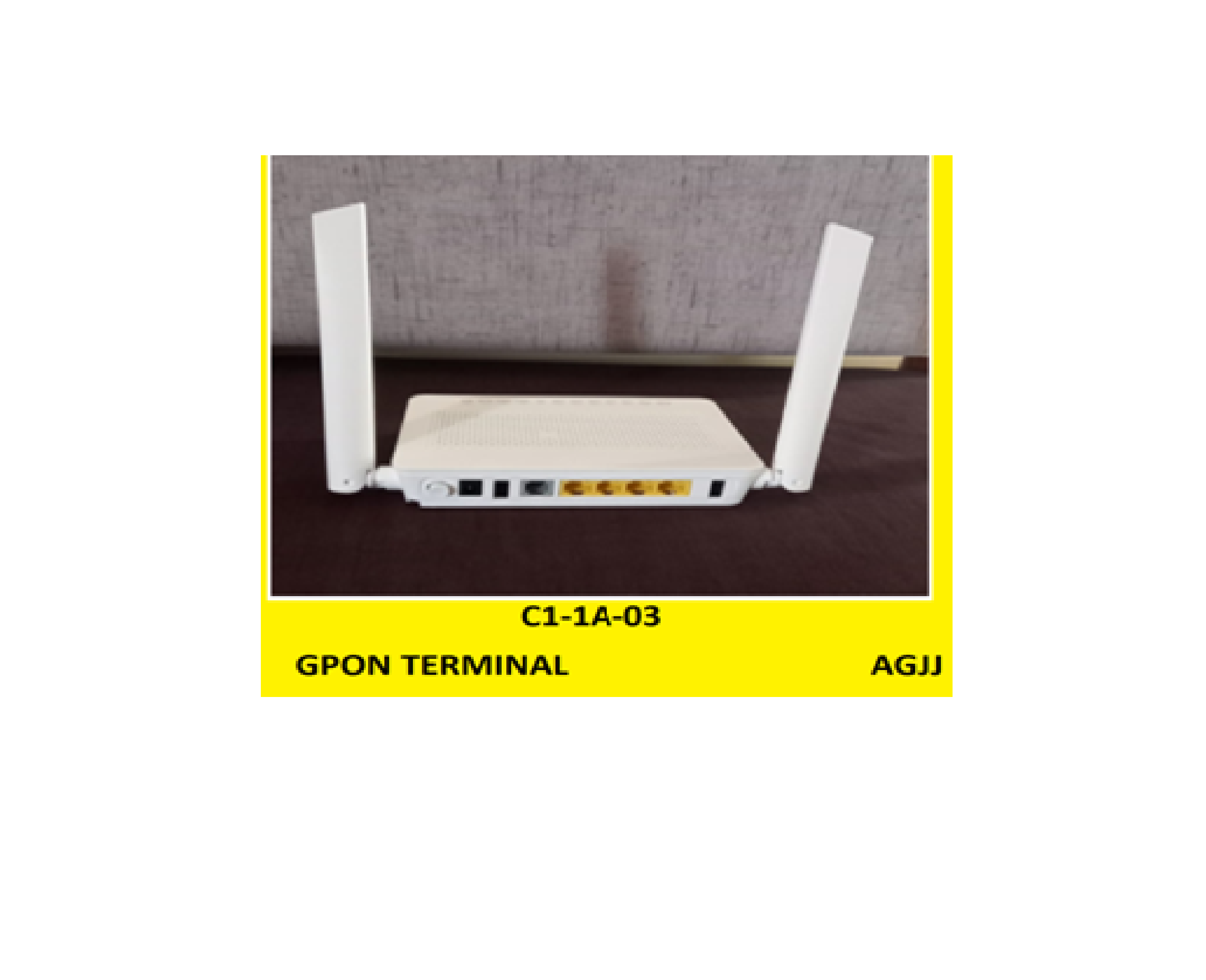

GPON terminal (H88546V5)

1,700.00

PON Interface
Class B+
Wavelength
Tx 1310nm, Rx 1490nm
RX sensitivity
-27dBm
LAN
2*10/100/1000Mbps adaptive Ethernet ports, full/half duplex
Power Specification



Power adapter input: 180~240V AC, 50Hz~60 Hz
System power supply: 11V~14V DC, 1.5 A
Power Consumption
Static power consumption: 7.5W
Maximum power consumption: 18.5W
Working Environment
Working temperature: 0??? ~ +40???
Environment humidity: 5% RH ~ 95% RH (non-condensing)
Dimension (L*W*H)
185*252*43mm
Net weight

· size (height * width * depth, unit: mm):176*138*28
· Weight(Contain Power adapter):less than 500g
· Power input: AC 110-240V
· power: 14W
· Working environment temperature: 0 ~ 40
· Working environment humidity: 5~ 95% (non condensing)



Categories: ,

Product Description

HS8546V5 ONU 4GE 1 PORT Telephone Voice WIFI 5G GPON DUAL BAND
gPON Interface: 1 * GPON interface (SC/UPC)
Transmission Rate: 2.488Gbps downstream and 1.244 Gbp supstream
LAN: 4*10/100/1000M Base-T interfaces with RJ-45 connector
VOIP: 1
WLAN: 2.4G&5G wireless external antenna
USB: 2
The Echo Life HS8546V5, an optical network terminal (ONT), is a high-end home  in FTTH solution. By using the G/EPON technology, ultra-broadband access is provided for home and SOHO users.
The HS8546V provides 1 POTS port, 4GE Ethernet ports,2USB ports and dual band wireless,2.4G/5G,featuring high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services.
