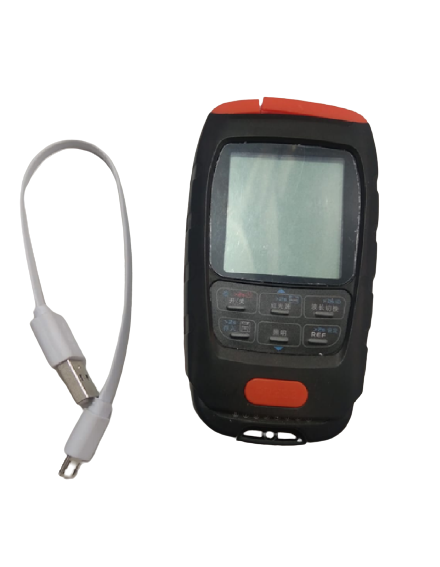

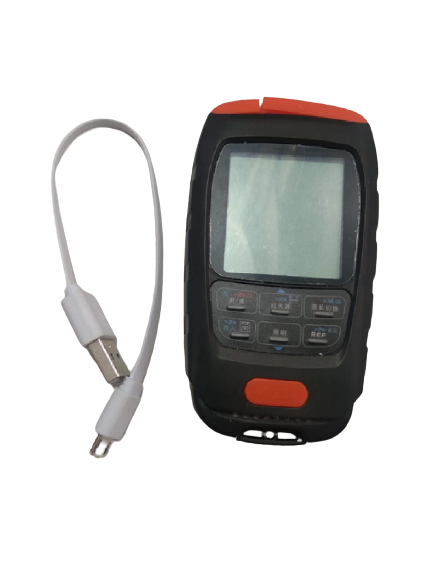

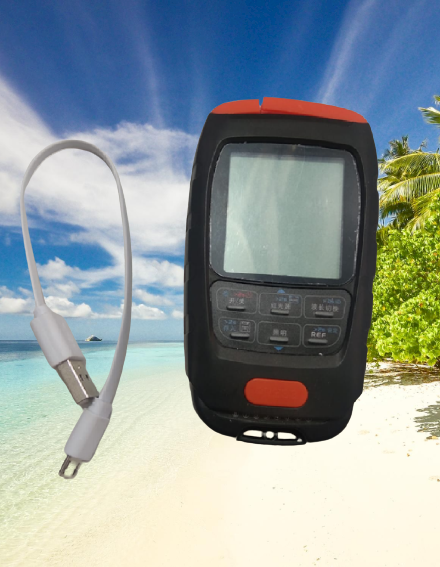

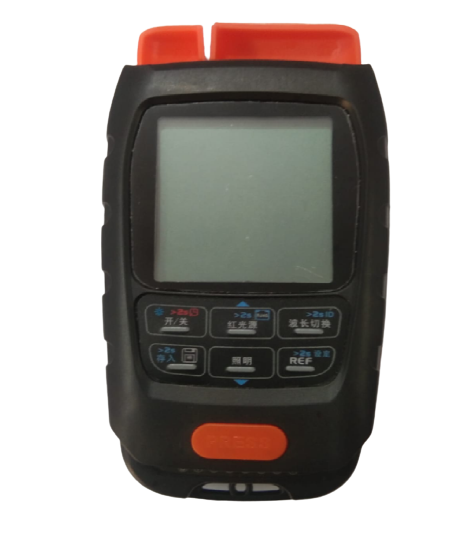

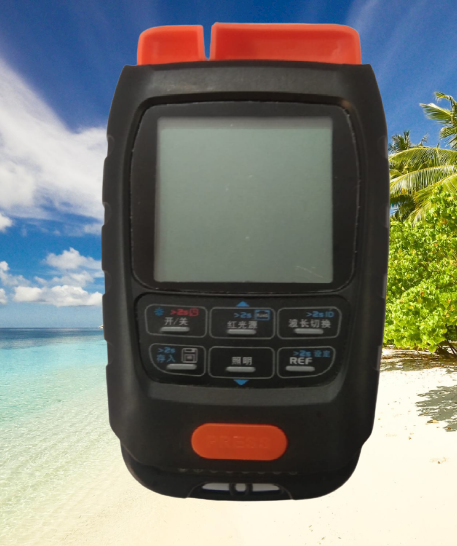

FTTH OPTICAL POWER METER (XC- 008)

4in1 Li-lion Battery Optical Power Meter LCD shows the measured optical power, dBm, MW, UW, NW, dB, 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm Available wavelengths: 800–1700 nm; Sensing Fiber: Inga; +20 to -50 dBm Uncertainty: 5% Resolution: 0.01dB Optical Connector: Interchangeable Visual defect locator output power: 1 mW central wavelength: 650nm Can measure 850/980/1300/1310/1490/1550/1625 nm (7 wavelength) of optical absolute power, test range: -50 dBm ~ + 25 dBm; 10mW red light source can measure the distance is about 5 km

Model: XC-008

Configure: OPM/VFL/LED flashlight/RJ45 test

Battery: 3.7v/450mAh/1.67Wh lithium polymer battery

Charging: 5V/1A MioroUSB interface charger
