Optical Power Meter to perform power checks, adapting to different types of connectors. It has a light emitter and a screen where the power reading is expressed. The meter works by emitting a beam of light at a certain wavelength, the measurement will show the value of energy loss during transmission. Ideal for analyzing fiber optic networks or detecting attenuation faults in the installation.
FTTH, POWER METER, Wireless Systems

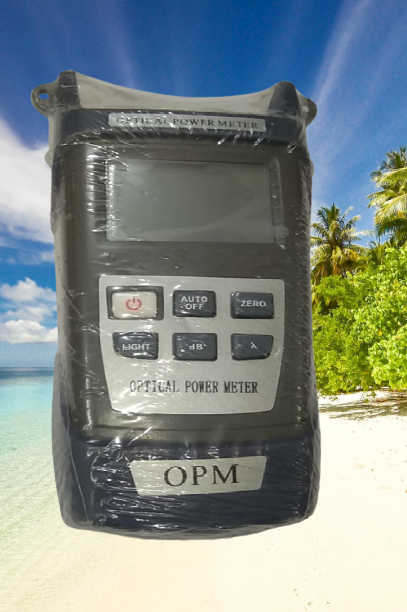

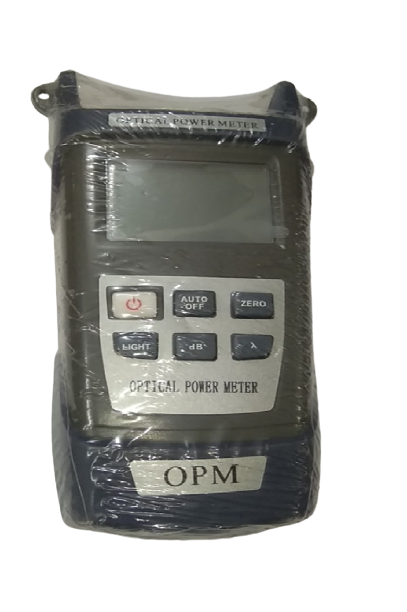

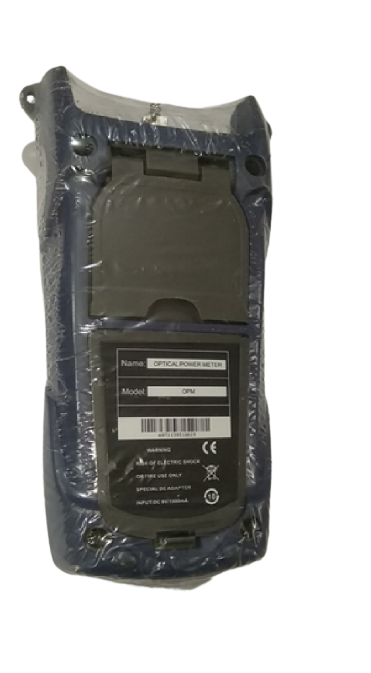

FTTH OPTICAL POWER METER (OPM)
₹1,500.00
Specifications
- Fiber optic meter, range from -70 dBm to +3 dBm ± 5%.
- Compatible with FC / SC connectors.
- Wavelength range from 800 nm to 1700 nm.
- Automatic self-calibration function.
- 4 digit LCD display, backlit for night viewing.
- Optical power measurements in non-linear indicators (dBm) or in linear indicators (mW).
- Insertion loss measurements (“insertion loss”) in dB.
- Detector type: InGaAs.
- Automatic shutdown after 18 minutes of non-use.
- Operating time up to 48 hours. It works with 3 AA batteries.
- Gross Weight: 650 g
- Product size (width x depth x height): 19.0 x 4.8 x 10.0 cm
- Number of packages: 1
- Packages size: 21.2 x 10.8 x 5.0 cm
- Master-pack: 1
Reviews
There are no reviews yet.
