DISC LITE WIRELESS ANTENNA

5,300.00

Details
Product code RBDiscG-5acD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions ⌀ 265mm, height: 80mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 21
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 21 -80
MCS0 25 -96
MCS7 20 -75
MCS9 18 -70
Minus Quantity- Plus Quantity+
Category:

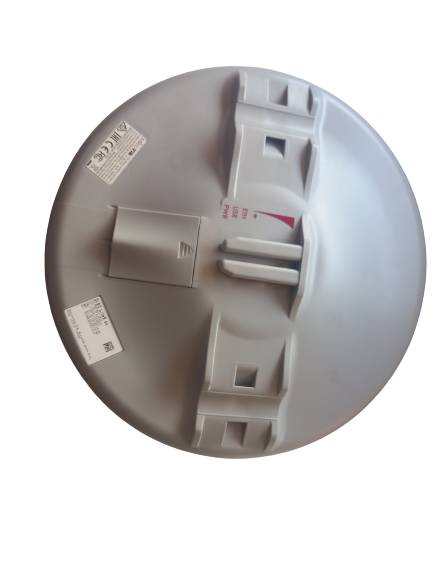

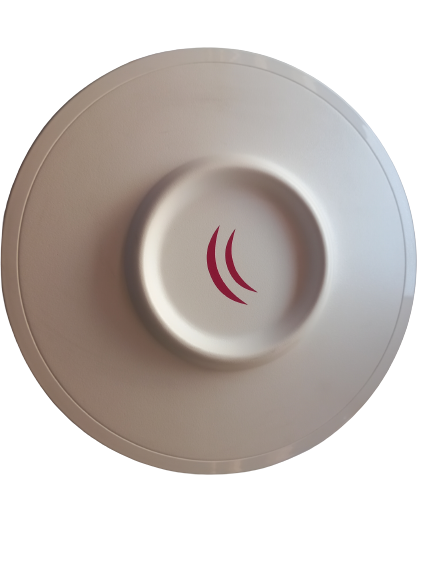

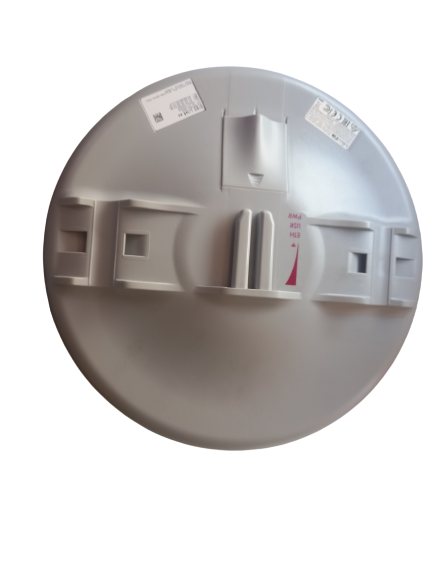

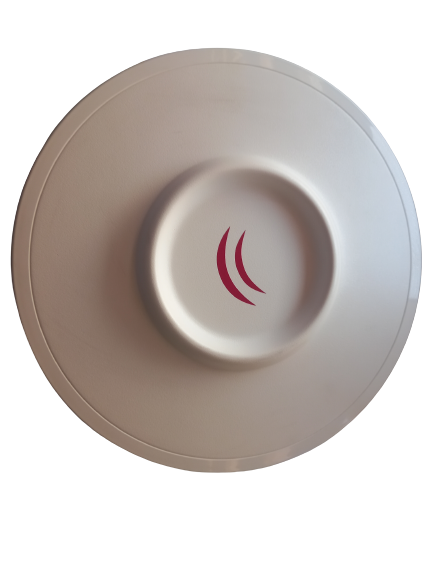

The DISC is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.

DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting systems, including the quick MOUNT pro series. The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.

We have this version available for you:

  • DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
