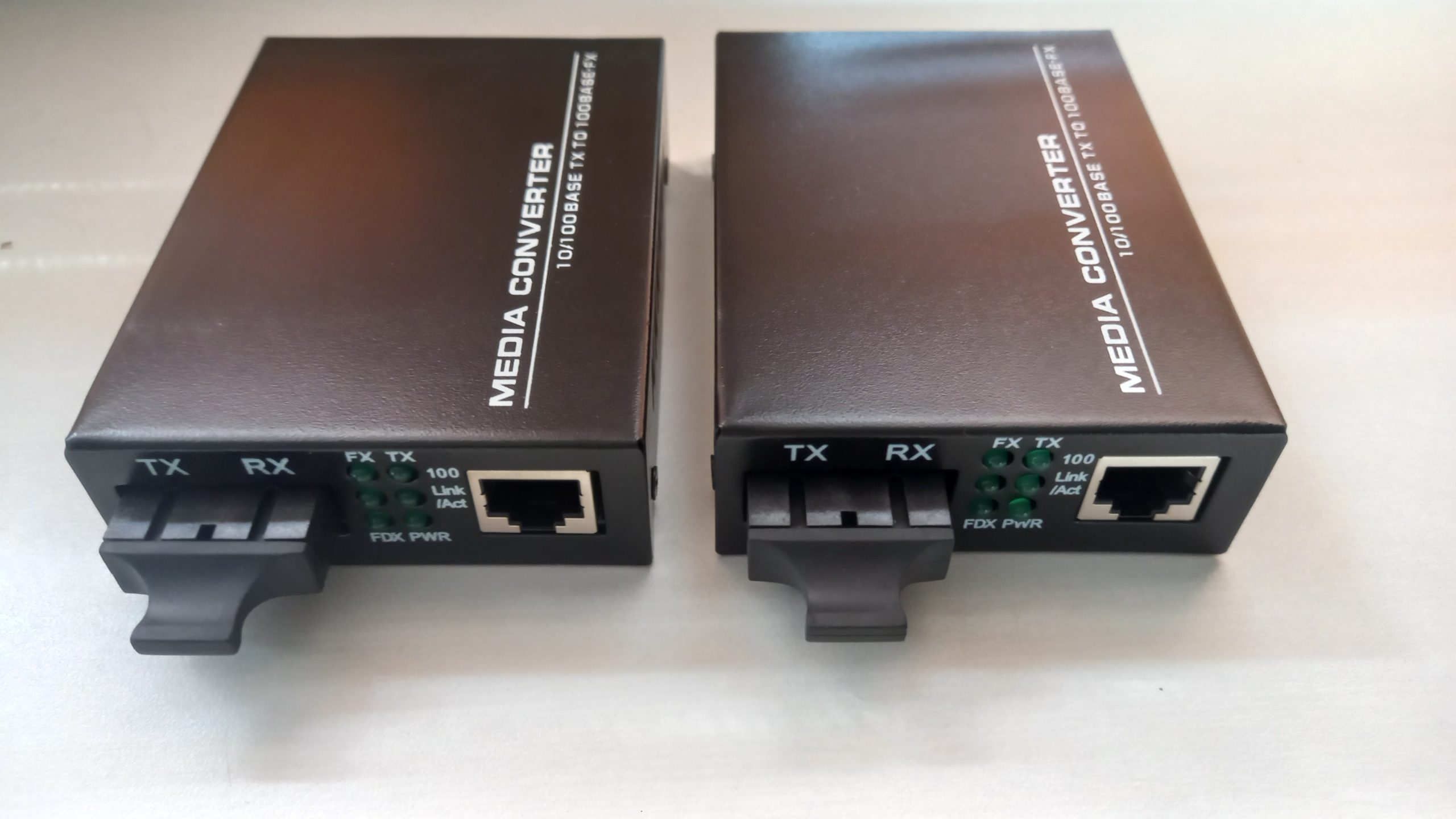

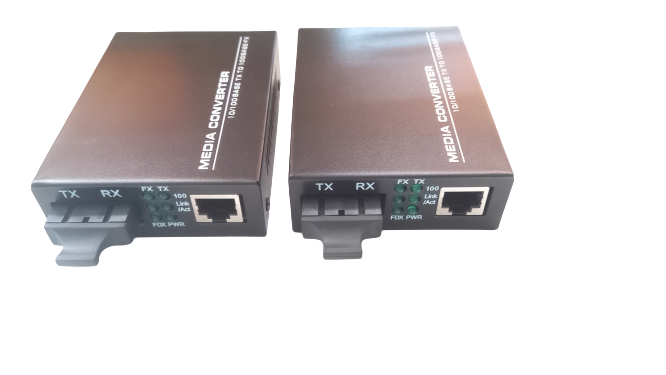

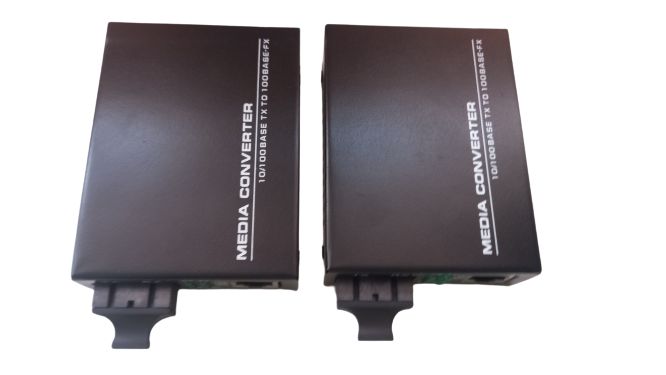

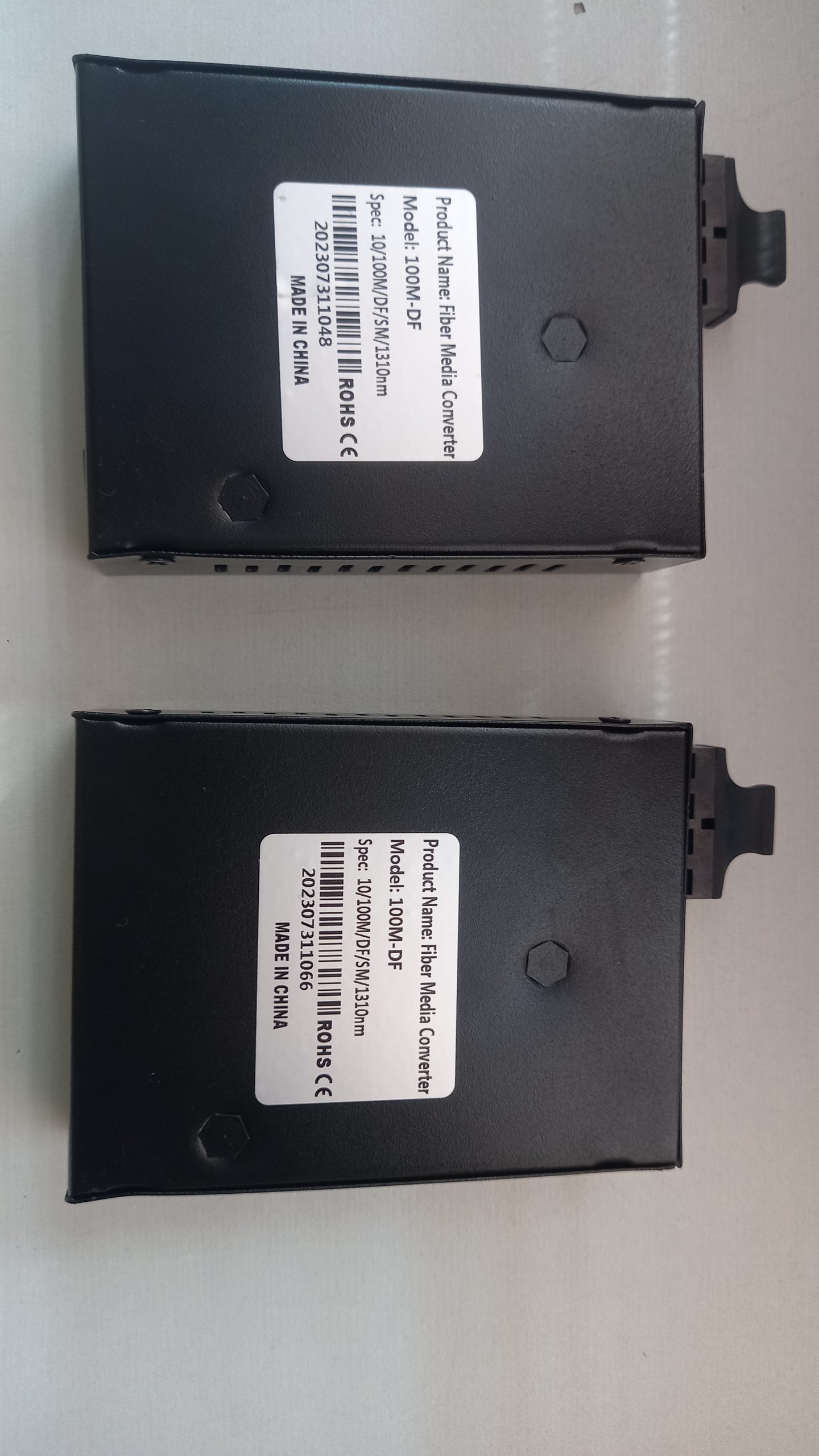

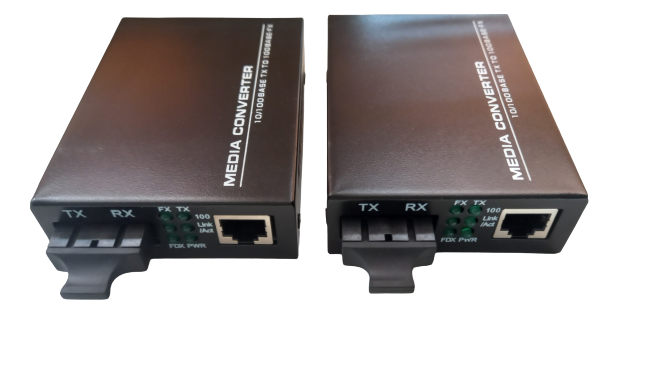

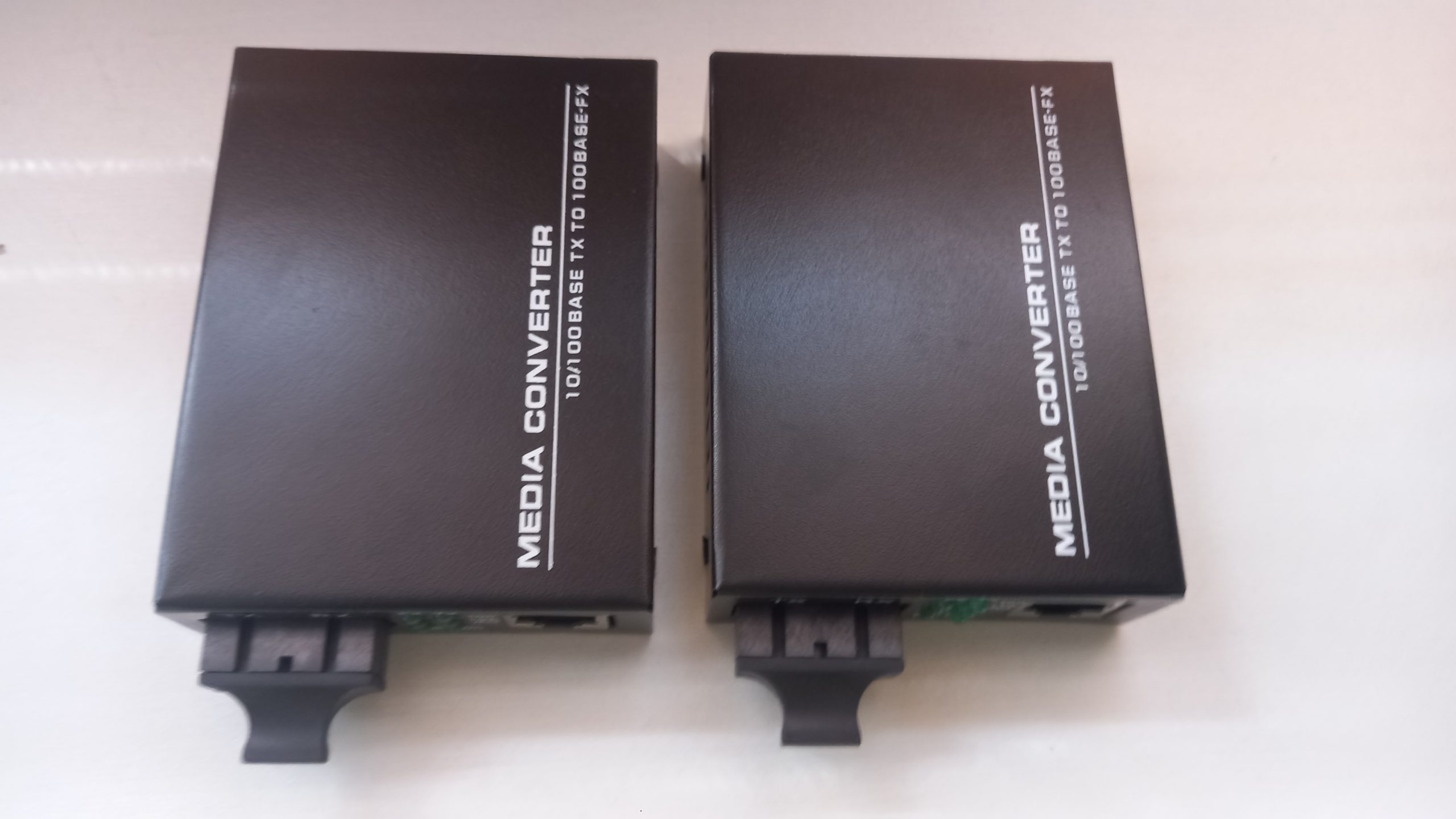

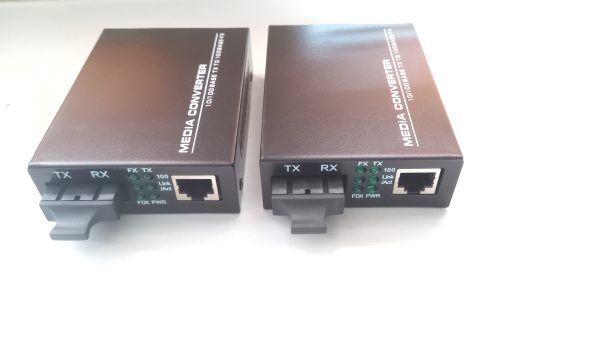

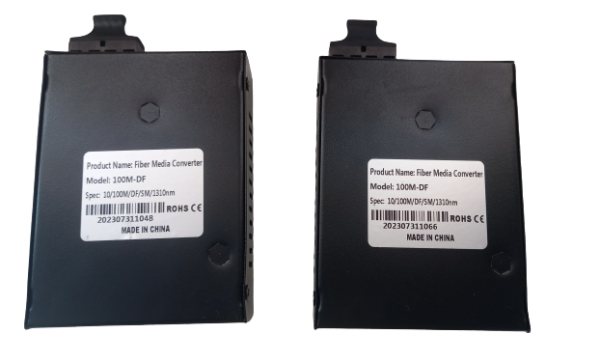

CONVERTER (FIBER MEDIA CONVERTER 10/100M/DF/SM/1310NM) (100 M -DF)

₹1,400.00

Specification

Model
Standard IEEE802.3 10Base-T Ethernet, IEEE 802.3ab, IEEE 802.3z
Data Rate Copper: 10/100M; Fiber: 155M
Flow control Full duplex: flow control; Half duplex: back pressure
Cooper Port No.s of Copper Port: 1 Connector: RJ45 Connector Distance:100m
Fiber Port No.s of Fiber Port: 1 Connector: SC as default Wavelength: SMF: 1310nm Distance: SMF 20Km
LED indicators PWR; FL/A, FDX, TL/A , 100, FX (100M transmission rate of optical fiber)
Power supply Working power: DC5V 1A AC P.S.: 100V~ AC240V to 5V1A Or DC PS: -36~-72V to 5V1A
  External / Internal Power Supply Optional
Power consumption
Environment Ope. temp. : -10~55°C Storage Temp.: -40~85°C Rel. Humi.: 5% to 95% non-condensing
Dimensions External: 94mmx70mm*26mm Internal: 140mmx110mmx30mm
Gross Weight External : 0.4kg Internal: 0.5kg


Categories: ,
Add to wishlist

Product Description

Description

Fiber Media Converter translates the signal from a twist-pair 10/100Base-TX cable to 100Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 20km on dual fiber optic cable.


Features

  • 10/100Mbps auto-sensed, easily upgrade
  • Full-duplex and half-duplex auto-sensed
  • MDI/MDI-X Auto Negotiation
  • 10/100Mbps store-and-forward
  • 100Mbps cut-through transmission
  • Packet size up to1518bytes
  • Supporting VLAN / VoIP /QoS packets


Application

  • Network Communication
  • FTTH / FTTB / FTTx

ISP Backhaul Networking
