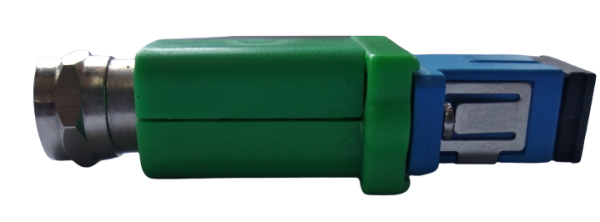

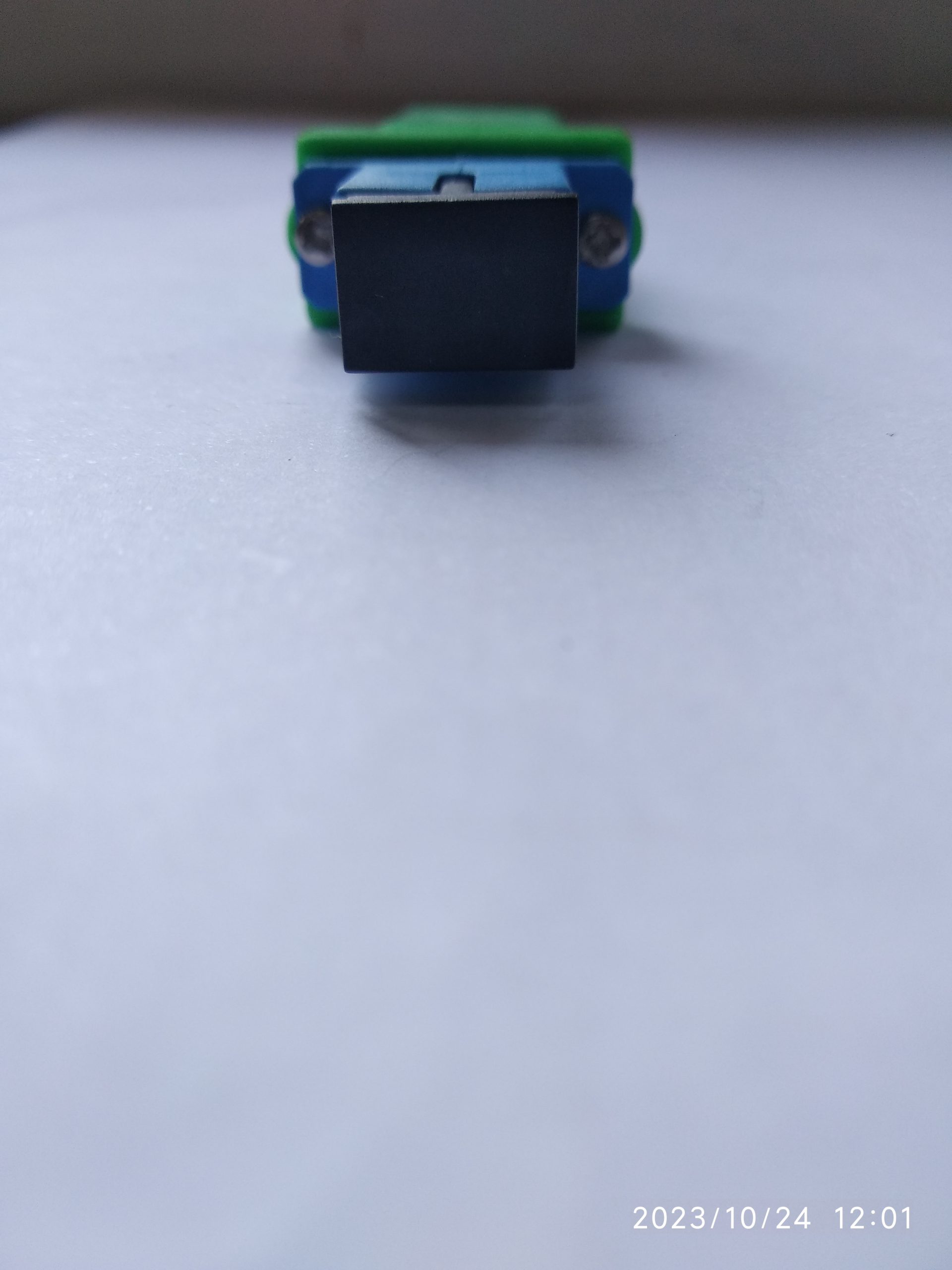

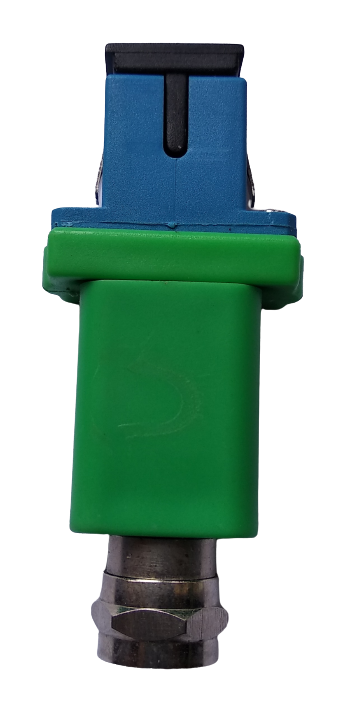

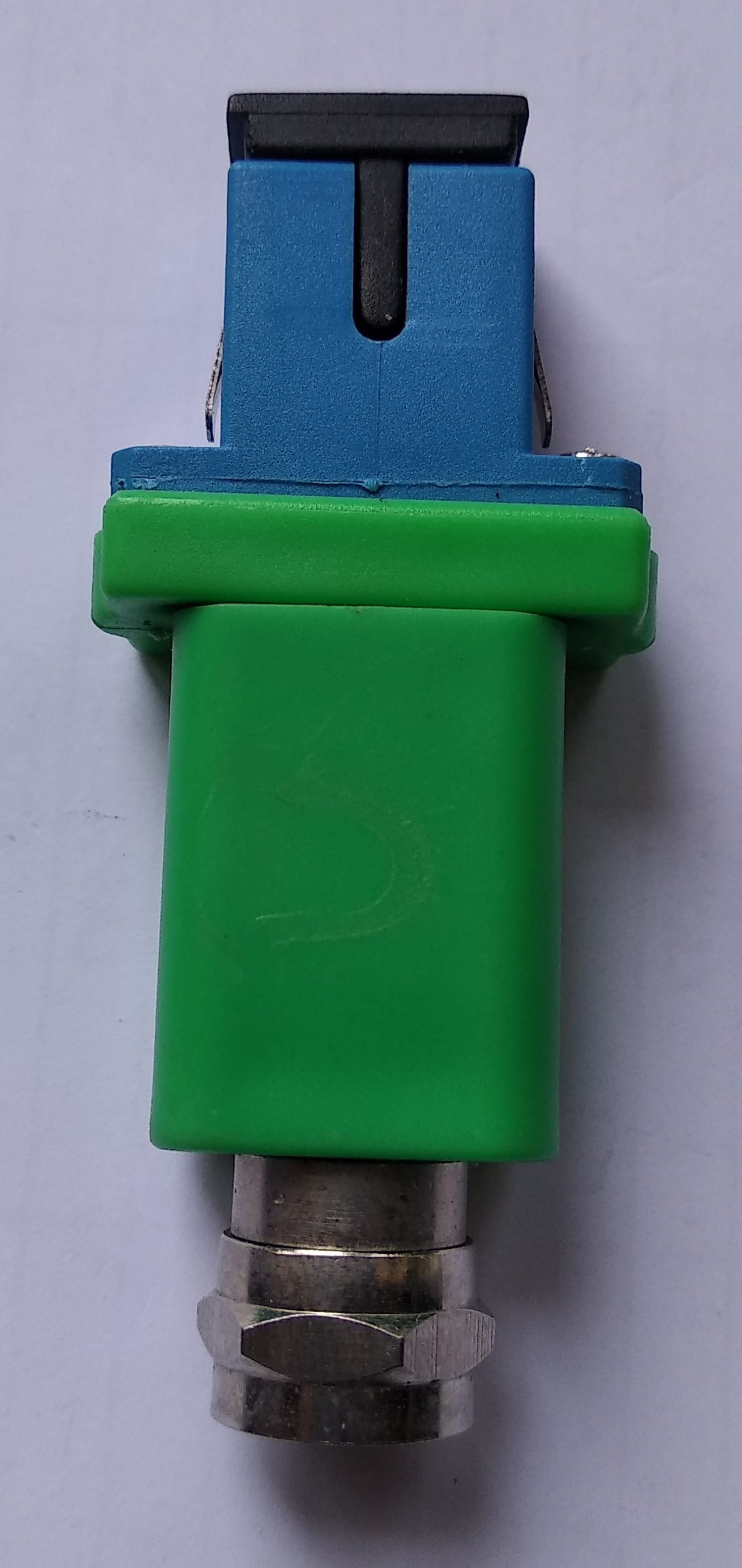

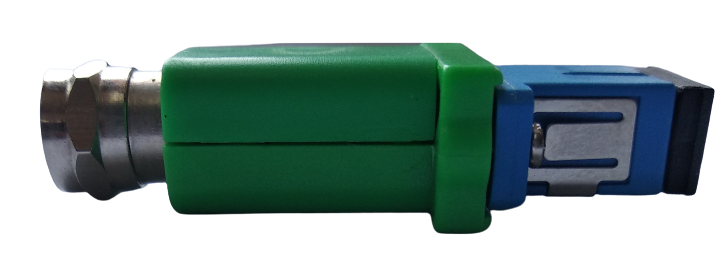

Brief introduction of Ftth Mini fiber optical Node
Ftth Mini fiber optical Node for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically and flexibly apply the integration of three networks, fiber to the home network application. SR100 appearance of enamel, there are two kinds of optical mode selection:
1. SR100: CATV operating wavelength 1260~1620nm.
2. SR100/WF: Built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV Operating wavelength 1550nm.
Product feature
1. No Power required
2. Work bandwidth 45~1050MHz
3. Output Level=68dBμV (Pin=-1dBm)
Main application
1. CATV FTTH
2. Integration of three networks
3. FTTH PON
