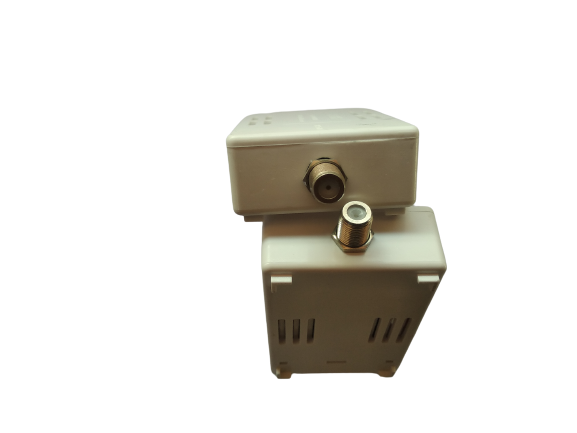

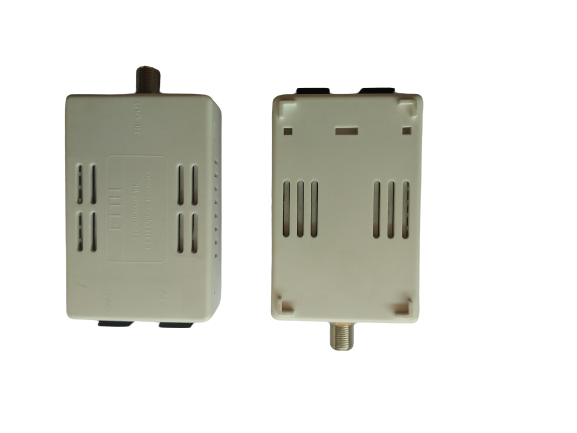

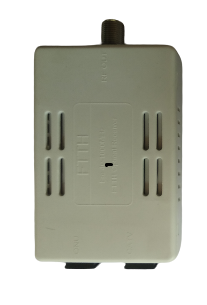

40-100MHz FTTH OPTICAL RECIEVER ONU CATV /RF OUT

400.00

Categories: ,

Features

  • Automatic Gain Control (AGC) circuit
  • RF output level: ≥80dBuV @-10dBm Optical input power
  • Wide optical input range: -18dBm~0dBm

Specifications

Item Parameters
Model FCOR-2080WD
CATV wavelength 1550 nm
PON wavelength 1310/1490nm
Input Optical Power -18~ +0dBm (AGC:-10~0dBm)
Optical Return Loss ≥40dB
Optical Connector SC/APC
Operation Bandwidth 47 ~ 1000MHz
RF Output Level ≥80dBuV
RF Connector F Female
RF Return Loss >12 dB
CNR >43dB
CSO ≥55dB
CTB ≥55dB
Power Supply 12 VDC
Power Consumption 2.0W
Dimension (L*W*H) 73*60*23mm
Weight 0.1KG
Operation Temp. -20 ~ +50°C
Storage Temp. -40 ~ +85°C
