Features

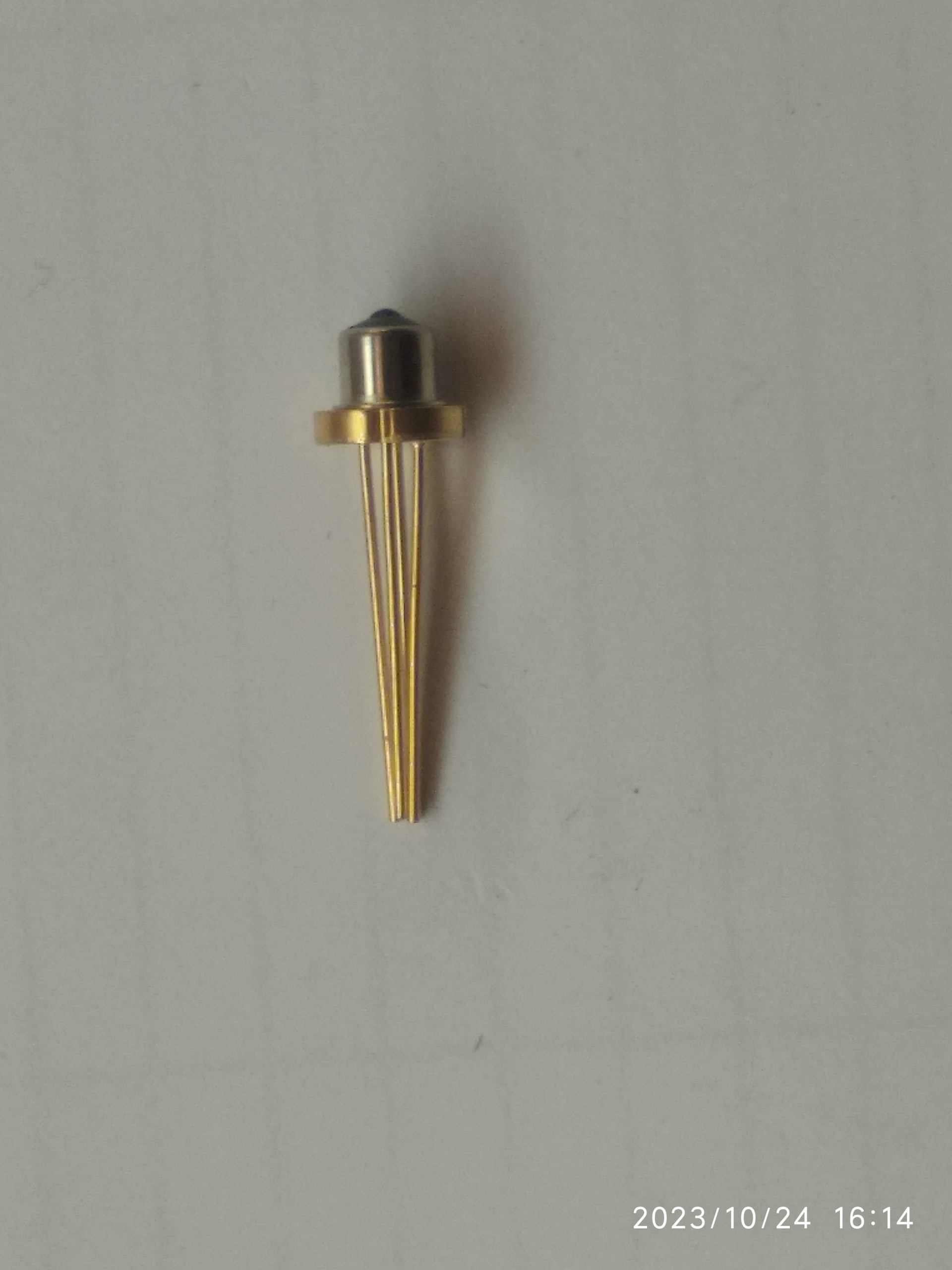

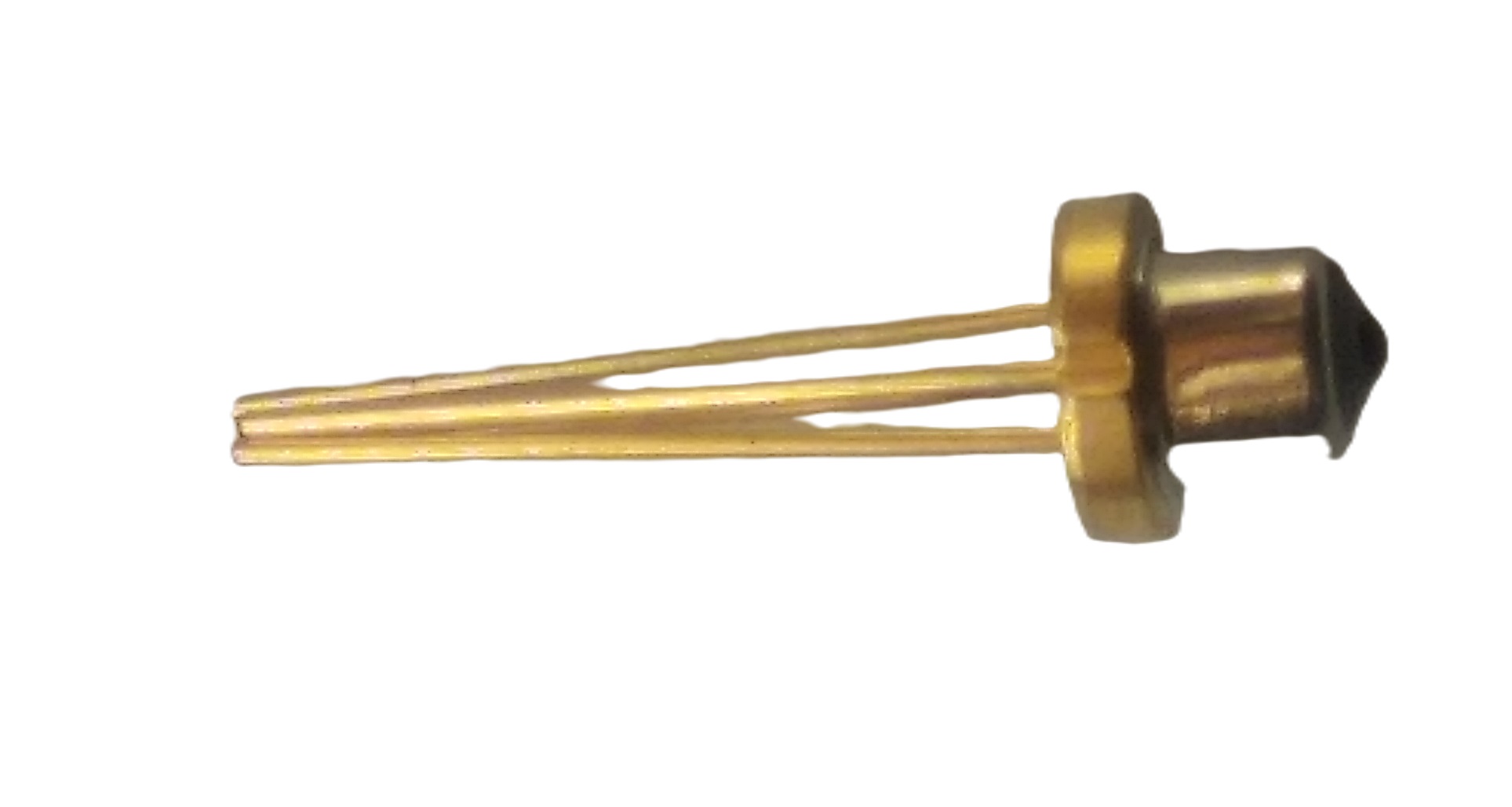

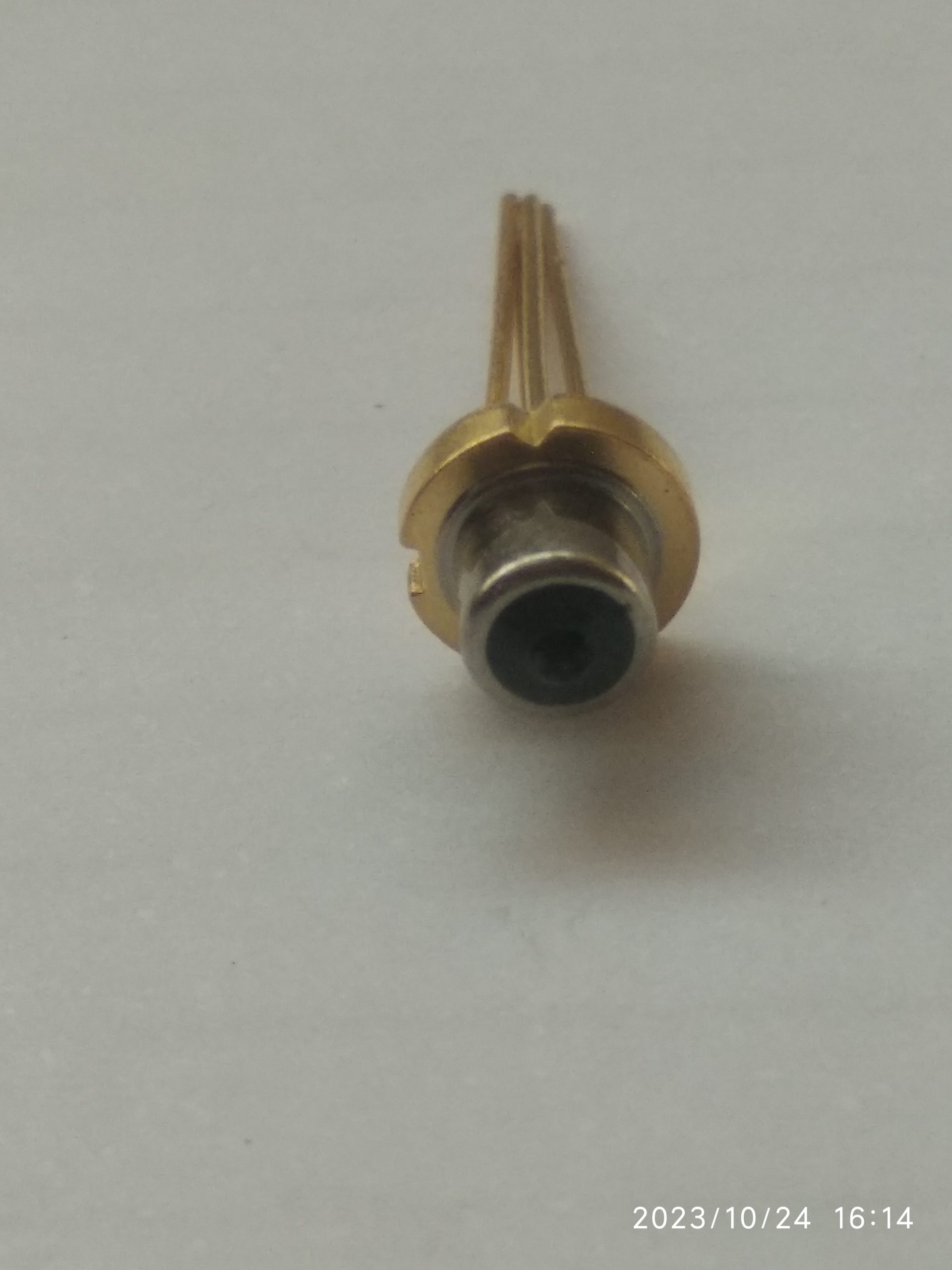

Uncooled InGaAP/InP, MQW DFB Laser Diodes
High Output Power to 2mW
Built-in InGaAs Monitor Photodiode
Wide Operation Temperature 0~70 C without Active Cooling
High-Speed Operation up to 1.25G or 2.5 Gb/s
Built-in Optical Isolator optional
Available with Various Fiber Terminations and Receptacle Types
Compliant with Bellcore TA-NWT-000983
RoHS Compliant Products Available
Specification (Tx1270nm Rx 1330nm) for reference
| Item | Min | Typical | Max | unit |
| Optical Power | 0.5 | 0.6 | 1.0 | mW |
| Central wavelength | 1260 | 1270 | 1280 | nm |
| Threshold current | – | 9 | 10 | mA |
| Operating current | – | Ith+20 | – | mA |
| Modulation Current | 0.1 | – | – | mA |
| Dark current | – | – | 100 | uA |
| Receive wavelength | 1320 | 1330 | 1340 | Nm |
| Sensitivity | – | -16.5 | -15 | dBm |
