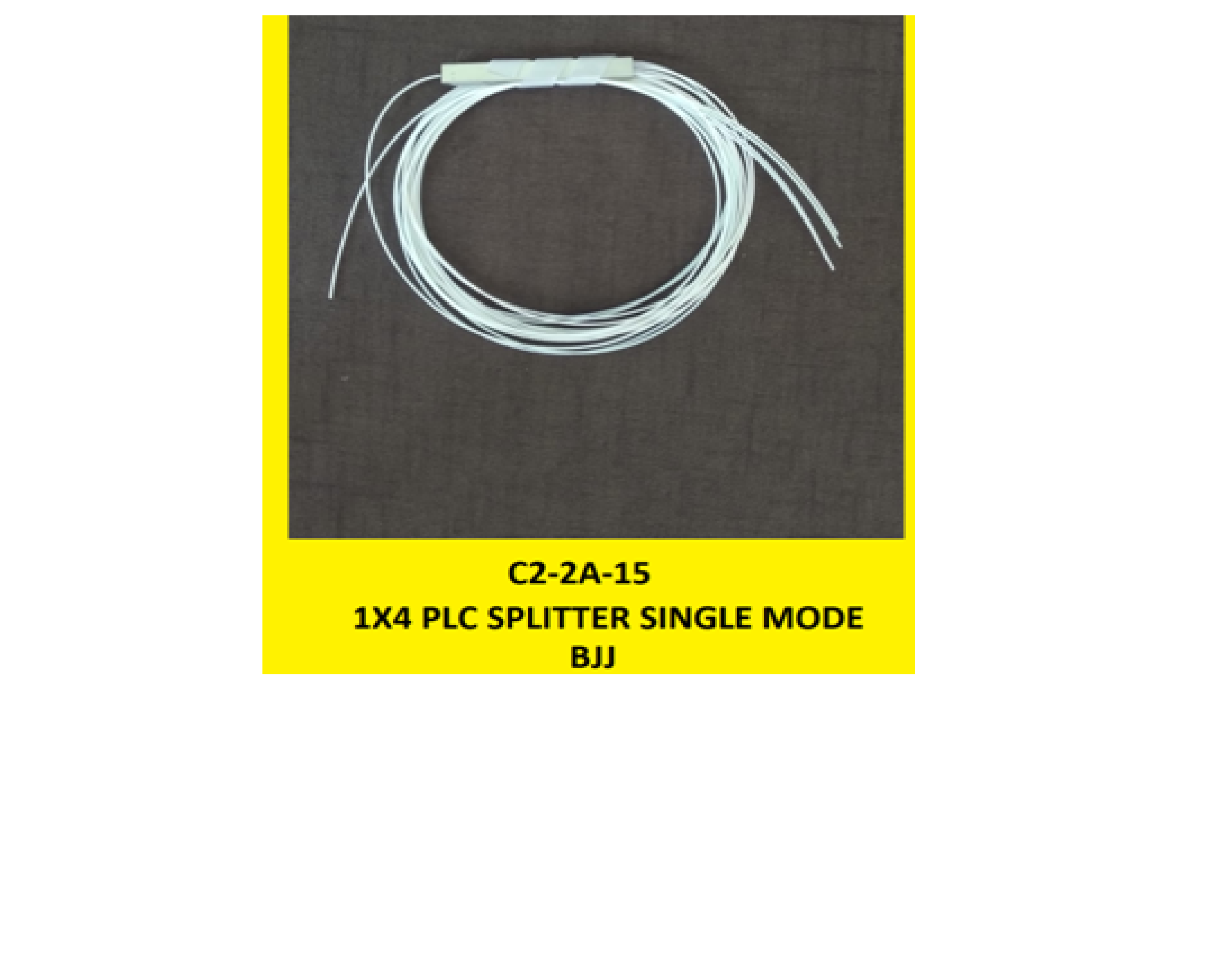

1× 4 Bare Fiber PLC Splitter, Singlemode, 250μm Fiber, No Connector
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Product Highlights
Split Input Signal Evenly into 4 Output Ports
≤7.1dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss
Fully Passive Optical Branching Device
Compact Housing Fits Splice Trays, Wall-mounted Boxes, Optical Distribution Boxes, etc.
1260~1650nm Broad Operating Wavelengths
G.657A1 Bend Insensitive Fibers for Low Bending Loss
Commonly Found in POL, Datacom, LAN, CATV, LCP, FTTx and More Applications
