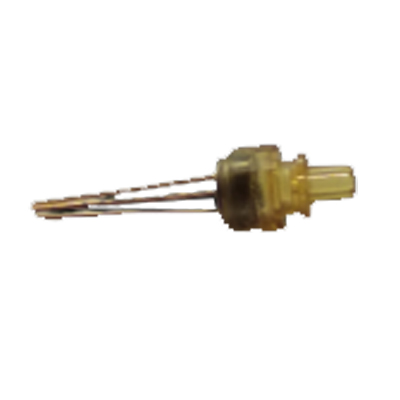

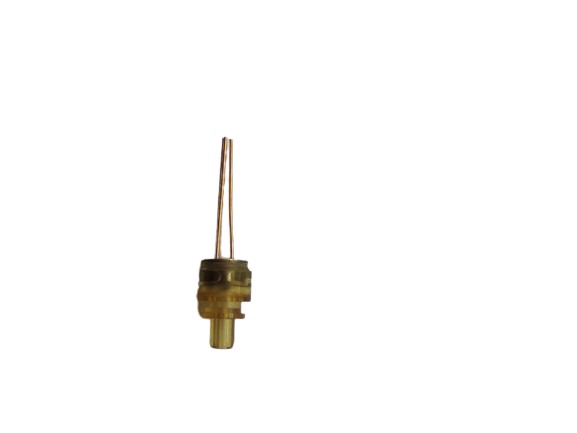

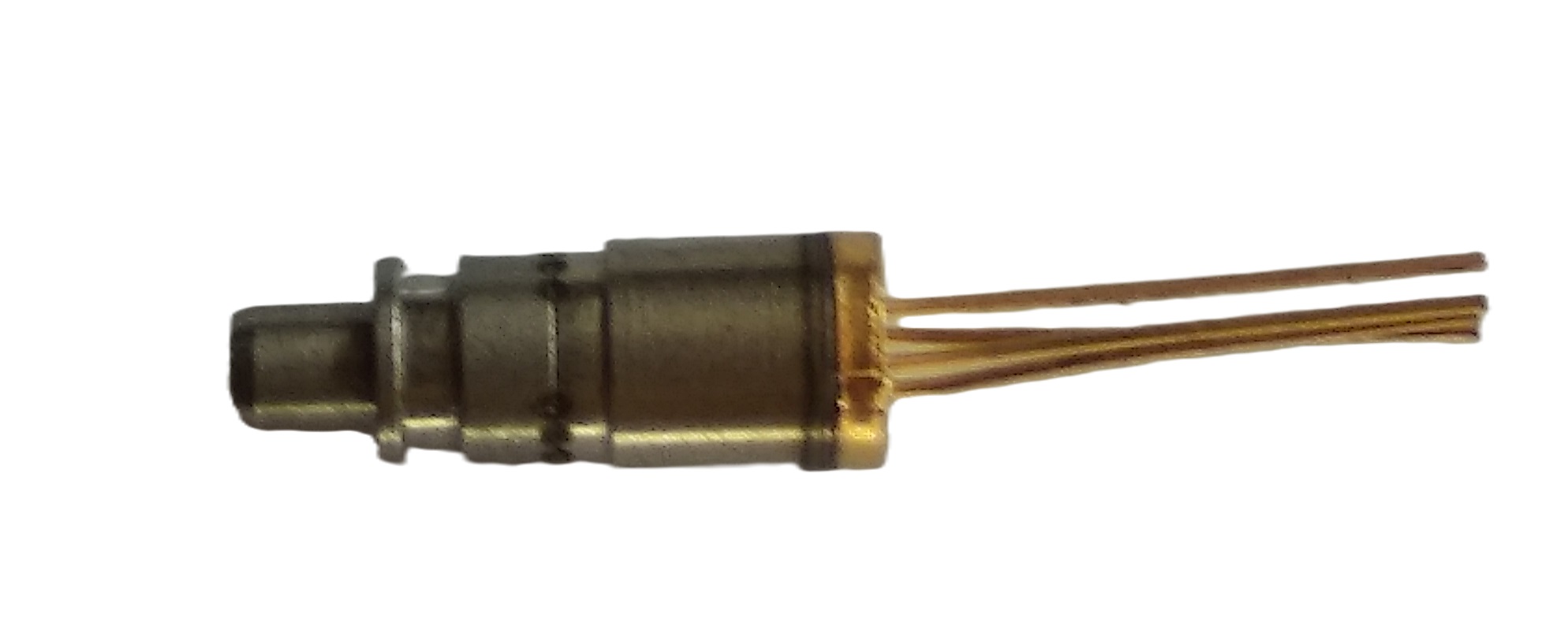

1.25G 1310 NM LC ROSA 5PIN DIODE

350.00

ZHIG31R -L-20 131011550

Features:

  • Uncooled InGaAP/InP, MQW DFB Laser Diodes
  • High Output Power to 2mW
  • Built-in InGaAs Monitor Photodiode
  • Wide Operation Temperature 0~70 C without Active Cooling
  • High-Speed Operation up to 1.25G or 2.5 Gb/s
  • Built-in Optical Isolator optional
  • Available with Various Fiber Terminations and Receptacle Types
  • Compliant with Bellcore TA-NWT-000983
  • RoHS Compliant Products Available
Categories: ,

Specification (Tx1270nm Rx 1330nm) :

Additional Information

Item Min Typical Max unit
Optical Power 0.5 0.6 1.0 mW
Central wavelength 1260 1270 1280 nm
Threshold current 9 10 mA
Operating current Ith+20 mA
Modulation Current 0.1 mA
Dark current 100 uA
Receive wavelength 1320 1330 1340 Nm
Sensitivity -16.5 -15 dBm
