ROUTERS

Showing all 42 results

  • EPON

    ₹820.00 Add to cart

    Product Specification

    Network Speed 1000 Mbps
    Number Of Ports/Pins Single 1GE Port
    Model Name/Number AD2X-1000B
    Color White
    Usage/Application Support EPON and GPON
    Connectivity Type Wired
    Speed 1000Mbps
    Data Rates 1.25Gbps
    Warranty 3 Years
    Distance 20 Km
  • Network Switches

    1X16 PLC SPLITTER SINGLE MODE

     ₹250.00 Add to cart

    1×16 PLC Splitter Features & Specifications

    • High Quality PLC design features a protective metal casing around the fibers
    • PLC splitting mechanism divides input signal into equal parts across all output fibers
    • 900µm loose tube fiber for easy stripping, splicing, or terminating
    • Operating & Storage Temperature: -40 to 85°C (-40 to 185°F)
    • Wavelength: 1260nm / 1650nm



    1×16 PLC Splitter Applications

    • Fiber to The Point (FTTX)
    • Fiber to The Home (FTTH)
    • Passive Optical Networks (PON)
    • Gigabit Passive Optical Networks (GPON)
    • Local Area Networks (LAN)
    • Cable Television (CATV)
    • Test Equipment
  • Network Switches

    1×4 plc SPLITTER SINGLE MODE PLAIN

     ₹130.00 Add to cart
    Specifications:
    Package Style
    Steel Tube, Bare Fiber
    Configuration Type
    1x 4
    Fiber Grade
    G.657A1
    Fiber Mode
    Singlemode
    Connector Type
    None
    Split Ratio
    50/50
    Fiber Type
    Ribbon Fiber
    Steel Tube Dimensions (HxWxD)
    0.16″x1.57″x0.16″ (4x40x4mm)
    Input/Output Fiber Diameter
    250μm
    Input/Output Fiber Length
    1.5m
    Insertion Loss
    ≤ 7.1dB
    Return Loss
    ≥ 55dB
    Loss Uniformity
    ≤ 0.6dB
    Directivity
    ≥ 55dB
    Polarization Dependent Loss
    ≤ 0.2dB
    Temperature Dependent Loss
    ≤ 0.5dB
    Wavelength Dependent Loss
    ≤ 0.3dB
    Operating Bandwidth
    1260~1650nm
    Operating Temperature
    -40 to 85°C (-40 to 185°F)
    Storage Temperature
    -40 to 85°C (-40 to 185°F)
  • ROUTERS

    AC 1200 WIRELESS XPON ONT

     ₹2,150.00 Add to cart

    GPON Standards
    Distance
    Data Rates
    Wireless Standards
    Signal Rate
    Operation Frequency
    Transmit Power
    Recieive Sensitivity
    ITU-T G.984
    20Km Max
    Upstream: 1.25Gbps
    Downstream: 2.5Gbps
    IEEE 802.11 a/n/ac,5GHz
    IEEE 802.11 b/g/n,2.4GHz
    5GHz: Up to 867Mbps, 2.4GHz:Up to 300Mbps
    2.4GHz and 5GHz
    5GHz
    11a 6Mbps : -94.5dBm / 11a 54Mbps: -77dBm
    11ac VHT20: -65.5dBm / 11ac VHT40: -70.5dBm
    11ac VHT80: -62.5dBm / 2.4GHz
    11g 54M: -67dBm / 11n HT20: -64dBm
    11n HT40: -62dBm
    5G
    21.5dBm@6M 11a / 19dBm@54M 11a
    17dBm@MCS8 VHT20 11ac / 17dBm@MCS9 VHT40 11ac
    17dBm@MCS9 VHT80 11ac
    2.4G
    16dbm@MCS7 HT40 / 16dbm@MCS7 HT20
    17dbm@OFDM 54M / 19dbm@CCK 11M



    WAN Type
    DHCP
    Quality of Service
    Port Forwarding
    VLAN
    Access Control
    Firewall Security
    VOiP Features
    Dynamic IP/Static IP/PPPoE
    Server, Client, DHCP Client List, Address Reservation
    WMM, Bandwidth Control
    Virtual Server, Port Triggering, UPnP, DMZ
    802.1Q tag VLAN, VLAN transparent mode/VLAN
    translation mode/VLAN trunk mode
    Parental Control, Local Management Control, Host List,
    Access Schedule, Rule Management
    DoS, SPI Firewall, IP Address Filter/MAC Address Filter/
    Domain Filter IP and MAC Address Binding
    One RJ-11 POTS port for connecting to analog telephones
    Call forwarding, Call waiting,
    Call block, 3-way conference call, etc.

  • ROUTERS

    AC1200 WIRELESS XPON ONT

     ₹2,070.00 Add to cart

    GPON Standards
    Distance
    Data Rates
    Wireless Standards
    Signal Rate
    Operation Frequency
    Transmit Power
    Recieive Sensitivity
    ITU-T G.984
    20Km Max
    Upstream: 1.25Gbps
    Downstream: 2.5Gbps
    IEEE 802.11 a/n/ac,5GHz
    IEEE 802.11 b/g/n,2.4GHz
    5GHz: Up to 867Mbps, 2.4GHz:Up to 300Mbps
    2.4GHz and 5GHz
    5GHz
    11a 6Mbps : -94.5dBm / 11a 54Mbps: -77dBm
    11ac VHT20: -65.5dBm / 11ac VHT40: -70.5dBm
    11ac VHT80: -62.5dBm / 2.4GHz
    11g 54M: -67dBm / 11n HT20: -64dBm
    11n HT40: -62dBm
    5G
    21.5dBm@6M 11a / 19dBm@54M 11a
    17dBm@MCS8 VHT20 11ac / 17dBm@MCS9 VHT40 11ac
    17dBm@MCS9 VHT80 11ac
    2.4G
    16dbm@MCS7 HT40 / 16dbm@MCS7 HT20
    17dbm@OFDM 54M / 19dbm@CCK 11M



    WAN Type
    DHCP
    Quality of Service
    Port Forwarding
    VLAN
    Access Control
    Firewall Security
    VOiP Features
    Dynamic IP/Static IP/PPPoE
    Server, Client, DHCP Client List, Address Reservation
    WMM, Bandwidth Control
    Virtual Server, Port Triggering, UPnP, DMZ
    802.1Q tag VLAN, VLAN transparent mode/VLAN
    translation mode/VLAN trunk mode
    Parental Control, Local Management Control, Host List,
    Access Schedule, Rule Management
    DoS, SPI Firewall, IP Address Filter/MAC Address Filter/
    Domain Filter IP and MAC Address Binding
    One RJ-11 POTS port for connecting to analog telephones
    Call forwarding, Call waiting,
    Call block, 3-way conference call, etc.

  • COUPLERS

    COUPLERS

     ₹160.00 Add to cart

    Characteristics:

    Low insertion loss and excess loss
    Low polarization dependence
    High optical return loss
    Better uniformity
    Environmental Stability and Reliability

    Application:

    FTTH, LAN, PON and Optical CATV
    Local ring net
    Optical fiber communication system
    Optical fiber test equipment
    Optical fiber sensor
    Coupling Ratio/Insertion Loss Conversion Chart



  • GPON OLT

    FIBER LINK GPON ONU IGE+3FE+VOICE+WIFI

     ₹1,400.00 Add to cart
    User Network Interface
    1ge + 3fe + 1pots + WiFi + 1USB
    Transmission Distance
    0-20km
    Transmit Rate
    2.488gbps Downstream; 1.244gbps Upstream
    Products Name
    Gpon Onu
    Optical Port
    1 X Gpon Interface(Sc/APC)
    Receiving Wavelength
    1480~1500 Nm
    Transmitting Wavelength
    1290~1330 Nm
    Transmitting Optical Power
    0.5~5dBm
    Supported Service
    VoIP, Internet, IPTV, WiFi
    Receiving Sensitivity
    -28dBm
    Transport Package
    Original Carton Packing
    Specification
    180*38*127mm
    Origin
    China
  • GPON OLT

    GEPON ONU HSGQ-X422DW

     ₹1,800.00 Add to cart

    Product Specifications

    ShopeeLaptops & ComputersNetwork ComponentsRouters / Repeaters
    HSGQ

    Built-in

    2

    4

    4G, 5G

    3 Months

    Supplier Warranty

    1000Mbps
  • GPON OLT

    GPON 1GE HG 8310M

     ₹700.00 Add to cart

    Features

    Port: 1GE.

    Plug-and-play (PnP): Internet and IPTV services can be deployed by one click on the NMS and on-site configuration is not required.

    Remote diagnosis: Remote fault locating is implemented by the precise positioning feeder and drop cables, and identifying problems of software and hardware.

    High speed forwarding: GE line rate forwarding.

    Applications & Benefits

    High-performance forwarding capability provides an optimal terminal solution and future oriented service supporting capabilities for FTTH deployment.

    Plug-and-play makes service provisioning easier and more quickly.

    The setup interface is in English language.



  • GPON OLT

    GPON 2FE HG8321R

     ₹800.00 Add to cart
    The HG8321R an optical network terminal (ONT), is a high-end home Bridge in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.



    The HG8321R: 2LAN+1POT



    The EG8120L features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.



    The EG8120L Provide English firmware and EU, US, UK, AU Power adapter for your choice.


    Features:

    · GPON Interface: 1 * GPON interface (SC/UPC)

    · Transmission Rate: 2.488Gbps downstream and 1.244Gbpsupstream

    · LAN: 2*10/100 Base-T interfaces with RJ-45 connector

    · VOIP: 1
  • EPON

    GPON OLT (1GE+IFE +1POTS +WIFI)

     ₹1,450.00 Add to cart

    Product Specifications

    BrandADOPTConnectivity TypeWireless or Wi-FiColorGreyModel Name/NumberAD2X-1111Network SpeedUpto 300 MbpsRF Input ConnectorYesCountry of OriginMade in IndiaMinimum Order Quantity1 Piece



    Product Brochure

    View Now

    Production Capacity

    1000

    Delivery Time

    SAME DAY

    Packaging Details

    STANDARD PACKING



    Product Specification

    Network Speed 300 Mbps
    Band Type Single Band
    Frequency 2.4 GHz
    RF Input Connector Yes
    Usage/ Application Residential
    Color BLACK
  • GPON OLT

    GPON ONU 1GE HS 8145C

     ₹1,500.00 Add to cart
  • CATV

    Gpon ONU Bosa with Pigtail for SFP Module

     ₹280.00 Add to cart

    Product Specification

    Warranty 1 year
    Model Name/Number 850nm multimode
    Minimum Order Quantity 10 Piece
  • GPON OLT

    GPON ONU HG8546M

     ₹1,400.00 Add to cart
  • GPON OLT

    GPON terminal (H88546V5)

     ₹1,700.00 Add to cart

    PON Interface
    Class B+
    Wavelength
    Tx 1310nm, Rx 1490nm
    RX sensitivity
    -27dBm
    LAN
    2*10/100/1000Mbps adaptive Ethernet ports, full/half duplex
    Power Specification



    Power adapter input: 180~240V AC, 50Hz~60 Hz
    System power supply: 11V~14V DC, 1.5 A
    Power Consumption
    Static power consumption: 7.5W
    Maximum power consumption: 18.5W
    Working Environment
    Working temperature: 0??? ~ +40???
    Environment humidity: 5% RH ~ 95% RH (non-condensing)
    Dimension (L*W*H)
    185*252*43mm
    Net weight

    · size (height * width * depth, unit: mm):176*138*28
    · Weight(Contain Power adapter):less than 500g
    · Power input: AC 110-240V
    · power: 14W
    · Working environment temperature: 0 ~ 40
    · Working environment humidity: 5~ 95% (non condensing)



  • GPON OLT

    GPON terminal F670

     ₹1,300.00 Add to cart

    Supported service: VoIP, Internet, IPTV
    · GPON: 8 T-CONTs, 32 GEM Ports
    · VLAN: 802.1Q, 802.1P, 802.1ad
    · MAC address table: 1k
    · L3 function: DHCP server/Client, DNS Client, NAT
    · IPv6: Dual Stack, DS-Lite
    · VoIP: SIP/H.248, G.711/G.722, T.30/T.38
    · Wi-Fi: 4 SSIDs, 2×2 MIMO 2.4G, 3×3 MIMO 5G , WPS
    · Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK
    · Multicast: IGMP v1/v2/V3 Snooping/Proxy, MLD v1 Snooping

  • GPON OLT

    GPON terminal HG 8010H

     ₹680.00 Add to cart
    Network interface GPON (SC/APC)
    User interface Gigabit Ethernet port
    LEDs POWER / PON / FATE / LAN
    Power supply 11 – 14 V DC, 0.5 A
    Power supply input 100 – 240 V AC, 50 – 60 Hz
    Average power consumption 3 W
    Maximum power consumption 3,5 W
    Dimensions 82x90x27 mm
    Weight 500 g
    Permissible operating temperature 0 to 40 degrees C
    Permissible air humidity 5%-95% RH non-condensing
    GPON port Class B+

    Sensitive reception: -27 dBm

    Wavelength: 1310 nm upstream, 1490 nm downstream

    Wavelength blocking filter (WBF)

    Flexible mapping between GEM and TCONT ports

    Authentication by SN or password, G.984.3

    Two-way FEC

    SR-DBA and NSR-DBA
    Ethernet port Port based VLAN tags

    Transparent 1:1 VLAN, N:1 VLAN and VLAN

    QinQ VLAN

    MAC address learning

    Transparent transmission of IPv6 packets in Layer2 layer
    QoS function Capacity limit per port

    Priority 802.1p

    SP / WRR / SP+WWW

    Broadcast packet limit

    Flow mapping based on VLAN ID, port ID or 802.1p
    Multicast IGMP v2 / v3 snooping

    MLD v1 / v2 snooping

    Fast leave

    VLAN tag translation, transparent transmission, removal of multicast packets in downstream

    Limit of IGMP / MLD protocol packages
    Management OMCI news

    Active / passive ONT rogue detection function

    PPPoE / DHCP imulation testing

    OMCI / Web UI

    Software backup and rollback

    802.1ag Ethernet OAM

    Measurement and diagnosis of the optical connection

    Checking the loopback
    Safeguards Filtering of MAC addresses
    Saving energy Energy-saving diodes

    Reduction of power consumption by unused components

    COCV4

  • GPON OLT

    GPON TERMINAL HS8546V5

     ₹1,600.00 Add to cart



    Model HS8546V5
    Working environment Operating temperature: 0ºC to 40ºC
    Environment humidity: 5% to 95% (noncondensing)
    Typical power consumption 8 W
    Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
    System power supply: 11–14 VDC, 2 A
    WLAN 2.4GHZ: 802.11n 5GHZ: 802.11ac
    Network-side Port GPON
    User-side Ports 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB
    Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
    Dimensions (length x width x height) 173 mm x 120 mm x 30 mm
    Weight About 1 Kg

    Features

    • Interface type: 1POTS+4GE+1USB+ dual-band (2.4GHz & 5GHz) Wi-Fi.
    • Flexible application: PC, STB and other home terminals can be arbitrarily interpolated on the Ethernet port; SIP and H.248 are supported by both protocols, and it is convenient to interface with soft switches.
    • Plug and Play: Supports remote automatic distribution of voice, broadband, and multicast services through the OMCI protocol and TR069, without on-site configuration.
    • Remote diagnosis: support POTS port line test, call simulation, PPPoE dial-up simulation, easy remote fault location.
    • Green energy saving: It adopts high integrated SOC chip, and integrates PON, voice, gateway and LSW modules on a single chip, saving 25% energy.



  • GPON OLT

    GPON WIFI ONU IGE+3FE+VOICE+WIFI

     ₹2,000.00 Add to cart

    Product Specifications

    Type
    2G
    Connectivity Type
    Wired
    Color
    Black
    Number Of Ports/Pins
    2
    Weight
    .36KG
    Brand
    ALPHION
    Voltage
    12V 1.5AMP.
    Model Name/Number
    ASEE-1443
    Minimum Order Quantity
    5
    Production Capacity

    200

  • GPON OLT

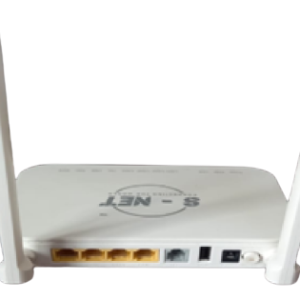

    GPON ZC-520

     ₹1,800.00 Add to cart

    Specifications

    Technical item ZC-520 XPON 1GE+3FE+1USB+1POTS+WiFi
    PON 1 G/EPON port (EPON PX20+ and GPON Class B+)

    Receiving sensitivity: ≤-28dBm

    Transmitting optical power: 0~+4dBm

    Transmission distance: 20KM
    LAN Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s,MAC address learning
    POTS . SIP/ H.248
    . Call waiting, inconditional Call Forward, Call Forward if Busy, Call Forward if no reply and Three-party calls.
    . G.711A/U, G.729 and G.722 encoding/decoding
    . T.30/T.38/G.711 fax mode
    . SDP protocol (RFC 2327 and RFC 4566)
    . DTMF
    WiFi Feature . IEEE 802.11 b/g/n (2.4G)
    . 2 × 2 MIMO
    . Antenna gain: 5 d Bi, double external antenna
    . Air interface rate:300 Mbit/s
    . WMM
    . Multiple SSIDs
    . WPS
    USB 1xUSB2.0 for storage
    LED 12, For Status of Power, PON, LOS, LAN1~4 ,TEL,USB,WiFi,WPS.
    Operating condition Temperature: 0℃～+50℃

    Humidity: 5%～90%(non-condensing)

    Storing

    condition

    		 Temperature: -30℃～+75℃

    Humidity :5%～90%(non-condensing)
    Power supply DC 12V,1/1.5A
    Power consumption ≤10W
    Dimension 3.5CM*16.3CM*11.4CM(L×W×H)
    Net weight 0.25Kg



  • ROUTERS

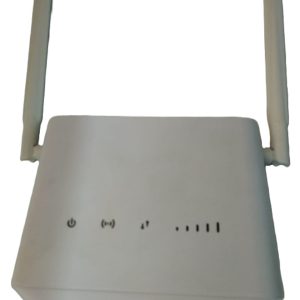

    LTE WIRELESS ROUTER ZLT S12

     ₹2,800.00 Add to cart

    Product Features

    • Support TDD-LTE / FDD-LTE
    • Support 3GPP Release 9 compliant
    • Support MIMO2*2 1TX/2RX
    • Support UE Category 4
    • Support QoS service flow initiated by CPE
    • Support VOIP/VoLTE/CSFB
    • Support SIP ALG
    • Support USIM Slot (Mini SIM, 2FF)
  • ROUTERS

    ONU+ OTT FT502XW-R10X-R910

     ₹2,200.00 Add to cart
    Product Name Product Model Descriptions
    ONU+OTT+WIFI FT502XW-R10X-R910 1*10/100/1000M and 1*10/100M Ethernet interface,1 EPON/GPON adaptive interface, 1 HDMI interface, 1 AV interface, support 802.11b/g/n wifi function, plastic casing, external power supply adapter

    MAIN FEATURES

    • Provide Internet, IPTV service
    • Support 802.11b/g/n standard wifi access
    • Support OMCI+TR069 management method
    • Support multiple multicast modes
    • EMS network management based on SNMP
    • Support IPv4/IPv6 Dual Stack
    • Support multiple internet modes, DHCP/PPPOE/Static IP/Bridge WAN
    • Support port forwarding
    • Support L3 routing



  • Network Switches

    OPTICAL FIBER PATCH CORD LC/LC 1M

     ₹50.00 Add to cart
  • Network Switches

    PATCH CORD

     ₹70.00 Add to cart

    About this item

    • SC/UPC to SC/UPC Single Mode simplex 3 Meter Fiber Optic Patch Cord (Yellow)
    • Designed for exceptional connectivity for your network applications.
    • Features precision-engineered SC/UPC connectors on both ends for minimal insertion loss and optimal signal transmission.
    • Single-mode fiber construction supports high-bandwidth data transfer up to 10 Gigabit Ethernet.
    • Durable PVC jacket protects the cable from wear and tear.
    • Vibrant yellow color for easy identification of network connections.
  • ROUTERS

    PATCH CORDS

     ₹65.00 Add to cart

    In order to make an Ethernet connection sturdy, it is a must that you use the most cutting-edge peripherals. This DBS Patch Cord gives you incredible results and makes your connections steadfast.

    Made with heavy-duty material and crafted to perfection, this equipment gives you matchless outcomes in industrial as well as residential environments. It is easy to install and makes the transmissions seamless and sturdy.

  • Network Switches

    PATCH CORDS

     ₹60.00 Add to cart
  • Network Switches

    PATCH CORDS

     ₹65.00 Add to cart
  • Network Switches

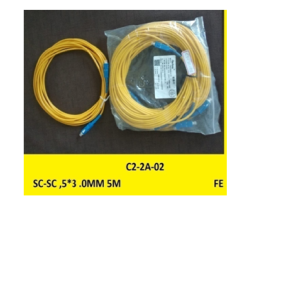

    PATCH CORDS CATV SM-SC/APC-SC/APC 5M

     ₹60.00 Add to cart

    Product Specification

    Type FIBER PATCH CORD
    Material PVC
    Color Yellow
    Mode Type Single Mode
    Connectors SC APC
    Usage/Application Broadband Network
    Wire Size 5m
    Connector Type SC
    Usage CATV Network
    Fiber Optic Patchcord Type Single Mode
    Fibre Core Simplex
    Fibre Diameter 3mm
    Minimum Order Quantity 5
  • Network Switches

    PATCH CORS

     ₹50.00 Add to cart
  • Networking

    PLC SPLITTERS

     ₹70.00 Add to cart

    Technical Details

  • ROUTERS

    PLC SPLITTERS

     ₹800.00 Add to cart

    1×16 PLC Splitter Features & Specifications

    • High Quality PLC design features a protective metal casing around the fibers
    • PLC splitting mechanism divides input signal into equal parts across all output fibers
    • 900µm loose tube fiber for easy stripping, splicing, or terminating
    • Operating & Storage Temperature: -40 to 85°C (-40 to 185°F)
    • Wavelength: 1260nm / 1650nm



    1×16 PLC Splitter Applications

    • Fiber to The Point (FTTX)
    • Fiber to The Home (FTTH)
    • Passive Optical Networks (PON)
    • Gigabit Passive Optical Networks (GPON)
    • Local Area Networks (LAN)
    • Cable Television (CATV)
    • Test Equipment
  • CATV

    PLC SPLITTERS

     ₹360.00 Add to cart

    FEATURES :

    STAINLESSS STEEL TUBE PACKAGE, SAVE INSTALLATION SPACE

    SINGLE MODE SMF -28e, BEND IN SENSITIVE G657, A2 FIBER

    1 OR 1.5 M OF FIBER LENGTH

    LOW POLARIZATION DEPENDENT LOSS

    EXCELLENT ENVIRONMENTAL STABILITY



    APPLICATIONS:

    CATV NETWORKS

    LAN

    CATV

    PON

    TELECOMMUNICATION SYSTEMS

  • Network Switches

    PLC SPLITTERS WITH CONNECTOR 1X2 PLC SINGLE MODE SPLITTER

     ₹160.00 Add to cart
    Specifications:
    Package Style
    Mini Module
    Configuration Type
    1x 2
    Fiber Grade
    G.657A1
    Fiber Mode
    Singlemode
    Connector Type
    SC/APC
    Split Ratio
    50/50
    Input/Output Fiber Diameter
    900μm
    Input/Output Fiber Length
    1.5m
    Insertion Loss
    ≤ 4.0dB
    Return Loss
    ≥ 55dB
    Loss Uniformity
    ≤ 0.4dB
    Directivity
    ≥55 dB
    Polarization Dependent Loss
    ≤ 0.2dB
    Temperature Dependent Loss
    ≤ 0.5dB
    Wavelength Dependent Loss
    ≤ 0.3dB
    Operating Bandwidth
    1260~1650nm
    Steel Tube Dimensions (HxWxD)
    0.16″x1.97″x0.28″ (4x50x7mm)
    Temperature
    Operating -40 to 85°C (-40 to 185°F)
    Storage -40 to 85°C (-40 to 185°F)
  • Network Switches

    PLC SPLITTERS WITH CONNECTOR 1X4 SINGLE MODE SPLITTERS -UPC

     ₹200.00 Add to cart
    Specifications :
    Package Style
    Mini Module
    Configuration Type
    1x 4
    Fiber Grade
    G.657A1
    Fiber Mode
    Singlemode
    Connector Type
    SC/APC
    Split Ratio
    50/50
    Input/Output Fiber Diameter
    900μm
    Input/Output Fiber Length
    1.5m
    Insertion Loss
    ≤ 7.3dB
    Return Loss
    ≥ 55dB
    Loss Uniformity
    ≤ 0.6dB
    Directivity
    ≥ 55dB
    Polarization Dependent Loss
    ≤ 0.2dB
    Temperature Dependent Loss
    ≤ 0.5dB
    Wavelength Dependent Loss
    ≤ 0.3dB
    Operating Bandwidth
    1260~1650nm
    Steel Tube Dimensions (HxWxD)
    0.16″x1.97″x0.28″ (4x50x7mm)
    Temperature
    Operating -40 to 85°C (-40 to 185°F)
    Storage -40 to 85°C (-40 to 185°F)
  • Network Switches

    PLC SPLITTERS WITH CONNECTOR 1X8 PLC SPLITTERS SC/APC PLAIN

     ₹350.00 Add to cart
  • Network Switches

    PLC SPLITTERS WITH CONNECTORS 1X8 PLC SPLITTERS SC/APC

     ₹380.00 Add to cart

    SPECIFICATIONS:
    Item 1×8
    Fiber Type G657A1
    Working Wavelength 1260nm~1650nm
    Standard Insertion Loss (dB) ≤10.7
    Uniformity (dB) ≤0.8
    PDL (dB) ≤0.3
    Wavelength Dependent Loss (dB) ≤0.8
    Return Loss (dB) ≥55
    Directivity (dB) ≥55
    Operating Temp. Range -40℃~ +85



    PRODUCT FEATURES
    • Low insertion loss, Low PDL and High reliability
    • High return loss and good repeatability
    • Wide wavelength range
    • Excellent channel-to-channel uniformity
    APPLICATIONS
    • LAN, WAN and Metro Networks
    • FTTH project & FTTX Deployments
    • CATV System
    • GPON, EPON
    • Fiber Optic Test Equipment
    • Data-base Transmit Broadband Ne

  • Network Switches

    SPLITTERS plain 1X8 PLC SPLITTER

     ₹150.00 Add to cart

    1×8 PLC Splitter Features & Specifications

    • High Quality PLC design features a protective metal casing around the fibers
    • PLC splitting mechanism divides input signal into equal parts across all output fibers
    • 900µm loose tube fiber for easy stripping, splicing, or terminating
    • Operating & Storage Temperature: -40 to 85°C (-40 to 185°F)
    • Wavelength: 1260nm / 1650nm



    1×8 PLC Splitter Applications

    • Fiber to The Point (FTTX)
    • Fiber to The Home (FTTH)
    • Passive Optical Networks (PON)
    • Gigabit Passive Optical Networks (GPON)
    • Local Area Networks (LAN)
    • Cable Television (CATV)
    • Test Equipment
  • Network Switches

    SPLITTERS WITH CONNECTORS 1X16 PLC SINGLE

     ₹420.00 Add to cart
    Specifications:
    Package Style
    Mini Module
    Configuration Type
    1x 16
    Fiber Grade
    G.657A1
    Fiber Mode
    Singlemode
    Connector Type
    SC/APC
    Split Ratio
    50/50
    Insertion Loss
    ≤ 13.7dB
    Return Loss
    ≥ 55dB
    Loss Uniformity
    ≤ 1.2dB
    Directivity
    ≥ 55dB
    Polarization Dependent Loss
    ≤ 0.3dB
    Temperature Dependent Loss
    ≤ 0.5dB
    Wavelength Dependent Loss
    ≤ 0.3dB
    Operating Bandwidth
    1260~1650nm
    Dimensions (HxWxD)
    3.15″x0.79″x0.24″ (80x20x6mm)
    Temperature
    Operating -40 to 85°C (-40 to 185°F)
    Storage -40 to 85°C (-40 to 185°F)
  • ROUTERS

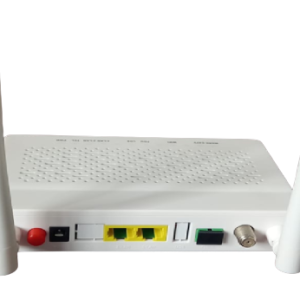

    XPON ONT IGE+IFE+WIFI+CATV

     ₹2,300.00 Add to cart

    Features:

    Ø HGU ONU, bridging and routing modes can be set

    Ø Dual mode ONU compatible with popular EPON and GPON OLT

    Ø Support loop detection, IGMP, IGMP snooping

    Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

    Ø Support port speed, support for storm suppression

    Ø Support 802.11n 2T2R speed up to 300Mbps

    Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.

    Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)

    Ø Support Telnet, CLI, OMCI/OAM and Web management

    Ø Support NAT, Firewall function

    Ø Support remote software upgrade



    Items Unit Specifications
    PON standard. EPON IEEE802.3ah, GPON ITU-T G.984.x
    Optical interface SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM
    Speed Gbps GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
    Wavelength nm Tx1310, Rx 1490, CATV 1550
    Interface data

    1FE 10/100Mbps

    1GE 10/100/1000Mbps

    Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
    Wireless Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna
    Indicator LED PWR, PON, LOS, WiFi, GE, FE, CATV
    Operating condition ℃ Operating temp: -5 ~ +55
    Storing condition ℃ Storing temp: -30 ~ +60
    Humidity % 10~90(non-condensing)
    Power supply V DC 12V,0.5A adapter
    Power consumption W ≤6
    Dimension mm 140mm×116mm×34mm(L×W×H)
    Net weight Kg 0.3
  • ROUTERS

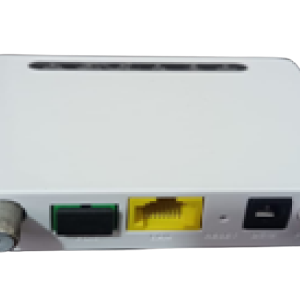

    XPON ONT IGE+ CATV

     ₹2,100.00 Add to cart

    Specification:

    Technical Item

    Details
    PON interface

    1 GPON/EPON port(EPON PX20+ and GPON Class B+)

    Upstream: 1310nm, Downstream: 1490nm

    SC/APC connector

    Receiving sensitivity: ≤-27dBm

    Transmitting optical power: 0~+4dBm

    Transmission distance: 20KM
    LAN interface

    10/100/1000Mbps auto adaptive Ethernet interfaces.

    10/100/1000M Full/Half, RJ45 connector
    CATV Interface

    RF, optical power : +2~-18dBm

    Optical reflection loss: ≥45dB

    Optical receiving wavelength: 1550±10nm

    RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

    RF output level: ≥ 82dBuV(-7dBm optical input)

    AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

    MER: ≥32dB(-14dBm optical input), >35(-10dBm)
    LED

    6 LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN
    Push-Button

    2, for Function of Power on/off, Reset
    Operating condition

    Temperature : 0℃~50℃

    Humidity :10%~90%(non-condensing)
    Storing Condition

    Temperature : -40℃~+60℃

    Humidity :10%~90%(non-condensing)
    Power supply

    DC 12V/1A
    Power Consumption

    <3W
    Net Weight

    <0.2kg
  • ROUTERS

    XPON ONU 3212GDER

     ₹2,100.00 Add to cart
  • ROUTERS

    XPON SINGLE BAND ONU SNGT-XPON SINGLE BAND

     ₹750.00 Add to cart
    • HGU ONU, bridging and routing modes can be set
    • Dual mode ONU compatible with popular EPON and GPON OLT
    • Support loop detection, IGMP, IGMP snooping
    • 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
    • Support port speed, support for storm suppression
    • Support 802.11n 2T2R speed up to 300Mbps
    • Support VoIP protocol: SIP?IMS-SIP
    • Support No-auth, WEP, WPA-PSK and WPA2-PS
    • Support Telnet, CLI, OMCI/OAM and Web management
    • Support NAT, Firewall function
    • Support remote software upgrade
    • Warrenty period: 2 years
electronikahubnewlogo
SOCIAL MEDIA
Facebook Whatsapp Youtube Instagram Skype
IMPORTANT LINKS
CONTACT US
REACH US
Copyright © 2024 ElectronikaHub | All RIghts Reserved by Deepak Overseas
payments-qk9s3qte42ss2xbz977oyrrug9thg0b1rwi9iug7i8
Shopping Cart

[yith_wcan_filters slug="default-preset"]

Scroll to Top
