FTTH
-
Fiber Tools ₹1,500.00 Add to cartPower Source Battery Powered Style Compact Colour MULTI Item Weight 259 Grams Item Dimensions LxWxH 18 x 8.5 x 5 Centimeters Specification Met CE Measurement Type Optical Power Meter Item Weight 259 g Product Dimensions 18 x 8.5 x 5 cm; 259 Grams Item model number POWER METER (NORMAL) Item Height 5 Centimeters Item Width 8.5 Centimeters -
CATV1.25G 1310 NM LC ROSA 5PIN DIODE
₹350.00 Add to cartZHIG31R -L-20 131011550
Features:
- Uncooled InGaAP/InP, MQW DFB Laser Diodes
- High Output Power to 2mW
- Built-in InGaAs Monitor Photodiode
- Wide Operation Temperature 0~70 C without Active Cooling
- High-Speed Operation up to 1.25G or 2.5 Gb/s
- Built-in Optical Isolator optional
- Available with Various Fiber Terminations and Receptacle Types
- Compliant with Bellcore TA-NWT-000983
- RoHS Compliant Products Available
-
-
-
-
-
-
-
-
-

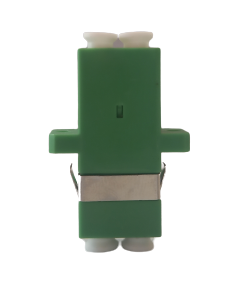

CATVADAPTER Duplex LC/APC LS Single-Mode Or multimode
₹25.00 Add to cartProduct Highlights
≤0.2dB(Typical) Low Insertion LossColor Coded for Rapid Fiber ManagementOne-piece Dust Cap Keeps Adapter’s Interior Clean from DustStainless Steel Clips for Tool-less Snap-in InstallationAvailable in A Variety of Connector TypesCan be Used with M2 Model ScrewSpecifications:Connector TypeLC-LCBody StyleDuplexPolish TypeAPCFiber ModeOS2 9/125μmInsertion Loss≤0.2dBDurability1000 timesMounting TypeFull flangedAlignment Sleeve MaterialCeramicColorGreenFlammability RateUL 94V-0Package Quantity10RoHS Compliancy StatusCompliant -
CATVADAPTER Quadruple LC/UPC LC/UPC
₹35.00 Add to cartTechnical Parameters
Insertion Loss ≤0.3dB Durability >1000 times Operating Temp -40~70°C Material Plastic Application FTTx,LAN,CATV,Telecom Certification RoHS,CE Connector Type SC Polish Type UPC; APC Fiber Mode Singlemode; Multimode; OM3; OM4; OM5 Color SM:Blue,Green MM:Beige OM3:Aqua OM4:Violet -
-
Fiber CleaverCleaver OS-9L
₹15,000.00 Add to cartSpecificationApplicable FibersSingle-Core Optical FiberApplicable Fiber DiameterCoating: φ0.25,φ0.9,φ2.0,φ3.0,3×2; bare: 125μmCleaved Fiber Length5~16mm(φ0.25);10~16mm(φ0.9)Dimension90mm(W)×65mm(D) ×55mm(H)Weight259gCleaving Angle≤0.5°Blade Service Life50,000 times -
FTTHCOUPLER
₹110.00 Add to cartMaterial Fiber Usage/Application CATV Systems,FTTX (FTTP, FTTH, FTTN, FTTC) Fiber Type G657A Operating Temperature -40 DegreeC – 85 DegreeC -
CATVCOUPLERS
₹110.00 Add to cart1. Features:
Low Insertion
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Temperature: -40°C – 85°C
2. Applications:
Tight and fine structure
High reliability and directivity
Non-sensitive wavelength
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength -
Fiber CleaverFiber Cleaver SKL-60C
₹2,500.00 Add to cart- Mode:SKL-60C
- Application: FTTH Project
- Weight: 420g
- Fiber Type: 2.0mm,3.0mm,0.9mm
- Product description: Skl-60c Fiber Optic Cleaver Optical fiber cold connection
-
Fiber CleaverFiber Cleaver S09
₹5,500.00 Add to cartName Optical Fiber Cleaver Fiber Cutter S09 Secondary Name Optical Fiber Cleaver Fiber Cutter S09 Code S09 Type Standard Category Network Accessories subcategory Fiber Optic Cleaver Cutter Price 5500 Unit PCS (PCS) In Stock Yes -
Fiber CleaverFiber Cleaver SKL-6C
₹2,500.00 Add to cartMaterial Metal Model Name/Number SKL-6C Brand Syrolink Size/Dimension 71.3*67.2*51 (mm) Weight With Battery 230 g Package includes SKL-6C Fiber Cleaver*1pcs Carrying Case *1pcs Cleaving Length 18mm Bare Fiber Diameter 125um Applicable Fiber 250 Micrometer fiber cable, 900 Micrometer fiber cable, 12-fibre ribbon, and fiber jumper cable Item Weight 225 g Product Dimensions 6.8 x 6 x 5 cm; 225 Grams Item model number SKL-6C Item Height 5 Centimeters Item Width 6 Centimeters -
Fiber ToolsFTTH Fiber Optical Tool Kit Bag
₹3,500.00 Add to cartFeature:
Use with Pre-Polished Fiber Optic Connectors
Cut down on overall fiber installation cost by reducing termination time
Field assembly, No polishing required
Fast and easy to terminate
Compact waterproof protection bag
Encourages safe handling of fiber off-cutsSpecifications:
FTTH tool bag High quality non-woven material Waterproof anti fouling Built in buffer pad FC-6S fiber clever Automatic rebound Slide with imported Guarantee cutting knife stability Fiber optic stripping tool Belt scale,fatigue resistance,pressure resistance.Strength type,Long life Fiber optic stripper 125um fiber coating layer for peeling.Top 1.98mm open hole stripping outer shield -
FTTHFTTH OPTICAL POWER METER (OPM)
₹1,500.00 Add to cartSpecifications- Fiber optic meter, range from -70 dBm to +3 dBm ± 5%.
- Compatible with FC / SC connectors.
- Wavelength range from 800 nm to 1700 nm.
- Automatic self-calibration function.
- 4 digit LCD display, backlit for night viewing.
- Optical power measurements in non-linear indicators (dBm) or in linear indicators (mW).
- Insertion loss measurements (“insertion loss”) in dB.
- Detector type: InGaAs.
- Automatic shutdown after 18 minutes of non-use.
- Operating time up to 48 hours. It works with 3 AA batteries.
- Gross Weight: 650 g
- Product size (width x depth x height): 19.0 x 4.8 x 10.0 cm
- Number of packages: 1
- Packages size: 21.2 x 10.8 x 5.0 cm
- Master-pack: 1
-
FTTHFTTH OPTICAL POWER METER (XC- 008)
₹2,000.00 Add to cartColour orange
Number of Memory Sticks 1
Batteries 1 Lithium-Ion batteries required. (included)
Item part number OPMVFLUTP
Power Source Battery Powered
Included Components Safety tag, usb charging cable, user guide.
Are batteries included? Yes
Lithium Battery Packaging Batteries contained in equipment.Specification MetCE
Measurement TypeBattery Tester
Connector: :-FC/UPC(Interchangeable SC,ST)
Calibration Wavelength:-: 850,1300,1310,1490,1550,1625nm
Measuring Range:-Ttype (-50 to + 25)
Red Light Source (VFL 5km)
Recharge :usb -

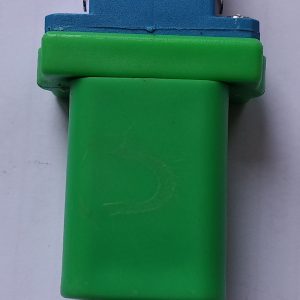

CATVFTTH TO FTTH 1310 SC/APC ADAPTER (GREEN)
₹6.00 Add to cartProduct Specification
Usage/Application Network Material Plastic Brand AETEL Number Of Pins 2 Color Green Country of Origin Made in India Minimum Order Quantity 50 Piece -
CATVFTTH TO FTTH SC/APC ADAPTER (BLUE)
₹6.00 Add to cartFiber Optic Adapter Features:
- Single-mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Available without flanges or with flange for duplex, saving panel space
- LC 8 Port high density for patch panel mount applications
- Meet JIS5974 and Bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS, CE and REACH.
Fiber Optic Adapter Application:
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Fiber Optic Adapter Parameter:
Product SC Adapter Mode S.M(Zroz) M.M(P.B) Insertion Loss ≤0.2dB ≤0.3dB Mating Durability(500 timer) Additional Loss≤0.1dB,Return Loss Variability<5dB Temperature Stability(-40℃～85℃) Additional Loss≤0.2dB,Return Loss Variability<5dB Operating Temperature -40℃～+85℃ Storage Temperature -40℃～+85℃ Features
- 5db SC Bulkhead Attenuator supports 1310nm
- Ceramic ferrules provide precise alignment
- Bulkhead design is compatible with standard industry connectors
- Used to attenuate Single mode fiber connectors/connections
Application
- FTTX
- Test and measurement
-
-
-
-
-
-
CATVNODE IC NXP BGY 812
₹450.00 Add to cartSpecifications
Product Attribute Attribute Value Product Category: RF Amplifier RoHS: Details SMD/SMT SOT-115 CATV Amplifiers Si 870 MHz 20 dB 24 V 410 mA Bulk Input Return Loss: 13 dB Number of Channels: 1 Channel Product Type: RF Amplifier -
-
-
-
CATVNODE IC NXP CGY 1047
₹900.00 Add to cartGeneral description
10W plastic LDMOS power transistor for base station applications at frequencies from 700 MHz to 2700 MHz.Features and benefits
■ High efficiency
■ Excellent ruggedness
■ Designed for broadband operation
■ Excellent thermal stability
■ High power gain
■ Integrated ESD protection
■ Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS)Applications
■ CDMA
■ W-CDMA
■ GSM EDGE
■ MC-GSM
■ LTE
■ WiMAX -
-
FTTHOPTICAL MULTI POWER METER SKL-C70B
₹1,600.00 Add to cartTechnica-l indicators
Measurement range: -70~+10dbm
Type of probe: InGaAs
Wavelength range: 800~1700nm
Standard wavelength (nm): 850/980/1300/1310/1490/1550/1625
Display resolution Linear display: 0.1%
Logarithmic display: 0.01dBm
Operating temperature (C):-10~+60
Automatic shutdown time (min):10 minutes
Continuous working time of battery: > 40 hours
Overall dimension (mm):130X75 X27
Power supply: 2 No.7 dry batteries or lithium batteries (optional)
Weight (g): 134G
Model suffix: 10MW/30MW
Output light power of red light source: > 10mW>30mW
Output wavelength of red light source: 650nm
Fiber optic adapter of red light source: SC/ST/FC
Battery life: > 13 hours > 10 hours
-
FTTHOPTICAL MULTI POWER METER TL -520
₹1,800.00 Add to cartMeasurement range dBm -70～+10 dBm -50～+26 dBm Wavelength range（nm） 800～1650 Calibrated wavelength 850nm、1300nm、1310nm、1490nm、1550nm、1625nm（other wavelength will be on request） Detector Inga As Accuracy <±3% （-10dBm、22℃） Resolution Linearity：0.1%，Non-linearity：0.01dBm Working temperature -10℃～+50℃ Storage temperature -20℃～+70℃ Relative humidity 90%（＋30℃）， connector Two types: 1. FC/PC connector; changeable FC/PC SC/PC( ST and LC as Optional) Power supply 3pcs AAA batteries DC power supply Optional accessory which require special order Support wide range power input work (AC 90-240) Working hours >120 hours（without backlight） Weight(g) 160g Dimension(mm) 130×63×29 -
CATVOPTICAL NODE WITH WDM ORH -1180 NW
₹1,300.00 Add to cartDetails:
Parameter Specification Product Name Catv Optical Receiver Agc FTTH Working Wavelength 1100 ~ 1600nm Connector Type Catv port: SC APC Inside Module AGC Highlight:ftth catv optical receiver
,
ftth catv receiver
Product Name:Catv Optical Receiver Agc FTTHApplication:FTTH FTTB FTTX NetworkReceiving Power:-1 ~ -20dbm(digital)Output Ports:1 OutputFiber Connector:SC, SC APC, LC, FCOutput Level:82dbuvWith Wdm:YESWorking Wavelength:1100 ~ 1600nmPower Supply:DC12VOEM:YES -
CATVOPTICAL PASSIVE NODE 3-WAY ORH-1203 (FTTH OPTICAL RECEIVER)
₹300.00 Add to cartRF Connector F-female Optical Return Loss >=45dB Optical Connector SC/APC Input Wavelength 1260-1600nm Responsivity >=0.9A/W Optical Fiber Type Single Mode Frequency Range 47-1000Mhz Additional Information
Item Code R3-3B-02 Delivery Time ONTIME -
CATVOPTICAL PASSIVE NODE 4-WAYS ORH- 1204 (FTTH OPTICAL RECEVIER)
₹350.00 Add to cartProduct Description
Product Description* Design for FTTH fiber to the home networks
*Without the power supply can work normally
* Zinc die cast housing, nickel plated
*Smaller size and easier installationRF Connector F-female Optical Return Loss >=45dB Optical Connector SC/APC Input Wavelength 1260-1600nm Responsivity >=0.9A/W Optical Fiber Type Single Mode Frequency Range 47-1000Mhz Additional Information
Item Code R3-3B-02 Delivery Time ONTIME -
-
-
FTTHOPTICAL POWER METER KPM-11M
₹2,000.00 Add to cartAccurate measurement, error less than 0.2dB
60 hours continuous use (only in optical power meter mode)
7 wavelengths (850/980/1300/1310/1490/1550/1625) nm
Back clip design, mini compact
Measuring range -70~+10dBm/-50~+26dBm
Universal interface design, adapt to SC, ST, FC interface
Optional lithium battery, USB charging, easy to use
Equipped with LED lights, it is more convenient to check
the line in the dark -
CATVPLC SPLITTERS
₹400.00 Add to cartFeature
- Excellent Uniformity
- High reliability, stability
- The quality is more credible and stable than fusion coupler splitter
- With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity
- Uniform Power Splitter
- Compact Design
- Wide Operating Wavelength
- Wide Operating Temperature
- Qualified Under Telcordia GR-1221 and GR-1209
Application
- Access Network,EPON,GPON or WDM-PON
- CATV system
- Optical communication systems
- Testing instruments
- FTTH, FTTB
-
CATVPLC SPLITTERS
₹360.00 Add to cartFEATURES :
STAINLESSS STEEL TUBE PACKAGE, SAVE INSTALLATION SPACE
SINGLE MODE SMF -28e, BEND IN SENSITIVE G657, A2 FIBER
1 OR 1.5 M OF FIBER LENGTH
LOW POLARIZATION DEPENDENT LOSS
EXCELLENT ENVIRONMENTAL STABILITY
APPLICATIONS:
CATV NETWORKS
LAN
CATV
PON
TELECOMMUNICATION SYSTEMS
-
FTTHPLC SPLITTERS COLOUR WITH CONNECTORS 1X8 PLC SPLITTER MODE
₹380.00 Add to cartFeatures:
Low insertion loss,high return lossFTTX networkslow PDLEnvironmental stable1*N Black box plc splitter are based on the Planar Waveguide Technology. They provide a cost effective and space saving networking solution,key components in FTTX networksApplication:Fiber to The Home (FTTH)Passive optical networks (PON)Local Area Networks (LAN)Cable Television (CATV) -
-
FTTHPOWER METER AUA – 70A
₹1,800.00 Add to cartItem specifics
ConditionTypeComputer Cable TesterMPNDoes not apply.BrandUnbrandedUPCDoes not apply.Features
– self calibration
– apply replaceable or rechargeable batteries
– more than 40 hours continuous working time
– Linear Display (mW) and Logarithmic display (dBm) show on the same screen
– support FC/SC/ST interface and quick switch
– Auto switch
– Backlight available
-
FTTHPOWER METER OPN & VFL
₹1,600.00 Add to cartWavelegth Range 1100-1600 nm Material Plastic Power Source 810nm Usage/Application Optical power measure Display Type Led Application Type Optical power measure Display Size 2 inch Number Of Selectable Wavelength 10 weavelength Fiber Type LSZH Minimum Order Quantity 1 Product Specification
Usage/Application Optical Networking Display Type Led Colour Orange Country of Origin Made in India -
-
FTTHSC APC UPC ORH-1000W CATV Fiber Optic Receiver Node with WDM
₹350.00 Add to cart2. PRODUCT FEATURE
1.No Power required
2.Work bandwidth 45~1050MHz
3.Output Level=68dBμV (Pin=-1dBm)
3. MAIN APPLICATION
CATV FTTH
Integration of three networks
FTTH PON
-
FTTHSC/APC FTTH SM FAST CONNECTOR (GREEN)
Read moreSC Fiber Optic Fast Connector Features:
- No epoxy and polishing required
- Quick and easy fiber termination
- Precision mechanical alignment insures low insertion loss
- Superior optical performance
- Streamlined component design, convenient operation
- Pre-installed, on-site assembly without end face grinding and consideration
- Uses proven, molded v-groove technologies
- Allow optical continuity to be verified by use of visual fault locator (VFL)
SC Fiber Optic Fast Connector Applications:
- Fiber optic communication system and telecommunication networks
- Fiber optic data transmission
- CATV
- Optical access
-
-
-
CATVSC/UPC-SC/UPC BLUE OPTICAL FAST CONNECTOR
₹35.00 Add to cartOptical Characteristics:
Category Specification Applicable for Drop cable Indoor cable Fiber mode Single-mode Polish Type APC, UPC Housing Blue PC Plastic Operation time S About 50 (no fiber cut) Insertion Loss dB ≤ 0.50 Insertion Loss Typical value dB ≤ 0.30 Return Loss dB ≥ 45.0 Fastening strength of naked fiber N ≥ 5 Tensile strength N ≥ 50 Reusable Time ≥ 10 times Operating Temperature ℃ -40～+85 On-line tensile strength(20N) dB ΔIL≤ 0.3 Mechanical durability(500 times) dB ΔIL≤ 0.3 Drop-off test (drop-off height4m,once per direction,totally 3 times)
dB ΔIL≤ 0.3 -
CATVSINGLE OPTICAL FIBER MECHANICAL L925B
₹35.00 Add to cartApplicable for φ 0.25 mm& φ 0.90 mmFiber Optical fiber diameter 125μ m ( 652 & 657 ) Tight buffer diameter 250μ m Fiber mode Single & multimode Operation time About 60s(No fiber cut) Average Insert loss ≤ 0.25dB(1310nm & 1550nm) Return loss ≤ -45dB Fastening strength of naked fiber > 5 N Fastening strength of naked fiber holder > 10 N Using temperature -40~+75°C Storage temperature -40~+80°C Specifications:
- 30 seconds installation time.
- Low insertion loss.
- Aerial, Buried, Underground, Pedestal.
Main Application:
- Single-mode and multimode fibers.
- Both Construction and maintenance.
- Aerial, buried, underground, pedestal.
- Insert or outside buildings.
- FTTx, Metro and Enterprise networks.
- Up to qo Gigabit data rates.
- High density substitute for connectors.
-
-
FTTHTHREE WINDOW COUPLER 1X2-50/50
₹200.00 Add to cart1. Features:
Low Insertion
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Temperature: -40°C – 85°C
2. Applications:
Tight and fine structure
High reliability and directivity
Non-sensitive wavelength
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength -
